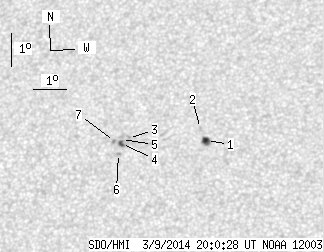

SDO HMI 2014-03-09 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.89 | 18.54 | 3.00 | 9.47 | 5.99 | 11.30 | -4.90 | 20.26 | 0.2456 | -17.3 | 37.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-09 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.07 | 6.41 | 2.07 | 3.27 | 5.98 | 12.78 | -3.42 | 14.55 | 0.2371 | -1065.6 | -794.2 | |
| 0.00 | 1.47 | 0.00 | 0.75 | 6.35 | 12.59 | -3.60 | 14.89 | 0.2440 | -639.0 | -513.0 | |
| 0.00 | 2.77 | 0.00 | 1.42 | 6.07 | 10.43 | -5.76 | 23.50 | 0.2515 | -508.0 | -362.2 | |
| 1.82 | 3.12 | 0.93 | 1.59 | 5.92 | 10.22 | -5.97 | 24.50 | 0.2506 | 1053.5 | 819.4 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 6.04 | 10.22 | -5.97 | 24.30 | 0.2525 | 253.0 | 287.9 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 5.61 | 10.14 | -6.06 | 25.34 | 0.2465 | 1155.0 | 872.1 | |
| 0.00 | 1.65 | 0.00 | 0.84 | 5.98 | 10.01 | -6.18 | 25.15 | 0.2531 | 827.0 | 737.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
