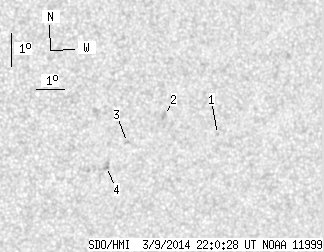

SDO HMI 2014-03-09 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.09 | 0.00 | 5.22 | -16.16 | 44.71 | 29.61 | 250.16 | 0.5066 | -18.8 | -28.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-09 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.66 | -15.80 | 47.29 | 32.20 | 251.91 | 0.5415 | 611.0 | 479.1 | |
| 0.00 | 3.20 | 0.00 | 1.85 | -15.35 | 45.30 | 30.20 | 252.01 | 0.5121 | 736.0 | 653.9 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -16.24 | 44.12 | 29.03 | 249.79 | 0.4985 | -596.0 | -427.3 | |
| 0.00 | 3.46 | 0.00 | 1.97 | -17.00 | 43.50 | 28.41 | 247.98 | 0.4927 | -826.0 | -687.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
