SDO HMI 2014-03-09 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.32 | 22.87 | 3.22 | 11.66 | 6.02 | 11.04 | -4.05 | 16.96 | 0.2416 | 131.3 | 104.8 | |
|
previous
or next observation for the same group /

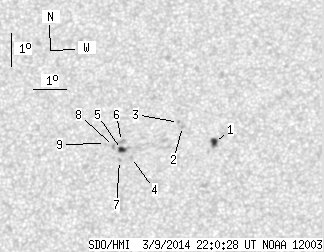

back to the solar disc SDO HMI 2014-03-09 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.38 | 5.20 | 1.72 | 2.65 | 6.06 | 12.99 | -2.10 | 9.01 | 0.2340 | -1093.0 | -828.5 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 6.55 | 12.03 | -3.06 | 12.56 | 0.2453 | -921.0 | -684.3 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 6.68 | 11.91 | -3.18 | 12.92 | 0.2478 | -642.0 | -584.8 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 5.62 | 10.50 | -4.59 | 19.70 | 0.2372 | 936.0 | 569.2 | |
| 2.94 | 5.80 | 1.50 | 2.96 | 5.87 | 10.20 | -4.89 | 20.53 | 0.2429 | 958.5 | 656.7 | |
| 0.00 | 3.46 | 0.00 | 1.77 | 6.11 | 10.20 | -4.89 | 20.18 | 0.2468 | -101.0 | -107.5 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 5.53 | 10.14 | -4.95 | 21.25 | 0.2379 | 1008.0 | 836.5 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 5.96 | 9.96 | -5.13 | 21.31 | 0.2459 | 805.0 | 640.6 | |
| 0.00 | 0.61 | 0.00 | 0.31 | 6.06 | 9.72 | -5.37 | 22.07 | 0.2489 | 699.0 | 486.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
