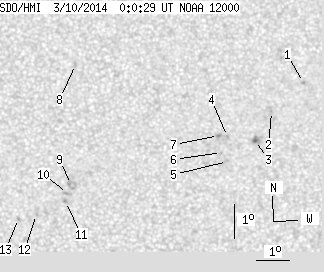

SDO HMI 2014-03-10 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.69 | 29.04 | 0.34 | 14.45 | -11.43 | 12.69 | -1.30 | 170.63 | 0.0910 | 261.5 | -40.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-10 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.69 | -9.15 | 17.55 | 3.56 | 241.44 | 0.0701 | 935.0 | 750.8 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -10.02 | 16.59 | 2.60 | 222.68 | 0.0661 | 737.0 | 593.7 | |
| 0.69 | 5.46 | 0.34 | 2.71 | -10.88 | 16.11 | 2.12 | 209.78 | 0.0734 | 1177.4 | 842.5 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -10.76 | 15.26 | 1.27 | 199.53 | 0.0654 | 822.0 | 588.2 | |
| 0.00 | 0.35 | 0.00 | 0.17 | -11.51 | 15.26 | 1.27 | 196.31 | 0.0778 | 804.0 | 611.2 | |
| 0.00 | 0.87 | 0.00 | 0.43 | -11.24 | 15.08 | 1.09 | 194.98 | 0.0724 | 758.0 | 596.1 | |
| 0.00 | 1.91 | 0.00 | 0.95 | -10.74 | 14.99 | 1.00 | 195.70 | 0.0635 | 998.0 | 790.0 | |
| 0.00 | 1.82 | 0.00 | 0.90 | -8.60 | 10.68 | -3.31 | 112.67 | 0.0622 | 944.0 | 701.5 | |
| 0.00 | 7.45 | 0.00 | 3.71 | -12.18 | 10.51 | -3.48 | 145.48 | 0.1051 | -506.0 | -761.7 | |
| 0.00 | 3.47 | 0.00 | 1.73 | -12.45 | 10.39 | -3.60 | 145.96 | 0.1101 | -1062.0 | -737.7 | |
| 0.00 | 1.47 | 0.00 | 0.73 | -12.69 | 10.32 | -3.67 | 146.70 | 0.1142 | -921.0 | -805.9 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -13.07 | 9.43 | -4.56 | 142.71 | 0.1285 | -771.0 | -641.3 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -13.18 | 8.88 | -5.12 | 140.09 | 0.1359 | -827.0 | -656.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
