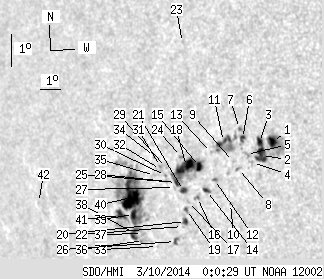

SDO HMI 2014-03-10 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.02 | 320.30 | 81.53 | 253.46 | -18.56 | 322.49 | -51.50 | 108.02 | 0.7816 | -136.8 | -161.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-10 00:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.72 | 51.72 | 4.11 | 37.31 | -17.75 | 327.49 | -46.50 | 107.64 | 0.7272 | 998.3 | 489.7 | |
| 9.79 | -1.00 | 7.12 | -1.00 | -18.09 | 326.87 | -47.12 | 108.01 | 0.7348 | 716.7 | 999999 | |
| 4.16 | -1.00 | 3.02 | -1.00 | -17.70 | 326.92 | -47.07 | 107.48 | 0.7337 | 750.8 | 999999 | |
| 0.00 | 1.56 | 0.00 | 1.14 | -18.26 | 326.39 | -47.60 | 108.16 | 0.7404 | 384.0 | 272.3 | |
| 0.00 | 3.73 | 0.00 | 2.74 | -18.00 | 326.21 | -47.79 | 107.78 | 0.7421 | 357.0 | 262.8 | |
| 1.99 | 4.85 | 1.47 | 3.57 | -17.51 | 326.19 | -47.80 | 107.12 | 0.7415 | 660.8 | 370.5 | |
| 0.35 | 1.30 | 0.25 | 0.96 | -17.20 | 326.16 | -47.83 | 106.70 | 0.7415 | 652.2 | 589.2 | |
| 0.00 | 1.82 | 0.00 | 1.35 | -18.38 | 325.69 | -48.30 | 108.22 | 0.7483 | -772.0 | -621.7 | |
| 0.00 | 1.56 | 0.00 | 1.16 | -18.15 | 325.54 | -48.45 | 107.89 | 0.7496 | -486.0 | -378.3 | |
| 0.00 | 0.78 | 0.00 | 0.59 | -19.39 | 324.91 | -49.08 | 109.43 | 0.7582 | 349.0 | 307.3 | |
| 5.54 | 23.48 | 4.15 | 17.53 | -17.52 | 325.30 | -48.70 | 107.01 | 0.7515 | 346.3 | -153.0 | |
| 0.52 | 1.73 | 0.40 | 1.32 | -18.61 | 324.45 | -49.54 | 108.33 | 0.7620 | -784.2 | -665.4 | |
| 0.00 | 0.87 | 0.00 | 0.66 | -17.79 | 324.62 | -49.37 | 107.29 | 0.7591 | -226.0 | -135.4 | |
| 1.91 | 3.64 | 1.47 | 2.80 | -18.90 | 323.94 | -50.05 | 108.64 | 0.7678 | -709.3 | -547.5 | |
| 3.29 | 52.67 | 2.53 | 41.08 | -18.15 | 323.89 | -50.10 | 107.67 | 0.7673 | -773.5 | -216.9 | |
| 0.35 | 2.86 | 0.27 | 2.22 | -19.07 | 323.42 | -50.57 | 108.78 | 0.7734 | -720.2 | -526.2 | |
| 0.00 | 1.47 | 0.00 | 1.16 | -19.14 | 322.94 | -51.05 | 108.82 | 0.7785 | -701.0 | -615.2 | |
| 15.25 | -15.00 | 11.88 | -15.00 | -18.10 | 323.28 | -50.71 | 107.51 | 0.7738 | 592.7 | 999999 | |
| 0.78 | 2.43 | 0.62 | 1.91 | -19.37 | 322.74 | -51.25 | 109.08 | 0.7809 | -692.2 | -523.6 | |
| 2.34 | 4.24 | 1.86 | 3.37 | -19.72 | 322.53 | -51.46 | 109.50 | 0.7834 | -553.3 | -343.6 | |
| 2.77 | -15.00 | 2.18 | -15.00 | -18.79 | 322.84 | -51.15 | 108.36 | 0.7791 | -726.2 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.76 | -19.86 | 322.31 | -51.68 | 109.64 | 0.7858 | -240.0 | -259.7 | |
| 0.00 | 0.78 | 0.00 | 0.59 | -14.41 | 324.38 | -49.61 | 102.80 | 0.7588 | 450.0 | 413.2 | |
| 0.00 | 2.08 | 0.00 | 1.62 | -17.78 | 323.16 | -50.84 | 107.09 | 0.7747 | 442.0 | 373.2 | |
| 2.08 | -15.00 | 1.64 | -15.00 | -18.52 | 322.60 | -51.39 | 107.98 | 0.7813 | -437.0 | 999999 | |
| 1.65 | 3.29 | 1.33 | 2.65 | -20.27 | 321.76 | -52.24 | 110.09 | 0.7919 | 544.1 | 408.9 | |
| 0.00 | 1.39 | 0.00 | 1.10 | -18.66 | 322.44 | -51.55 | 108.14 | 0.7831 | -26.0 | 77.1 | |
| 0.00 | 1.13 | 0.00 | 0.90 | -18.45 | 322.12 | -51.87 | 107.83 | 0.7861 | 461.0 | 363.2 | |
| 0.00 | 0.69 | 0.00 | 0.55 | -18.03 | 322.30 | -51.69 | 107.32 | 0.7839 | 263.0 | 175.0 | |
| 0.00 | 1.04 | 0.00 | 0.83 | -18.26 | 322.15 | -51.84 | 107.60 | 0.7856 | 233.0 | 170.4 | |
| 0.00 | 0.78 | 0.00 | 0.62 | -17.97 | 322.02 | -51.97 | 107.22 | 0.7867 | 98.0 | 152.8 | |
| 0.00 | 1.91 | 0.00 | 1.52 | -18.06 | 321.98 | -52.01 | 107.32 | 0.7872 | -304.0 | -129.6 | |
| 0.00 | 0.61 | 0.00 | 0.50 | -20.33 | 320.78 | -53.21 | 110.03 | 0.8016 | -477.0 | -382.1 | |
| 0.00 | 1.13 | 0.00 | 0.90 | -17.65 | 321.84 | -52.15 | 106.79 | 0.7882 | 273.0 | 251.7 | |
| 0.00 | 1.56 | 0.00 | 1.26 | -18.21 | 321.61 | -52.38 | 107.47 | 0.7911 | -304.0 | -247.2 | |
| 0.00 | 3.03 | 0.00 | 2.53 | -20.08 | 320.15 | -53.84 | 109.64 | 0.8074 | -340.0 | -370.9 | |
| 0.00 | 2.08 | 0.00 | 1.73 | -19.87 | 320.20 | -53.79 | 109.39 | 0.8067 | -359.0 | -317.8 | |
| 5.20 | 121.63 | 4.37 | 101.27 | -19.83 | 319.79 | -54.20 | 109.29 | 0.8106 | -458.0 | -412.5 | |
| 4.68 | -38.00 | 3.91 | -38.00 | -19.26 | 320.02 | -53.97 | 108.61 | 0.8079 | -798.5 | 999999 | |
| 28.67 | -38.00 | 23.88 | -38.00 | -18.75 | 320.16 | -53.84 | 107.99 | 0.8060 | -832.4 | 999999 | |
| 5.98 | 14.64 | 5.07 | 12.44 | -19.22 | 319.33 | -54.66 | 108.50 | 0.8144 | -408.2 | -16.0 | |
| 0.00 | 0.87 | 0.00 | 0.82 | -18.37 | 315.03 | -58.96 | 107.15 | 0.8531 | -276.0 | -248.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
