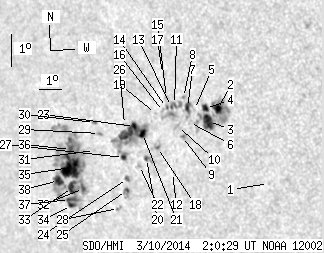

SDO HMI 2014-03-10 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.47 | 355.57 | 68.98 | 275.61 | -18.58 | 322.49 | -50.40 | 108.19 | 0.7701 | -210.7 | -113.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-10 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.60 | -20.14 | 329.00 | -43.89 | 111.48 | 0.7018 | 516.0 | 385.9 | |
| 5.03 | 59.97 | 3.54 | 42.46 | -17.73 | 327.56 | -45.33 | 107.81 | 0.7139 | 1012.8 | 494.8 | |
| 10.92 | -2.00 | 7.77 | -2.00 | -18.05 | 327.05 | -45.84 | 108.17 | 0.7203 | 718.2 | 999999 | |
| 3.29 | -2.00 | 2.34 | -2.00 | -17.66 | 327.05 | -45.85 | 107.62 | 0.7197 | 657.6 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -17.64 | 326.55 | -46.34 | 107.52 | 0.7253 | 574.0 | 506.4 | |
| 0.00 | 1.39 | 0.00 | 1.00 | -18.01 | 326.20 | -46.69 | 107.97 | 0.7298 | 307.0 | 242.2 | |
| 3.12 | 8.67 | 2.25 | 6.24 | -17.55 | 326.26 | -46.63 | 107.35 | 0.7285 | 630.2 | 369.2 | |
| 0.00 | 0.95 | 0.00 | 0.69 | -17.24 | 326.19 | -46.71 | 106.91 | 0.7289 | 683.0 | 643.0 | |
| 0.00 | 1.65 | 0.00 | 1.20 | -18.40 | 325.74 | -47.15 | 108.42 | 0.7356 | -841.0 | -712.1 | |
| 0.00 | 4.33 | 0.00 | 3.16 | -18.08 | 325.62 | -47.27 | 107.97 | 0.7364 | -348.0 | -266.7 | |
| 0.95 | 16.21 | 0.69 | 11.82 | -17.41 | 325.72 | -47.18 | 107.08 | 0.7345 | 641.3 | 78.4 | |
| 0.00 | 0.35 | 0.00 | 0.26 | -19.43 | 324.88 | -48.01 | 109.66 | 0.7467 | 266.0 | 308.8 | |
| 0.69 | -11.00 | 0.51 | -11.00 | -17.46 | 325.56 | -47.33 | 107.12 | 0.7363 | 591.2 | 999999 | |
| 0.52 | 1.47 | 0.38 | 1.08 | -17.47 | 325.33 | -47.57 | 107.10 | 0.7389 | 525.8 | 407.7 | |
| 0.00 | 1.30 | 0.00 | 0.95 | -17.17 | 325.43 | -47.46 | 106.71 | 0.7374 | 468.0 | 412.8 | |
| 0.00 | 0.87 | 0.00 | 0.64 | -17.58 | 325.15 | -47.74 | 107.22 | 0.7410 | -127.0 | 73.0 | |
| 0.00 | 0.69 | 0.00 | 0.51 | -16.44 | 325.49 | -47.41 | 105.73 | 0.7359 | 494.0 | 538.2 | |
| 0.69 | 3.29 | 0.52 | 2.45 | -18.62 | 324.48 | -48.41 | 108.52 | 0.7498 | -680.2 | -434.9 | |
| 0.00 | 0.61 | 0.00 | 0.45 | -17.60 | 324.77 | -48.13 | 107.20 | 0.7453 | 483.0 | 385.1 | |
| 1.04 | 4.85 | 0.79 | 3.66 | -18.90 | 323.85 | -49.05 | 108.79 | 0.7571 | -749.6 | -618.5 | |
| 4.42 | 58.23 | 3.32 | 44.37 | -18.14 | 323.95 | -48.94 | 107.80 | 0.7549 | -843.4 | -46.3 | |
| 0.00 | 1.56 | 0.00 | 1.19 | -19.08 | 323.43 | -49.46 | 108.96 | 0.7617 | -656.0 | -584.2 | |
| 2.69 | -21.00 | 2.03 | -21.00 | -17.90 | 323.66 | -49.24 | 107.44 | 0.7578 | 500.1 | 999999 | |
| 1.30 | 2.69 | 1.00 | 2.08 | -19.41 | 322.71 | -50.19 | 109.29 | 0.7699 | -685.2 | -505.4 | |
| 1.47 | 6.33 | 1.14 | 4.92 | -19.77 | 322.50 | -50.39 | 109.71 | 0.7724 | -596.8 | -416.8 | |
| 0.00 | 1.30 | 0.00 | 0.99 | -17.80 | 323.21 | -49.68 | 107.25 | 0.7625 | 435.0 | 381.8 | |
| 1.99 | -21.00 | 1.54 | -21.00 | -18.77 | 322.78 | -50.12 | 108.47 | 0.7683 | -639.4 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.91 | -20.27 | 321.88 | -51.02 | 110.26 | 0.7796 | 666.0 | 579.9 | |
| 0.00 | 1.82 | 0.00 | 1.42 | -17.95 | 321.92 | -50.97 | 107.30 | 0.7763 | 299.0 | 164.0 | |
| 0.00 | 1.99 | 0.00 | 1.56 | -17.60 | 321.81 | -51.08 | 106.83 | 0.7771 | 394.0 | 272.5 | |
| 0.00 | 1.30 | 0.00 | 1.03 | -18.43 | 321.47 | -51.42 | 107.86 | 0.7815 | -232.0 | -233.7 | |
| 2.77 | 169.76 | 2.25 | 138.47 | -19.50 | 320.43 | -52.46 | 109.09 | 0.7933 | -756.0 | -364.0 | |
| 7.02 | -32.00 | 5.75 | -32.00 | -19.42 | 319.89 | -53.00 | 108.92 | 0.7985 | -732.3 | 999999 | |
| 2.17 | -32.00 | 1.79 | -32.00 | -19.95 | 319.58 | -53.31 | 109.55 | 0.8021 | -494.4 | 999999 | |
| 26.69 | -32.00 | 21.74 | -32.00 | -18.82 | 320.06 | -52.83 | 108.19 | 0.7962 | -861.0 | 999999 | |
| 3.47 | -32.00 | 2.81 | -32.00 | -18.28 | 320.30 | -52.59 | 107.54 | 0.7933 | -733.2 | 999999 | |
| 1.82 | -32.00 | 1.50 | -32.00 | -19.76 | 319.57 | -53.32 | 109.31 | 0.8020 | -435.6 | 999999 | |
| 6.41 | -32.00 | 5.32 | -32.00 | -19.14 | 319.28 | -53.61 | 108.51 | 0.8042 | -374.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
