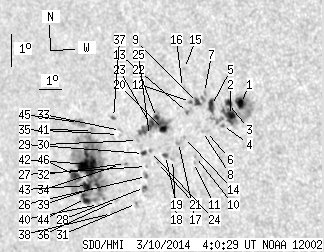

SDO HMI 2014-03-10 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.85 | 338.49 | 72.81 | 257.74 | -18.61 | 322.27 | -49.52 | 108.37 | 0.7608 | -201.7 | -157.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-10 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.54 | 69.61 | 5.21 | 48.45 | -17.68 | 327.66 | -44.14 | 107.96 | 0.6998 | 1038.4 | 483.8 | |
| 10.40 | -1.00 | 7.26 | -1.00 | -18.00 | 327.12 | -44.68 | 108.31 | 0.7067 | 766.9 | 999999 | |
| 3.29 | -1.00 | 2.29 | -1.00 | -17.64 | 327.15 | -44.65 | 107.80 | 0.7058 | 750.3 | 999999 | |
| 0.35 | 1.30 | 0.24 | 0.91 | -18.27 | 326.67 | -45.12 | 108.60 | 0.7123 | 425.2 | 294.0 | |
| 4.77 | -1.00 | 3.36 | -1.00 | -17.63 | 326.39 | -45.40 | 107.66 | 0.7145 | 679.5 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.36 | -18.39 | 325.91 | -45.88 | 108.63 | 0.7213 | -695.0 | -519.2 | |
| 0.00 | 1.65 | 0.00 | 1.16 | -17.22 | 326.21 | -45.58 | 107.06 | 0.7160 | 614.0 | 562.8 | |
| 0.00 | 0.87 | 0.00 | 0.62 | -18.37 | 325.74 | -46.06 | 108.57 | 0.7232 | -722.0 | -648.2 | |
| 2.60 | 6.93 | 1.85 | 4.93 | -17.49 | 325.81 | -45.98 | 107.37 | 0.7210 | 654.8 | 529.8 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -19.09 | 325.16 | -46.64 | 109.45 | 0.7309 | 374.0 | 322.0 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -19.26 | 325.00 | -46.79 | 109.65 | 0.7330 | 268.0 | 325.0 | |
| 0.35 | 1.56 | 0.25 | 1.12 | -17.43 | 325.51 | -46.28 | 107.24 | 0.7244 | 546.0 | 420.7 | |
| 0.43 | 2.77 | 0.31 | 1.99 | -17.75 | 325.27 | -46.53 | 107.64 | 0.7276 | 374.4 | -18.2 | |
| 0.00 | 1.30 | 0.00 | 0.94 | -18.48 | 324.88 | -46.92 | 108.57 | 0.7331 | -518.0 | -401.3 | |
| 0.00 | 1.30 | 0.00 | 0.93 | -16.43 | 325.57 | -46.23 | 105.86 | 0.7224 | 612.0 | 495.4 | |
| 0.00 | 0.35 | 0.00 | 0.25 | -16.98 | 325.30 | -46.50 | 106.59 | 0.7262 | 409.0 | 456.2 | |
| 0.00 | 2.34 | 0.00 | 1.71 | -18.60 | 324.55 | -47.24 | 108.68 | 0.7369 | -539.0 | -516.9 | |
| 0.00 | 1.30 | 0.00 | 0.96 | -19.09 | 324.09 | -47.71 | 109.25 | 0.7428 | -830.0 | -668.6 | |
| 1.21 | 2.69 | 0.90 | 1.99 | -18.94 | 323.82 | -47.98 | 109.01 | 0.7456 | -690.9 | -546.5 | |
| 4.16 | 37.45 | 3.06 | 27.72 | -18.15 | 324.02 | -47.78 | 107.99 | 0.7422 | -889.6 | 15.9 | |
| 0.00 | 0.78 | 0.00 | 0.58 | -19.11 | 323.37 | -48.43 | 109.17 | 0.7507 | -727.0 | -624.4 | |
| 2.34 | -20.00 | 1.73 | -20.00 | -17.77 | 323.83 | -47.97 | 107.45 | 0.7438 | 670.7 | 999999 | |
| 3.99 | -20.00 | 2.96 | -20.00 | -17.95 | 323.48 | -48.32 | 107.64 | 0.7479 | 590.9 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.71 | -18.76 | 323.18 | -48.62 | 108.67 | 0.7523 | -603.0 | -521.9 | |
| 0.00 | 1.65 | 0.00 | 1.23 | -18.27 | 323.31 | -48.48 | 108.05 | 0.7501 | -86.0 | -3.3 | |
| 0.69 | 2.86 | 0.53 | 2.17 | -19.48 | 322.69 | -49.11 | 109.55 | 0.7585 | -622.0 | -520.5 | |
| 0.00 | 0.95 | 0.00 | 0.72 | -19.18 | 322.81 | -48.98 | 109.18 | 0.7568 | -606.0 | -539.3 | |
| 0.95 | 3.29 | 0.73 | 2.51 | -19.80 | 322.46 | -49.34 | 109.93 | 0.7615 | -616.0 | -446.8 | |
| 1.56 | 2.95 | 1.18 | 2.22 | -18.78 | 322.83 | -48.97 | 108.65 | 0.7561 | -715.8 | -559.9 | |
| 0.00 | 1.04 | 0.00 | 0.79 | -18.37 | 322.70 | -49.10 | 108.09 | 0.7569 | -82.0 | -135.0 | |
| 0.00 | 1.82 | 0.00 | 1.40 | -20.24 | 321.88 | -49.92 | 110.41 | 0.7683 | 590.0 | 513.5 | |
| 0.00 | 1.21 | 0.00 | 0.93 | -19.00 | 321.86 | -49.93 | 108.80 | 0.7667 | 291.0 | 304.7 | |
| 0.00 | 1.47 | 0.00 | 1.13 | -18.00 | 322.02 | -49.78 | 107.51 | 0.7637 | 450.0 | 295.9 | |
| 0.00 | 0.78 | 0.00 | 0.60 | -19.01 | 321.61 | -50.18 | 108.77 | 0.7693 | -289.0 | -189.6 | |
| 0.00 | 0.35 | 0.00 | 0.27 | -18.11 | 321.88 | -49.92 | 107.63 | 0.7654 | 166.0 | 169.0 | |
| 0.00 | 1.47 | 0.00 | 1.16 | -20.06 | 320.96 | -50.84 | 110.03 | 0.7775 | -244.0 | -225.5 | |
| 0.69 | 1.73 | 0.53 | 1.33 | -17.58 | 321.84 | -49.96 | 106.94 | 0.7652 | 397.1 | 309.5 | |
| 0.00 | 0.78 | 0.00 | 0.62 | -20.43 | 320.53 | -51.26 | 110.43 | 0.7823 | -619.0 | -546.6 | |
| 2.60 | 166.87 | 2.07 | 133.17 | -19.56 | 320.27 | -51.53 | 109.29 | 0.7839 | -957.4 | -406.2 | |
| 0.00 | 0.78 | 0.00 | 0.62 | -20.10 | 320.02 | -51.77 | 109.94 | 0.7871 | -473.0 | -426.1 | |
| 0.00 | 2.69 | 0.00 | 2.11 | -17.87 | 320.69 | -51.11 | 107.18 | 0.7777 | -379.0 | -438.7 | |
| 30.25 | -39.00 | 24.09 | -39.00 | -18.86 | 320.07 | -51.73 | 108.38 | 0.7851 | -901.7 | 999999 | |
| 6.76 | -39.00 | 5.43 | -39.00 | -19.48 | 319.74 | -52.06 | 109.12 | 0.7891 | -740.0 | 999999 | |
| 6.07 | -39.00 | 4.90 | -39.00 | -19.86 | 319.46 | -52.33 | 109.56 | 0.7924 | -551.9 | 999999 | |
| 0.00 | 9.36 | 0.00 | 7.43 | -17.57 | 320.11 | -51.69 | 106.73 | 0.7834 | -564.0 | -381.6 | |
| 4.85 | -39.00 | 3.93 | -39.00 | -19.13 | 319.28 | -52.52 | 108.61 | 0.7934 | -446.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
