SDO HMI 2014-03-10 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.09 | 44.63 | 6.66 | 22.71 | 5.98 | 11.26 | -0.54 | 2.42 | 0.2312 | 162.6 | -10.2 | |
|
previous
or next observation for the same group /

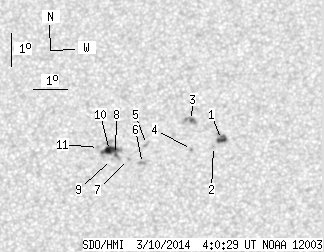

back to the solar disc SDO HMI 2014-03-10 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.99 | 7.80 | 2.03 | 3.97 | 6.15 | 13.42 | 1.63 | 353.05 | 0.2344 | -1119.4 | -795.4 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 5.94 | 13.18 | 1.39 | 353.97 | 0.2303 | -920.0 | -804.3 | |
| 0.87 | 6.41 | 0.44 | 3.27 | 6.73 | 12.53 | 0.73 | 357.00 | 0.2430 | -1093.8 | -869.3 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 5.84 | 12.53 | 0.73 | 356.80 | 0.2278 | -753.0 | -594.5 | |
| 0.00 | 2.43 | 0.00 | 1.24 | 6.00 | 11.18 | -0.62 | 2.68 | 0.2304 | -610.0 | -387.7 | |
| 0.00 | 2.69 | 0.00 | 1.36 | 5.42 | 11.06 | -0.74 | 3.34 | 0.2206 | 1072.0 | 866.8 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 5.54 | 10.64 | -1.16 | 5.18 | 0.2232 | 692.0 | 555.5 | |
| 0.43 | 20.02 | 0.22 | 10.19 | 5.70 | 10.25 | -1.55 | 6.83 | 0.2265 | 1121.4 | 469.1 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 5.54 | 10.13 | -1.66 | 7.44 | 0.2242 | 735.0 | 671.3 | |
| 7.80 | -8.00 | 3.97 | -8.00 | 5.82 | 10.07 | -1.72 | 7.55 | 0.2290 | 1050.8 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 5.91 | 9.74 | -2.05 | 8.91 | 0.2314 | 638.0 | 491.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
