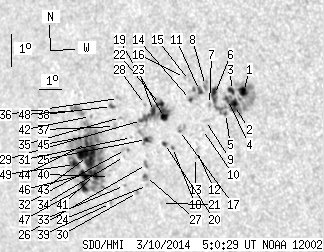

SDO HMI 2014-03-10 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.52 | 373.90 | 75.04 | 280.95 | -18.60 | 322.41 | -48.84 | 108.45 | 0.7535 | -194.9 | -132.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-10 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.98 | 80.54 | 4.10 | 55.53 | -17.67 | 327.72 | -43.53 | 108.06 | 0.6926 | 1075.2 | 494.6 | |
| 6.94 | -1.00 | 4.79 | -1.00 | -18.06 | 327.21 | -44.04 | 108.51 | 0.6993 | 795.5 | 999999 | |
| 2.77 | -1.00 | 1.91 | -1.00 | -17.60 | 327.22 | -44.03 | 107.86 | 0.6984 | 797.3 | 999999 | |
| 1.91 | -1.00 | 1.32 | -1.00 | -17.85 | 326.97 | -44.28 | 108.18 | 0.7018 | 713.2 | 999999 | |
| 0.61 | -1.00 | 0.42 | -1.00 | -18.26 | 326.75 | -44.50 | 108.71 | 0.7051 | 532.4 | 999999 | |
| 6.16 | -1.00 | 4.30 | -1.00 | -17.65 | 326.46 | -44.79 | 107.80 | 0.7074 | 642.2 | 999999 | |
| 0.00 | 1.56 | 0.00 | 1.10 | -17.93 | 326.15 | -45.10 | 108.14 | 0.7115 | 222.0 | 45.7 | |
| 0.00 | 4.59 | 0.00 | 3.22 | -17.35 | 326.16 | -45.09 | 107.33 | 0.7105 | 720.0 | 587.4 | |
| 0.00 | 1.73 | 0.00 | 1.23 | -18.40 | 325.81 | -45.44 | 108.72 | 0.7162 | -761.0 | -597.3 | |
| 0.00 | 1.04 | 0.00 | 0.74 | -18.65 | 325.59 | -45.66 | 109.04 | 0.7192 | 260.0 | 148.1 | |
| 2.25 | 12.14 | 1.59 | 8.59 | -17.48 | 325.85 | -45.40 | 107.45 | 0.7143 | 667.7 | 173.8 | |
| 0.00 | 0.78 | 0.00 | 0.56 | -19.26 | 325.10 | -46.15 | 109.77 | 0.7258 | 514.0 | 388.4 | |
| 0.00 | 0.95 | 0.00 | 0.69 | -19.46 | 324.98 | -46.27 | 110.03 | 0.7275 | 363.0 | 287.9 | |
| 1.04 | -11.00 | 0.74 | -11.00 | -17.71 | 325.37 | -45.88 | 107.70 | 0.7202 | 261.1 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.55 | -17.14 | 325.51 | -45.74 | 106.93 | 0.7177 | 387.0 | 417.0 | |
| 0.00 | 1.39 | 0.00 | 0.99 | -17.03 | 325.32 | -45.93 | 106.75 | 0.7197 | 497.0 | 466.2 | |
| 0.35 | 4.25 | 0.25 | 3.06 | -18.59 | 324.56 | -46.69 | 108.77 | 0.7307 | -628.2 | -389.7 | |
| 0.43 | 1.21 | 0.32 | 0.89 | -19.07 | 324.06 | -47.19 | 109.33 | 0.7371 | -661.0 | -606.2 | |
| 3.64 | 41.79 | 2.65 | 30.62 | -18.14 | 324.03 | -47.22 | 108.07 | 0.7360 | -948.8 | -67.8 | |
| 1.30 | 2.51 | 0.95 | 1.85 | -18.92 | 323.75 | -47.50 | 109.07 | 0.7403 | -667.9 | -555.2 | |
| 0.00 | 0.78 | 0.00 | 0.58 | -20.70 | 322.89 | -48.36 | 111.28 | 0.7526 | -446.0 | -348.6 | |
| 3.03 | -19.00 | 2.21 | -19.00 | -17.74 | 323.99 | -47.26 | 107.52 | 0.7359 | 507.7 | 999999 | |
| 3.64 | -19.00 | 2.67 | -19.00 | -17.92 | 323.60 | -47.65 | 107.70 | 0.7405 | 434.2 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.91 | -20.10 | 322.47 | -48.78 | 110.42 | 0.7561 | -537.0 | -425.9 | |
| 1.91 | 9.80 | 1.42 | 7.29 | -18.72 | 322.97 | -48.28 | 108.68 | 0.7485 | -843.8 | -581.3 | |
| 0.69 | 2.60 | 0.52 | 1.95 | -19.47 | 322.68 | -48.57 | 109.62 | 0.7528 | -622.8 | -525.2 | |
| 1.13 | 3.73 | 0.85 | 2.81 | -19.82 | 322.49 | -48.77 | 110.06 | 0.7554 | -596.6 | -442.9 | |
| 0.00 | 1.13 | 0.00 | 0.83 | -17.68 | 323.31 | -47.94 | 107.33 | 0.7433 | 335.0 | 293.7 | |
| 1.21 | -19.00 | 0.90 | -19.00 | -18.14 | 322.96 | -48.29 | 107.90 | 0.7479 | 520.0 | 999999 | |
| 0.00 | 1.65 | 0.00 | 1.26 | -20.27 | 321.91 | -49.34 | 110.54 | 0.7623 | 646.0 | 498.3 | |
| 0.00 | 0.78 | 0.00 | 0.59 | -18.60 | 322.30 | -48.95 | 108.42 | 0.7556 | 441.0 | 335.7 | |
| 0.00 | 3.03 | 0.00 | 2.31 | -18.93 | 321.88 | -49.37 | 108.79 | 0.7606 | 57.0 | 22.4 | |
| 0.00 | 0.87 | 0.00 | 0.67 | -20.00 | 321.38 | -49.87 | 110.10 | 0.7673 | 479.0 | 337.4 | |
| 0.00 | 0.69 | 0.00 | 0.53 | -19.14 | 321.75 | -49.50 | 109.03 | 0.7623 | 233.0 | 247.4 | |
| 0.00 | 0.69 | 0.00 | 0.52 | -17.96 | 322.02 | -49.23 | 107.53 | 0.7578 | 373.0 | 286.0 | |
| 0.00 | 2.34 | 0.00 | 1.76 | -17.39 | 322.14 | -49.11 | 106.79 | 0.7559 | 537.0 | 390.0 | |
| 0.00 | 3.12 | 0.00 | 2.38 | -18.20 | 321.64 | -49.61 | 107.79 | 0.7622 | -141.0 | -164.3 | |
| 1.21 | 2.77 | 0.92 | 2.11 | -17.59 | 321.73 | -49.52 | 107.01 | 0.7606 | 404.5 | 321.9 | |
| 0.00 | 1.65 | 0.00 | 1.29 | -20.47 | 320.47 | -50.78 | 110.57 | 0.7775 | -624.0 | -513.7 | |
| 0.00 | 0.61 | 0.00 | 0.47 | -19.66 | 320.79 | -50.46 | 109.58 | 0.7731 | -471.0 | -401.9 | |
| 6.16 | 171.22 | 4.86 | 135.25 | -19.54 | 320.09 | -51.16 | 109.31 | 0.7801 | -910.9 | -420.5 | |
| 0.00 | 1.39 | 0.00 | 1.08 | -17.79 | 320.62 | -50.63 | 107.14 | 0.7726 | -711.0 | -591.4 | |
| 25.66 | -41.00 | 20.23 | -41.00 | -18.97 | 319.98 | -51.27 | 108.57 | 0.7805 | -927.3 | 999999 | |
| 2.60 | -41.00 | 2.04 | -41.00 | -18.58 | 320.10 | -51.15 | 108.09 | 0.7789 | -801.2 | 999999 | |
| 1.56 | -41.00 | 1.23 | -41.00 | -18.36 | 320.14 | -51.11 | 107.82 | 0.7782 | -715.0 | 999999 | |
| 5.81 | -41.00 | 4.62 | -41.00 | -19.49 | 319.60 | -51.65 | 109.18 | 0.7851 | -624.0 | 999999 | |
| 5.72 | -41.00 | 4.58 | -41.00 | -19.85 | 319.44 | -51.81 | 109.61 | 0.7871 | -560.8 | 999999 | |
| 0.00 | 8.58 | 0.00 | 6.74 | -17.56 | 320.07 | -51.18 | 106.77 | 0.7782 | -521.0 | -370.9 | |
| 5.81 | -41.00 | 4.65 | -41.00 | -19.14 | 319.24 | -52.01 | 108.70 | 0.7883 | -459.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
