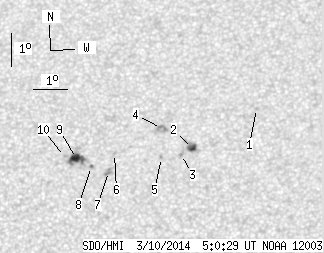

SDO HMI 2014-03-10 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.88 | 47.17 | 6.05 | 24.00 | 6.02 | 11.59 | 0.34 | 358.70 | 0.2321 | 140.7 | -31.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-10 05:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.62 | 7.36 | 15.47 | 4.22 | 343.84 | 0.2634 | 731.0 | 549.4 | |
| 3.64 | 8.84 | 1.86 | 4.51 | 6.13 | 13.54 | 2.29 | 350.25 | 0.2356 | -1149.2 | -730.4 | |
| 0.00 | 2.34 | 0.00 | 1.19 | 5.94 | 13.21 | 1.96 | 351.52 | 0.2316 | -1062.0 | -774.0 | |
| 0.00 | 7.20 | 0.00 | 3.67 | 6.74 | 12.61 | 1.36 | 354.42 | 0.2438 | -844.0 | -843.8 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 5.85 | 12.61 | 1.36 | 354.06 | 0.2287 | -937.0 | -726.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 5.97 | 11.20 | -0.05 | 0.21 | 0.2296 | -745.0 | -567.9 | |
| 0.00 | 4.77 | 0.00 | 2.42 | 5.42 | 11.02 | -0.23 | 1.04 | 0.2202 | 866.0 | 765.0 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 5.57 | 10.51 | -0.74 | 3.30 | 0.2232 | 966.0 | 794.8 | |
| 8.24 | 18.21 | 4.19 | 9.26 | 5.82 | 10.06 | -1.19 | 5.20 | 0.2280 | 1063.3 | 605.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 5.88 | 9.71 | -1.54 | 6.74 | 0.2296 | 685.0 | 545.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
