groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11996 99.61 389.94 69.68 271.28 14.55 49.81 39.10 299.58 0.7029 77.4 95.0


previous   or   next   observation for the same group / back to the solar disc

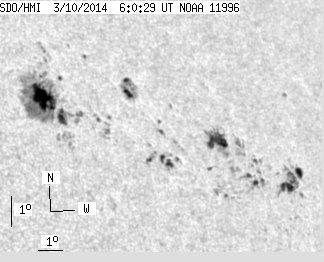

SDO HMI 2014-03-10 06:00:29 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.73 0.00 1.32 13.08 56.00 45.30 294.18 0.7612 -542.0 -428.5
2 0.00 0.61 0.00 0.46 12.72 55.92 45.22 293.78 0.7589 -523.0 -461.9
3 4.77 37.46 3.65 28.39 13.78 56.09 45.39 294.99 0.7651 -393.0 -536.9
4 0.00 1.65 0.00 1.24 12.32 55.61 44.91 293.43 0.7540 -607.0 -503.2
5 2.60 -3.00 1.98 -3.00 13.50 55.76 45.05 294.81 0.7605 -637.0 999999
6 0.00 0.69 0.00 0.52 12.26 55.34 44.64 293.48 0.7509 -574.0 -539.8
7 0.00 1.30 0.00 0.99 14.16 55.75 45.04 295.62 0.7633 -493.0 -310.3
8 8.24 -3.00 6.21 -3.00 13.25 55.44 44.73 294.66 0.7561 -873.5 999999
9 0.00 1.04 0.00 0.77 11.86 55.08 44.38 293.11 0.7465 -608.0 -526.7
10 0.00 1.47 0.00 1.15 16.24 56.11 45.40 297.93 0.7760 669.0 534.5
11 0.00 0.95 0.00 0.70 11.93 54.80 44.10 293.33 0.7438 -647.0 -543.5
12 0.00 1.04 0.00 0.78 13.66 55.10 44.40 295.33 0.7545 -653.0 -557.8
13 0.00 2.43 0.00 1.82 13.82 54.80 44.09 295.68 0.7521 -460.0 -440.2
14 0.00 0.61 0.00 0.44 11.50 54.16 43.46 293.09 0.7351 -645.0 -561.0
15 0.00 1.04 0.00 0.76 11.81 54.18 43.48 293.48 0.7367 -661.0 -562.1
16 0.69 10.66 0.51 7.85 13.37 54.39 43.69 295.33 0.7458 -518.9 -409.3
17 0.00 1.39 0.00 1.03 14.01 54.46 43.76 296.09 0.7494 -331.0 -290.1
18 0.00 1.91 0.00 1.41 13.65 54.29 43.58 295.72 0.7460 -642.0 -529.7
19 2.08 -16.00 1.53 -16.00 13.28 54.08 43.37 295.38 0.7421 -631.6 999999
20 0.78 2.25 0.58 1.67 13.99 54.24 43.54 296.17 0.7471 -658.4 -600.3
21 0.00 0.35 0.00 0.26 14.18 54.20 43.50 296.42 0.7476 -396.0 -364.0
22 0.00 1.13 0.00 0.83 13.82 54.03 43.33 296.06 0.7441 -676.0 -673.7
23 1.13 4.86 0.83 3.55 13.48 53.83 43.12 295.75 0.7404 -789.0 -589.5
24 0.00 1.13 0.00 0.83 14.40 53.83 43.13 296.89 0.7448 -493.0 -432.6
25 0.00 1.65 0.00 1.20 12.94 53.41 42.71 295.29 0.7335 -338.0 -271.0
26 0.00 3.38 0.00 2.49 14.16 53.65 42.94 296.69 0.7417 -769.0 -653.9
27 0.00 3.47 0.00 2.56 14.54 53.61 42.91 297.18 0.7432 -621.0 -526.9
28 0.00 1.21 0.00 0.88 12.89 53.19 42.49 295.34 0.7309 -262.0 -230.2
29 0.00 4.16 0.00 3.03 13.63 53.31 42.61 296.20 0.7357 -470.0 -541.8
30 0.00 0.95 0.00 0.69 12.71 52.99 42.29 295.23 0.7279 479.0 366.4
31 0.00 1.91 0.00 1.39 13.87 53.16 42.46 296.59 0.7352 -329.0 -337.5
32 0.35 1.39 0.25 0.99 12.75 52.71 42.01 295.43 0.7250 566.0 425.7
33 0.00 1.21 0.00 0.87 13.02 52.52 41.81 295.87 0.7243 -159.0 -123.6
34 18.73 35.89 13.61 26.08 14.50 52.77 42.06 297.59 0.7341 -791.2 -498.3
35 0.00 3.21 0.00 2.29 12.85 52.40 41.70 295.72 0.7222 519.0 321.6
36 0.69 1.65 0.50 1.18 13.56 52.22 41.52 296.72 0.7238 297.2 181.3
37 0.00 0.61 0.00 0.45 16.20 52.77 42.07 299.67 0.7429 -458.0 -401.0
38 0.00 0.95 0.00 0.70 16.28 52.59 41.88 299.87 0.7414 -269.0 -297.0
39 0.00 0.95 0.00 0.67 14.08 51.23 40.53 297.93 0.7158 -685.0 -503.5
40 0.00 0.87 0.00 0.61 14.16 51.09 40.39 298.12 0.7147 -675.0 -573.3
41 0.43 1.56 0.30 1.10 13.74 50.96 40.26 297.66 0.7111 504.8 359.6
42 0.00 1.47 0.00 1.04 14.31 51.00 40.30 298.37 0.7146 -585.0 -412.9
43 0.00 1.21 0.00 0.87 15.47 51.06 40.36 299.78 0.7214 -554.0 -444.3
44 3.29 12.66 2.30 8.82 13.58 50.61 39.90 297.67 0.7064 642.4 308.7
45 2.25 -44.00 1.57 -44.00 13.72 50.35 39.65 298.00 0.7044 695.2 999999
46 0.95 3.03 0.67 2.13 14.59 50.50 39.80 299.02 0.7107 -542.6 -478.1
47 0.00 1.30 0.00 0.91 14.91 50.49 39.79 299.43 0.7123 -531.0 -416.7
48 0.00 1.13 0.00 0.78 14.10 49.95 39.25 298.72 0.7021 -532.0 -415.8
49 1.39 7.28 0.96 5.03 13.64 49.82 39.12 298.22 0.6982 386.6 -120.4
50 0.00 0.69 0.00 0.48 14.14 49.29 38.59 299.19 0.6951 -446.0 -443.9
51 4.42 23.50 3.08 16.41 15.72 49.43 38.73 301.11 0.7057 785.2 319.2
52 1.73 -51.00 1.21 -51.00 16.14 49.45 38.75 301.62 0.7084 635.0 999999
53 0.00 2.60 0.00 1.73 12.00 48.15 37.45 297.07 0.6703 723.0 495.0
54 0.00 1.47 0.00 1.01 14.87 48.50 37.80 300.64 0.6908 632.0 524.6
55 0.00 1.73 0.00 1.18 14.64 48.37 37.67 300.42 0.6880 283.0 279.1
56 0.00 5.98 0.00 4.06 14.35 48.27 37.57 300.11 0.6852 659.0 496.6
57 0.00 0.43 0.00 0.29 11.90 47.72 37.01 297.22 0.6647 427.0 435.0
58 0.61 2.77 0.41 1.88 14.77 48.05 37.35 300.81 0.6853 -335.6 -279.1
59 0.00 1.21 0.00 0.82 14.50 47.80 37.10 300.62 0.6809 592.0 366.7
60 0.43 1.30 0.30 0.90 16.79 47.94 37.24 303.44 0.6967 420.2 390.0
61 0.00 3.81 0.00 2.53 13.82 46.83 36.12 300.39 0.6660 531.0 528.0
62 0.00 0.95 0.00 0.65 17.11 47.39 36.69 304.22 0.6929 528.0 430.9
63 0.00 7.02 0.00 4.65 14.13 46.69 35.99 300.89 0.6664 695.0 659.3
64 7.46 154.50 4.96 102.35 14.73 46.62 35.91 301.74 0.6694 860.5 470.4
65 0.78 1.91 0.53 1.28 15.99 46.80 36.09 303.24 0.6794 412.9 344.8
66 0.00 0.61 0.00 0.40 13.78 46.37 35.66 300.67 0.6606 589.0 607.9
67 0.00 2.77 0.00 1.83 14.07 46.38 35.68 301.04 0.6626 758.0 747.2
68 0.00 0.61 0.00 0.41 16.75 46.54 35.83 304.39 0.6817 370.0 315.1
69 0.00 1.91 0.00 1.28 16.57 46.38 35.68 304.28 0.6789 644.0 489.0
70 35.81 -64.00 23.74 -64.00 15.29 46.04 35.34 302.89 0.6667 1018.7 999999
71 0.00 2.69 0.00 1.81 16.90 46.38 35.67 304.69 0.6810 496.0 449.8
72 0.00 0.95 0.00 0.64 16.43 46.16 35.46 304.26 0.6756 701.0 653.8
73 0.00 0.95 0.00 0.64 17.12 46.27 35.57 305.05 0.6814 434.0 339.3
74 0.00 0.78 0.00 0.52 16.61 46.01 35.31 304.60 0.6752 546.0 470.8


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
