groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11996 105.52 408.56 76.63 293.86 14.38 50.42 41.36 298.00 0.7259 24.5 17.1


previous   or   next   observation for the same group / back to the solar disc

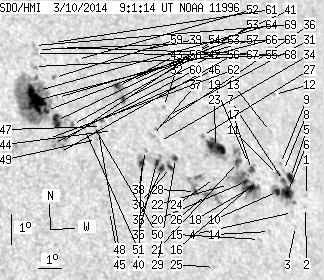

SDO HMI 2014-03-10 09:01:14 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 0.78 0.00 0.62 13.29 56.78 47.72 293.32 0.7864 -374.0 -319.9
2 0.00 0.87 0.00 0.69 12.90 56.63 47.58 292.92 0.7835 -550.0 -482.3
3 0.00 1.13 0.00 0.88 12.24 56.02 46.96 292.39 0.7748 -468.0 -424.7
4 0.00 1.21 0.00 0.95 12.68 55.99 46.93 292.93 0.7762 -645.0 -528.5
5 4.51 37.55 3.57 29.44 13.80 56.19 47.13 294.19 0.7826 -359.1 -490.7
6 10.14 -5.00 7.96 -5.00 13.30 55.92 46.86 293.72 0.7780 -656.1 999999
7 1.65 -5.00 1.29 -5.00 13.67 55.84 46.78 294.20 0.7786 -636.9 999999
8 0.00 0.87 0.00 0.68 14.00 55.93 46.87 294.55 0.7808 -438.0 -367.8
9 0.00 1.39 0.00 1.10 14.21 55.85 46.79 294.84 0.7809 -492.0 -407.7
10 3.38 -5.00 2.63 -5.00 13.29 55.47 46.41 293.91 0.7734 -905.8 999999
11 0.00 3.47 0.00 2.72 13.84 55.61 46.56 294.51 0.7771 -652.0 -583.3
12 0.00 0.52 0.00 0.42 16.46 56.24 47.19 297.29 0.7939 519.0 488.7
13 0.00 1.39 0.00 1.10 15.22 55.68 46.62 296.11 0.7834 -395.0 -260.9
14 0.00 1.04 0.00 0.79 11.97 54.81 45.75 292.60 0.7613 -518.0 -480.2
15 0.00 0.69 0.00 0.52 11.68 54.31 45.25 292.46 0.7549 -652.0 -517.4
16 0.00 1.56 0.00 1.20 13.60 54.71 45.65 294.64 0.7669 -541.0 -511.9
17 2.34 47.95 1.80 36.44 13.89 54.47 45.42 295.11 0.7658 -692.2 -582.8
18 4.60 -17.00 3.50 -17.00 13.31 54.28 45.23 294.48 0.7614 -869.3 999999
19 0.00 0.95 0.00 0.73 14.08 54.39 45.33 295.37 0.7658 -423.0 -334.7
20 2.25 -17.00 1.71 -17.00 13.48 54.11 45.05 294.78 0.7604 -899.5 999999
21 2.60 13.70 1.98 10.43 14.06 53.91 44.85 295.59 0.7608 -872.2 -574.1
22 0.00 0.78 0.00 0.58 13.32 53.33 44.28 294.95 0.7516 -626.0 -570.0
23 17.43 30.70 13.09 23.04 14.46 53.06 44.00 296.50 0.7539 -816.3 -560.9
24 0.00 1.39 0.00 1.03 13.45 52.77 43.71 295.41 0.7464 -540.0 -390.3
25 0.00 0.95 0.00 0.69 10.61 52.19 43.13 292.11 0.7276 -658.0 -573.4
26 0.78 28.53 0.57 20.89 12.91 52.31 43.25 294.96 0.7390 545.6 39.6
27 0.00 1.82 0.00 1.36 14.80 52.59 43.53 297.16 0.7507 -620.0 -508.5
28 1.39 -26.00 1.01 -26.00 12.96 51.86 42.80 295.26 0.7345 388.5 999999
29 1.91 2.86 1.38 2.07 13.95 51.24 42.19 296.83 0.7327 -675.0 -510.3
30 1.91 4.16 1.37 3.00 13.64 50.97 41.91 296.59 0.7283 381.0 180.4
31 0.00 1.04 0.00 0.76 15.33 51.28 42.23 298.51 0.7399 -600.0 -489.7
32 0.00 1.04 0.00 0.76 15.60 51.14 42.09 298.93 0.7399 -597.0 -461.7
33 2.51 22.11 1.80 15.74 13.58 50.58 41.53 296.72 0.7238 759.2 -37.9
34 0.00 0.78 0.00 0.56 14.44 50.70 41.64 297.75 0.7294 -487.0 -422.0
35 2.43 -33.00 1.73 -33.00 13.75 50.42 41.36 297.04 0.7229 683.7 999999
36 0.00 1.04 0.00 0.75 14.85 50.63 41.57 298.30 0.7307 -630.0 -487.5
37 0.00 2.95 0.00 2.12 14.61 50.45 41.39 298.10 0.7276 -750.0 -665.7
38 0.00 1.21 0.00 0.86 14.10 50.04 40.99 297.69 0.7207 -383.0 -472.6
39 0.00 0.61 0.00 0.45 17.41 50.84 41.78 301.29 0.7463 -458.0 -399.1
40 2.69 -33.00 1.90 -33.00 13.67 49.79 40.73 297.29 0.7157 358.6 999999
41 0.00 0.52 0.00 0.38 16.34 50.00 40.95 300.49 0.7321 369.0 389.0
42 1.99 12.23 1.43 8.75 15.69 49.51 40.46 299.98 0.7235 568.5 404.0
43 2.34 -42.00 1.68 -42.00 16.09 49.37 40.31 300.57 0.7243 643.5 999999
44 0.00 0.78 0.00 0.55 14.64 48.82 39.77 299.08 0.7106 369.0 211.6
45 0.00 1.21 0.00 0.83 12.02 48.19 39.13 296.08 0.6895 655.0 523.0
46 0.87 1.82 0.61 1.27 14.96 48.45 39.40 299.71 0.7084 618.3 454.5
47 0.00 0.87 0.00 0.60 14.73 48.40 39.35 299.46 0.7066 285.0 174.7
48 0.00 2.34 0.00 1.63 14.56 48.25 39.19 299.34 0.7039 645.0 553.1
49 0.00 0.78 0.00 0.54 14.29 48.11 39.05 299.08 0.7010 474.0 500.8
50 0.00 1.47 0.00 1.02 14.73 48.09 39.03 299.66 0.7032 -237.0 -291.5
51 0.00 0.95 0.00 0.66 14.61 47.70 38.65 299.74 0.6983 521.0 413.5
52 0.00 0.43 0.00 0.31 16.84 47.94 38.88 302.40 0.7138 572.0 491.6
53 0.52 2.08 0.36 1.43 14.70 47.25 38.19 300.15 0.6940 524.2 433.4
54 0.00 8.58 0.00 5.82 14.12 46.74 37.68 299.73 0.6850 580.0 637.4
55 0.00 1.04 0.00 0.73 17.19 47.42 38.37 303.16 0.7107 375.0 330.8
56 0.00 1.04 0.00 0.70 13.75 46.55 37.50 299.37 0.6808 675.0 619.2
57 0.00 0.78 0.00 0.54 15.53 46.84 37.78 301.48 0.6945 404.0 368.0
58 6.50 141.86 4.42 95.99 14.78 46.64 37.58 300.65 0.6878 842.7 476.2
59 0.00 1.73 0.00 1.20 16.17 46.86 37.81 302.27 0.6987 719.0 580.8
60 0.00 3.21 0.00 2.16 14.02 46.37 37.32 299.85 0.6804 713.0 721.1
61 0.00 1.30 0.00 0.91 17.33 47.10 38.04 303.55 0.7082 505.0 288.6
62 0.00 0.78 0.00 0.53 14.17 46.21 37.15 300.15 0.6795 760.0 758.3
63 2.17 -58.00 1.47 -58.00 15.07 46.31 37.25 301.25 0.6860 819.3 999999
64 0.69 -58.00 0.47 -58.00 15.70 46.13 37.08 302.17 0.6880 243.8 999999
65 0.00 1.04 0.00 0.72 17.04 46.40 37.34 303.68 0.6992 518.0 481.5
66 27.92 -58.00 18.90 -58.00 15.36 45.95 36.89 301.87 0.6839 1078.4 999999
67 0.00 1.82 0.00 1.25 16.90 46.29 37.23 303.58 0.6972 670.0 503.2
68 0.00 1.56 0.00 1.07 16.47 46.15 37.09 303.14 0.6930 702.0 577.4
69 0.00 1.30 0.00 0.90 17.17 46.31 37.25 303.89 0.6991 499.0 411.9


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
