SDO HMI 2014-03-10 09:01:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 137.60 | 475.69 | 99.43 | 345.14 | -18.71 | 322.25 | -46.81 | 108.94 | 0.7314 | -219.3 | -104.4 | |
|
previous
or next observation for the same group /

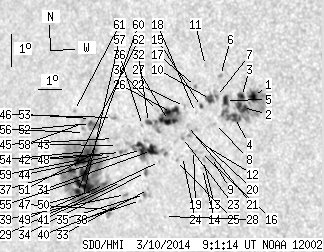

back to the solar disc SDO HMI 2014-03-10 09:01:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.81 | 86.62 | 3.84 | 57.65 | -17.57 | 327.89 | -41.17 | 108.44 | 0.6638 | 1057.6 | 519.1 | |
| 7.28 | -1.00 | 4.85 | -1.00 | -17.87 | 327.35 | -41.71 | 108.75 | 0.6711 | 867.8 | 999999 | |
| 3.29 | -1.00 | 2.19 | -1.00 | -17.53 | 327.40 | -41.66 | 108.27 | 0.6698 | 806.6 | 999999 | |
| 6.42 | -1.00 | 4.31 | -1.00 | -18.14 | 326.93 | -42.13 | 109.05 | 0.6767 | 542.5 | 999999 | |
| 3.99 | -1.00 | 2.68 | -1.00 | -17.60 | 326.71 | -42.35 | 108.22 | 0.6783 | 754.0 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.22 | -16.84 | 326.71 | -42.34 | 107.10 | 0.6769 | 750.0 | 568.7 | |
| 0.52 | 11.71 | 0.35 | 7.93 | -17.45 | 326.37 | -42.69 | 107.93 | 0.6822 | 819.3 | 465.9 | |
| 0.00 | 0.87 | 0.00 | 0.59 | -18.25 | 326.08 | -42.97 | 109.03 | 0.6871 | -332.0 | -295.8 | |
| 0.00 | 2.69 | 0.00 | 1.85 | -19.26 | 325.59 | -43.47 | 110.36 | 0.6951 | 532.0 | 517.8 | |
| 3.90 | -7.00 | 2.65 | -7.00 | -17.52 | 326.09 | -42.96 | 107.97 | 0.6856 | 626.4 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.64 | -16.49 | 326.18 | -42.88 | 106.49 | 0.6828 | 476.0 | 409.5 | |
| 0.00 | 0.69 | 0.00 | 0.48 | -18.87 | 325.41 | -43.65 | 109.77 | 0.6964 | -243.0 | -202.8 | |
| 0.00 | 1.56 | 0.00 | 1.08 | -19.32 | 325.22 | -43.84 | 110.36 | 0.6996 | 585.0 | 436.8 | |
| 0.00 | 1.39 | 0.00 | 0.96 | -19.55 | 325.09 | -43.97 | 110.66 | 0.7015 | 477.0 | 368.0 | |
| 0.95 | 2.17 | 0.65 | 1.48 | -17.69 | 325.65 | -43.41 | 108.14 | 0.6912 | 277.8 | 227.6 | |
| 0.00 | 0.87 | 0.00 | 0.60 | -19.07 | 325.17 | -43.89 | 109.99 | 0.6996 | -329.0 | -265.5 | |
| 0.00 | 1.47 | 0.00 | 1.01 | -17.08 | 325.58 | -43.48 | 107.23 | 0.6910 | 585.0 | 524.4 | |
| 0.00 | 0.43 | 0.00 | 0.30 | -17.85 | 325.34 | -43.71 | 108.30 | 0.6952 | 369.0 | 376.0 | |
| 0.00 | 2.34 | 0.00 | 1.62 | -18.98 | 324.89 | -44.17 | 109.81 | 0.7027 | -753.0 | -662.4 | |
| 0.00 | 4.68 | 0.00 | 3.24 | -18.44 | 324.98 | -44.07 | 109.06 | 0.7005 | -161.0 | -87.8 | |
| 0.00 | 1.04 | 0.00 | 0.72 | -18.21 | 324.88 | -44.18 | 108.72 | 0.7013 | -383.0 | -321.6 | |
| 0.00 | 1.04 | 0.00 | 0.72 | -17.63 | 324.93 | -44.12 | 107.91 | 0.6996 | 569.0 | 457.6 | |
| 0.00 | 1.73 | 0.00 | 1.21 | -18.55 | 324.55 | -44.51 | 109.13 | 0.7058 | -116.0 | -118.9 | |
| 0.00 | 0.61 | 0.00 | 0.43 | -19.12 | 324.36 | -44.70 | 109.89 | 0.7091 | -455.0 | -429.6 | |
| 0.00 | 0.87 | 0.00 | 0.61 | -19.22 | 324.05 | -45.00 | 109.96 | 0.7128 | -719.0 | -620.2 | |
| 10.49 | 42.83 | 7.32 | 30.06 | -17.76 | 324.32 | -44.74 | 107.98 | 0.7071 | 173.4 | -92.5 | |
| 11.19 | -26.00 | 7.84 | -26.00 | -17.99 | 324.11 | -44.94 | 108.26 | 0.7099 | -610.2 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.25 | -20.85 | 322.89 | -46.16 | 111.95 | 0.7291 | -575.0 | -531.2 | |
| 0.00 | 0.78 | 0.00 | 0.56 | -19.18 | 323.30 | -45.76 | 109.76 | 0.7213 | -353.0 | -388.4 | |
| 0.00 | 0.78 | 0.00 | 0.55 | -17.65 | 323.73 | -45.32 | 107.72 | 0.7137 | 435.0 | 322.1 | |
| 7.72 | 38.33 | 5.51 | 27.50 | -18.82 | 323.06 | -45.99 | 109.22 | 0.7233 | -799.6 | -182.6 | |
| 2.08 | -26.00 | 1.48 | -26.00 | -17.97 | 323.22 | -45.83 | 108.08 | 0.7201 | 619.0 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.57 | -19.98 | 322.50 | -46.56 | 110.68 | 0.7318 | -318.0 | -312.0 | |
| 0.95 | 2.34 | 0.69 | 1.69 | -19.46 | 322.56 | -46.50 | 109.99 | 0.7301 | -602.7 | -457.4 | |
| 0.78 | 4.34 | 0.57 | 3.15 | -20.11 | 322.26 | -46.80 | 110.82 | 0.7346 | 710.3 | 181.5 | |
| 0.00 | 0.95 | 0.00 | 0.68 | -18.04 | 322.93 | -46.13 | 108.12 | 0.7236 | 208.0 | 275.4 | |
| 7.98 | -31.00 | 5.74 | -31.00 | -18.75 | 322.63 | -46.42 | 109.04 | 0.7281 | 438.3 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.82 | -20.27 | 322.01 | -47.05 | 110.99 | 0.7377 | 612.0 | 513.1 | |
| 0.00 | 1.47 | 0.00 | 1.09 | -20.03 | 321.40 | -47.66 | 110.54 | 0.7439 | 346.0 | 232.4 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -20.32 | 321.09 | -47.96 | 110.86 | 0.7477 | 355.0 | 343.0 | |
| 0.00 | 0.78 | 0.00 | 0.58 | -19.63 | 321.37 | -47.68 | 110.00 | 0.7435 | -396.0 | -377.3 | |
| 0.69 | 3.29 | 0.51 | 2.41 | -18.76 | 321.66 | -47.40 | 108.88 | 0.7389 | 342.5 | 151.9 | |
| 0.00 | 1.13 | 0.00 | 0.83 | -18.54 | 321.60 | -47.46 | 108.57 | 0.7392 | -320.0 | -304.0 | |
| 0.00 | 1.65 | 0.00 | 1.21 | -18.82 | 321.31 | -47.75 | 108.90 | 0.7429 | -386.0 | -368.3 | |
| 0.00 | 4.08 | 0.00 | 2.99 | -18.31 | 321.50 | -47.56 | 108.25 | 0.7401 | -256.0 | -354.3 | |
| 0.00 | 2.69 | 0.00 | 1.96 | -17.68 | 321.68 | -47.38 | 107.43 | 0.7372 | 442.0 | 301.7 | |
| 0.00 | 7.89 | 0.00 | 5.93 | -20.42 | 320.52 | -48.53 | 110.89 | 0.7540 | -687.0 | -557.0 | |
| 0.00 | 1.47 | 0.00 | 1.09 | -18.76 | 321.05 | -48.01 | 108.79 | 0.7457 | -705.0 | -550.7 | |
| 1.47 | 215.65 | 1.10 | 163.88 | -19.65 | 320.56 | -48.50 | 109.88 | 0.7524 | -797.7 | -303.5 | |
| 2.69 | -49.00 | 2.03 | -49.00 | -19.78 | 320.02 | -49.04 | 109.97 | 0.7584 | -1015.5 | 999999 | |
| 2.86 | -49.00 | 2.14 | -49.00 | -18.68 | 320.46 | -48.59 | 108.58 | 0.7520 | -948.6 | 999999 | |
| 1.30 | 8.93 | 0.97 | 6.64 | -17.77 | 320.61 | -48.44 | 107.40 | 0.7491 | -889.9 | -539.7 | |
| 0.00 | 1.13 | 0.00 | 0.84 | -17.62 | 320.67 | -48.39 | 107.21 | 0.7483 | -380.0 | -340.8 | |
| 4.08 | -49.00 | 3.07 | -49.00 | -18.59 | 320.16 | -48.90 | 108.42 | 0.7551 | -818.8 | 999999 | |
| 28.35 | -49.00 | 21.56 | -49.00 | -19.38 | 319.70 | -49.36 | 109.39 | 0.7611 | -926.1 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.43 | -18.01 | 320.24 | -48.82 | 107.67 | 0.7535 | -685.0 | -576.5 | |
| 2.95 | -49.00 | 2.26 | -49.00 | -19.97 | 319.35 | -49.71 | 110.10 | 0.7657 | -459.6 | 999999 | |
| 0.00 | 3.99 | 0.00 | 2.99 | -17.73 | 320.25 | -48.81 | 107.30 | 0.7531 | -649.0 | -588.7 | |
| 12.75 | -49.00 | 9.66 | -49.00 | -18.80 | 319.79 | -49.27 | 108.64 | 0.7594 | -893.9 | 999999 | |
| 3.64 | -49.00 | 2.80 | -49.00 | -19.77 | 319.19 | -49.86 | 109.81 | 0.7670 | -486.8 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.91 | -17.31 | 320.02 | -49.04 | 106.72 | 0.7551 | 370.0 | 177.4 | |
| 3.47 | -49.00 | 2.66 | -49.00 | -19.09 | 319.23 | -49.82 | 108.94 | 0.7657 | -563.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
