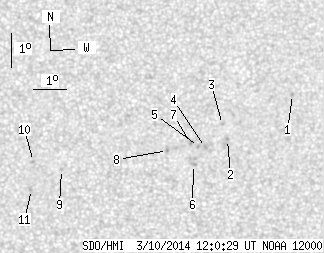

SDO HMI 2014-03-10 12:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.33 | 0.00 | 7.70 | -10.88 | 14.85 | 7.43 | 240.43 | 0.1461 | 449.5 | 456.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-10 12:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.47 | 0.00 | 0.74 | -9.24 | 18.41 | 10.98 | 258.75 | 0.1926 | 919.0 | 679.5 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -10.62 | 16.45 | 9.03 | 248.50 | 0.1666 | 994.0 | 787.6 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -10.17 | 16.29 | 8.86 | 250.75 | 0.1614 | 981.0 | 836.9 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -10.87 | 15.78 | 8.36 | 245.56 | 0.1576 | 1008.0 | 793.7 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -10.84 | 15.57 | 8.15 | 245.18 | 0.1541 | 1056.0 | 836.3 | |
| 0.00 | 2.51 | 0.00 | 1.26 | -11.38 | 15.43 | 8.01 | 241.64 | 0.1559 | 895.0 | 682.0 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -10.73 | 15.32 | 7.90 | 245.24 | 0.1494 | 869.0 | 826.1 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -10.97 | 14.62 | 7.20 | 241.64 | 0.1405 | 988.0 | 769.0 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -11.58 | 11.40 | 3.98 | 221.74 | 0.1026 | -991.0 | -702.3 | |
| 0.00 | 1.39 | 0.00 | 0.69 | -11.34 | 10.55 | 3.13 | 216.58 | 0.0902 | -914.0 | -730.8 | |
| 0.00 | 0.52 | 0.00 | 0.26 | -12.18 | 10.50 | 3.07 | 211.19 | 0.1017 | -861.0 | -719.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
