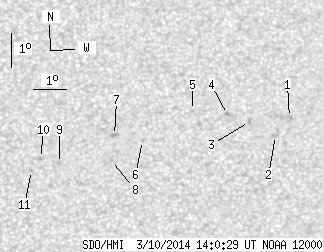

SDO HMI 2014-03-10 14:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.93 | 0.00 | 8.96 | -11.41 | 12.47 | 6.15 | 230.93 | 0.1342 | -94.5 | 77.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-10 14:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.17 | 0.00 | 1.09 | -10.82 | 15.85 | 9.53 | 248.33 | 0.1757 | 839.0 | 781.9 | |
| 0.00 | 2.77 | 0.00 | 1.39 | -11.37 | 15.44 | 9.11 | 244.54 | 0.1727 | 687.0 | 652.6 | |
| 0.00 | 1.99 | 0.00 | 1.00 | -10.97 | 14.63 | 8.30 | 244.83 | 0.1574 | 935.0 | 751.4 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -10.77 | 13.95 | 7.62 | 244.21 | 0.1454 | 957.0 | 804.2 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -10.66 | 12.88 | 6.55 | 241.51 | 0.1282 | 791.0 | 635.0 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -11.58 | 11.37 | 5.05 | 228.43 | 0.1157 | -749.0 | -500.4 | |
| 0.00 | 2.51 | 0.00 | 1.25 | -11.43 | 10.51 | 4.19 | 224.14 | 0.1033 | -942.0 | -773.7 | |
| 0.00 | 0.87 | 0.00 | 0.43 | -12.18 | 10.43 | 4.11 | 218.91 | 0.1121 | -901.0 | -726.0 | |
| 0.00 | 1.13 | 0.00 | 0.56 | -12.28 | 8.85 | 2.52 | 205.99 | 0.0987 | -976.0 | -775.5 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -12.13 | 8.27 | 1.95 | 201.17 | 0.0923 | -889.0 | -726.9 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -12.49 | 8.00 | 1.67 | 197.23 | 0.0967 | -792.0 | -599.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
