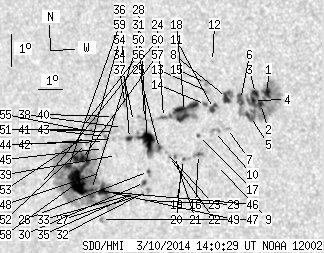

SDO HMI 2014-03-10 14:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 131.21 | 535.54 | 90.26 | 371.55 | -18.72 | 322.20 | -44.12 | 109.48 | 0.7006 | -144.4 | -93.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-10 14:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.03 | 100.09 | 3.19 | 63.80 | -17.46 | 328.10 | -38.23 | 109.03 | 0.6267 | 1069.7 | 533.2 | |
| 2.51 | -1.00 | 1.60 | -1.00 | -17.77 | 327.74 | -38.59 | 109.41 | 0.6320 | 916.7 | 999999 | |
| 3.38 | -1.00 | 2.16 | -1.00 | -17.46 | 327.62 | -38.71 | 108.89 | 0.6327 | 825.5 | 999999 | |
| 1.91 | -1.00 | 1.22 | -1.00 | -17.66 | 327.49 | -38.84 | 109.17 | 0.6349 | 869.0 | 999999 | |
| 3.99 | -1.00 | 2.56 | -1.00 | -18.13 | 327.24 | -39.08 | 109.83 | 0.6392 | 577.9 | 999999 | |
| 4.51 | -1.00 | 2.90 | -1.00 | -17.59 | 326.98 | -39.34 | 108.92 | 0.6412 | 719.1 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.19 | -18.42 | 326.22 | -40.10 | 109.99 | 0.6526 | 348.0 | 252.2 | |
| 6.15 | 10.57 | 3.99 | 6.85 | -17.49 | 326.44 | -39.89 | 108.63 | 0.6477 | 638.0 | 529.6 | |
| 0.00 | 0.87 | 0.00 | 0.57 | -19.50 | 325.49 | -40.84 | 111.40 | 0.6643 | 371.0 | 338.3 | |
| 0.00 | 4.85 | 0.00 | 3.19 | -18.47 | 325.67 | -40.65 | 109.91 | 0.6595 | 42.0 | 247.0 | |
| 3.47 | 5.89 | 2.27 | 3.86 | -17.78 | 325.83 | -40.50 | 108.91 | 0.6560 | 585.8 | 512.7 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -16.37 | 326.16 | -40.17 | 106.85 | 0.6490 | 625.0 | 547.8 | |
| 0.00 | 3.38 | 0.00 | 2.21 | -17.25 | 325.72 | -40.60 | 108.09 | 0.6562 | 380.0 | 358.1 | |
| 0.95 | 2.25 | 0.63 | 1.48 | -17.63 | 325.54 | -40.79 | 108.62 | 0.6593 | 464.0 | 367.8 | |
| 0.00 | 3.81 | 0.00 | 2.49 | -16.97 | 325.71 | -40.61 | 107.67 | 0.6557 | 730.0 | 472.4 | |
| 1.04 | 5.29 | 0.69 | 3.52 | -19.11 | 324.81 | -41.51 | 110.63 | 0.6715 | -853.9 | -681.1 | |
| 0.52 | 1.30 | 0.35 | 0.86 | -18.54 | 324.98 | -41.34 | 109.84 | 0.6681 | 273.0 | 243.3 | |
| 20.97 | 34.66 | 13.97 | 23.09 | -17.77 | 324.62 | -41.70 | 108.62 | 0.6708 | -113.9 | -175.3 | |
| 0.43 | 2.69 | 0.29 | 1.81 | -19.20 | 324.14 | -42.18 | 110.60 | 0.6798 | -724.4 | -692.6 | |
| 0.00 | 0.69 | 0.00 | 0.47 | -19.35 | 324.01 | -42.31 | 110.78 | 0.6817 | -522.0 | -493.5 | |
| 0.43 | 1.47 | 0.29 | 1.00 | -19.08 | 323.80 | -42.53 | 110.34 | 0.6836 | -796.4 | -739.1 | |
| 0.00 | 0.95 | 0.00 | 0.65 | -19.07 | 323.59 | -42.74 | 110.27 | 0.6861 | -654.0 | -576.5 | |
| 0.00 | 0.78 | 0.00 | 0.53 | -18.94 | 323.50 | -42.82 | 110.06 | 0.6868 | -765.0 | -662.9 | |
| 1.04 | 3.38 | 0.70 | 2.29 | -17.88 | 323.70 | -42.62 | 108.57 | 0.6822 | 676.8 | 533.1 | |
| 1.39 | 42.64 | 0.95 | 29.29 | -18.79 | 323.24 | -43.08 | 109.79 | 0.6895 | -739.9 | -61.5 | |
| 0.87 | 2.77 | 0.60 | 1.92 | -19.44 | 322.55 | -43.77 | 110.55 | 0.6991 | -616.3 | -411.7 | |
| 0.00 | 3.55 | 0.00 | 2.47 | -20.07 | 322.33 | -43.99 | 111.39 | 0.7030 | 401.0 | 400.9 | |
| 16.90 | -25.00 | 11.59 | -25.00 | -18.54 | 322.81 | -43.52 | 109.33 | 0.6942 | 555.4 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.21 | -20.30 | 322.11 | -44.21 | 111.66 | 0.7060 | 619.0 | 476.4 | |
| 1.39 | 3.64 | 0.96 | 2.53 | -19.76 | 322.26 | -44.06 | 110.93 | 0.7031 | 704.4 | 565.9 | |
| 0.00 | 4.94 | 0.00 | 3.38 | -17.84 | 322.90 | -43.43 | 108.35 | 0.6918 | 410.0 | 396.7 | |
| 0.00 | 1.13 | 0.00 | 0.79 | -20.08 | 322.06 | -44.26 | 111.34 | 0.7061 | 630.0 | 564.9 | |
| 0.00 | 0.78 | 0.00 | 0.55 | -20.05 | 321.76 | -44.56 | 111.23 | 0.7095 | 481.0 | 358.8 | |
| 0.00 | 0.69 | 0.00 | 0.48 | -17.89 | 322.40 | -43.92 | 108.32 | 0.6977 | -252.0 | -196.0 | |
| 0.00 | 1.99 | 0.00 | 1.40 | -20.10 | 321.52 | -44.80 | 111.23 | 0.7123 | 536.0 | 408.7 | |
| 2.34 | -25.00 | 1.62 | -25.00 | -18.38 | 322.07 | -44.25 | 108.96 | 0.7026 | 367.7 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.96 | -17.41 | 322.20 | -44.12 | 107.61 | 0.6993 | 628.0 | 498.1 | |
| 0.00 | 1.13 | 0.00 | 0.78 | -18.03 | 321.88 | -44.45 | 108.42 | 0.7042 | -202.0 | -236.6 | |
| 0.00 | 0.95 | 0.00 | 0.67 | -18.84 | 321.34 | -44.99 | 109.45 | 0.7119 | 255.0 | 177.1 | |
| 0.00 | 1.30 | 0.00 | 0.91 | -17.67 | 321.60 | -44.73 | 107.86 | 0.7068 | 475.0 | 393.3 | |
| 0.00 | 3.73 | 0.00 | 2.61 | -18.12 | 321.45 | -44.87 | 108.46 | 0.7093 | -310.0 | -374.0 | |
| 0.00 | 1.30 | 0.00 | 0.91 | -18.32 | 321.38 | -44.94 | 108.74 | 0.7105 | -304.0 | -295.2 | |
| 0.43 | 3.55 | 0.31 | 2.51 | -18.23 | 321.05 | -45.27 | 108.55 | 0.7141 | -640.6 | -483.8 | |
| 0.00 | 1.21 | 0.00 | 0.86 | -18.38 | 320.96 | -45.36 | 108.73 | 0.7154 | -625.0 | -444.9 | |
| 0.00 | 0.95 | 0.00 | 0.68 | -18.58 | 320.85 | -45.48 | 109.00 | 0.7171 | -749.0 | -686.5 | |
| 4.94 | 249.84 | 3.54 | 181.43 | -19.87 | 320.34 | -45.99 | 110.66 | 0.7252 | -1040.4 | -329.8 | |
| 0.00 | 2.17 | 0.00 | 1.57 | -20.70 | 319.96 | -46.36 | 111.72 | 0.7310 | -703.0 | -612.0 | |
| 0.00 | 1.04 | 0.00 | 0.74 | -19.29 | 320.46 | -45.86 | 109.89 | 0.7227 | -454.0 | -454.1 | |
| 0.69 | -46.00 | 0.50 | -46.00 | -19.78 | 320.09 | -46.23 | 110.49 | 0.7278 | -840.9 | 999999 | |
| 1.21 | -46.00 | 0.88 | -46.00 | -19.76 | 319.87 | -46.45 | 110.42 | 0.7302 | -997.9 | 999999 | |
| 0.35 | 12.48 | 0.25 | 8.85 | -17.97 | 320.47 | -45.85 | 108.07 | 0.7203 | -811.0 | -491.9 | |
| 0.00 | 1.56 | 0.00 | 1.12 | -18.37 | 320.15 | -46.17 | 108.57 | 0.7246 | -707.0 | -633.3 | |
| 0.00 | 0.78 | 0.00 | 0.56 | -18.13 | 320.23 | -46.09 | 108.26 | 0.7233 | -701.0 | -653.3 | |
| 1.30 | -46.00 | 0.94 | -46.00 | -19.05 | 319.82 | -46.51 | 109.44 | 0.7295 | -967.7 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.62 | -17.97 | 320.20 | -46.13 | 108.04 | 0.7235 | -710.0 | -625.0 | |
| 0.00 | 1.13 | 0.00 | 0.81 | -17.85 | 320.15 | -46.18 | 107.85 | 0.7238 | -708.0 | -658.2 | |
| 10.31 | -46.00 | 7.44 | -46.00 | -18.83 | 319.76 | -46.57 | 109.13 | 0.7298 | -954.4 | 999999 | |
| 29.03 | -46.00 | 21.15 | -46.00 | -19.50 | 319.32 | -47.00 | 109.96 | 0.7358 | -849.5 | 999999 | |
| 3.73 | -46.00 | 2.72 | -46.00 | -18.98 | 319.10 | -47.22 | 109.22 | 0.7374 | -603.0 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.46 | -19.40 | 317.61 | -48.71 | 109.53 | 0.7543 | -439.0 | -386.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
