SDO HMI 2014-03-10 15:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.83 | 234.83 | 23.85 | 117.83 | -10.18 | 357.88 | -7.89 | 111.28 | 0.1478 | 411.8 | 287.4 | |
|
previous
or next observation for the same group /

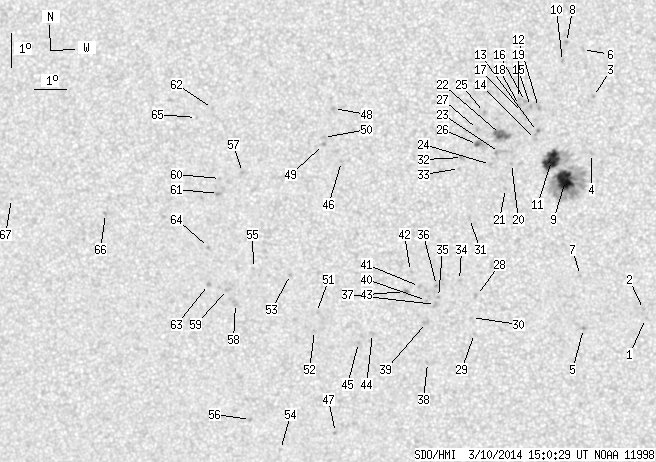

back to the solar disc SDO HMI 2014-03-10 15:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.13 | -14.12 | 2.48 | -3.29 | 155.17 | 0.1332 | 672.0 | 653.3 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -13.85 | 2.43 | -3.35 | 153.88 | 0.1294 | 990.0 | 767.6 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -7.48 | 1.00 | -4.78 | 93.48 | 0.0831 | 1020.0 | 791.4 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -9.18 | 0.92 | -4.86 | 112.49 | 0.0909 | -819.0 | -546.5 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -14.40 | 0.57 | -5.21 | 145.00 | 0.1539 | 1115.0 | 899.1 | |
| 0.00 | 1.39 | 0.00 | 0.69 | -6.08 | 0.68 | -5.09 | 77.60 | 0.0907 | 757.0 | 620.1 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -12.81 | 0.51 | -5.26 | 137.62 | 0.1333 | 861.0 | 628.1 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -5.87 | 0.21 | -5.57 | 76.58 | 0.0997 | 1077.0 | 891.9 | |
| 21.49 | 124.78 | 10.71 | 62.17 | -9.97 | 0.11 | -5.66 | 116.59 | 0.1091 | 1356.1 | 469.2 | |
| 0.00 | 1.13 | 0.00 | 0.56 | -6.43 | 0.08 | -5.70 | 82.39 | 0.1000 | 861.0 | 744.2 | |
| 19.50 | -9.00 | 9.72 | -9.00 | -9.37 | 359.70 | -6.07 | 110.11 | 0.1117 | 1196.8 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.12 | -7.79 | 359.34 | -6.44 | 95.50 | 0.1121 | 1042.0 | 834.7 | |
| 0.00 | 2.51 | 0.00 | 1.25 | -8.50 | 359.29 | -6.48 | 101.72 | 0.1146 | 1050.0 | 877.8 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -8.74 | 359.23 | -6.55 | 103.63 | 0.1165 | 1128.0 | 912.4 | |
| 0.00 | 1.39 | 0.00 | 0.69 | -7.76 | 359.09 | -6.68 | 95.04 | 0.1162 | 1089.0 | 829.1 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -7.60 | 358.95 | -6.83 | 93.68 | 0.1186 | 888.0 | 731.0 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -7.93 | 358.85 | -6.93 | 96.35 | 0.1207 | 936.0 | 761.8 | |
| 0.00 | 1.13 | 0.00 | 0.56 | -7.72 | 358.76 | -7.01 | 94.56 | 0.1219 | 976.0 | 744.7 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -7.51 | 358.74 | -7.04 | 92.83 | 0.1222 | 814.0 | 676.5 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -9.44 | 358.48 | -7.29 | 107.62 | 0.1319 | 926.0 | 751.2 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -10.18 | 358.28 | -7.49 | 112.35 | 0.1394 | 713.0 | 541.2 | |
| 5.89 | 11.26 | 2.94 | 5.63 | -8.57 | 358.17 | -7.60 | 100.69 | 0.1338 | 1104.1 | 956.6 | |
| 0.00 | 5.63 | 0.00 | 2.82 | -9.11 | 358.13 | -7.65 | 104.53 | 0.1364 | 715.0 | 525.4 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -9.46 | 357.84 | -7.93 | 106.49 | 0.1426 | 845.0 | 607.6 | |
| 0.00 | 1.82 | 0.00 | 0.91 | -7.91 | 357.70 | -8.08 | 95.44 | 0.1404 | 935.0 | 780.0 | |
| 0.95 | 4.59 | 0.48 | 2.30 | -8.86 | 357.46 | -8.31 | 101.82 | 0.1466 | -781.9 | -175.2 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -8.41 | 357.47 | -8.30 | 98.79 | 0.1452 | 703.0 | 616.5 | |
| 0.00 | 1.65 | 0.00 | 0.83 | -13.36 | 357.30 | -8.48 | 127.05 | 0.1806 | 932.0 | 747.2 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -14.50 | 357.19 | -8.58 | 131.54 | 0.1939 | 783.0 | 532.3 | |
| 0.00 | 1.39 | 0.00 | 0.70 | -14.02 | 357.12 | -8.66 | 129.34 | 0.1897 | 443.0 | 397.0 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -11.06 | 357.16 | -8.62 | 114.92 | 0.1629 | 722.0 | 596.4 | |
| 0.00 | 2.08 | 0.00 | 1.04 | -9.24 | 357.00 | -8.78 | 103.67 | 0.1557 | -905.0 | -804.5 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -9.56 | 356.90 | -8.88 | 105.54 | 0.1587 | -901.0 | -706.2 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -12.90 | 356.79 | -8.99 | 123.43 | 0.1833 | 902.0 | 715.8 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -13.40 | 356.12 | -9.66 | 123.82 | 0.1973 | 1069.0 | 832.2 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -13.04 | 356.07 | -9.70 | 122.12 | 0.1948 | 1003.0 | 878.8 | |
| 0.00 | 3.21 | 0.00 | 1.62 | -13.60 | 356.02 | -9.76 | 124.44 | 0.2007 | 968.0 | 692.1 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -15.34 | 355.69 | -10.09 | 130.26 | 0.2224 | -757.0 | -624.3 | |
| 0.00 | 3.12 | 0.00 | 1.58 | -14.14 | 355.71 | -10.06 | 125.82 | 0.2099 | 931.0 | 732.8 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -13.48 | 355.74 | -10.03 | 123.20 | 0.2034 | 790.0 | 683.4 | |
| 0.00 | 1.91 | 0.00 | 0.96 | -13.05 | 355.54 | -10.23 | 120.91 | 0.2026 | 955.0 | 656.9 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -12.60 | 355.28 | -10.49 | 118.33 | 0.2028 | 623.0 | 533.5 | |
| 0.00 | 2.77 | 0.00 | 1.40 | -13.19 | 355.13 | -10.64 | 120.57 | 0.2098 | 849.0 | 723.3 | |
| 0.00 | 1.99 | 0.00 | 1.02 | -14.43 | 354.01 | -11.77 | 122.94 | 0.2364 | -811.0 | -670.1 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -14.68 | 353.55 | -12.22 | 122.93 | 0.2451 | -1072.0 | -874.9 | |
| 0.00 | 1.39 | 0.00 | 0.70 | -9.27 | 353.28 | -12.49 | 100.26 | 0.2179 | -945.0 | -754.0 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -17.37 | 352.65 | -13.13 | 129.61 | 0.2826 | -900.0 | -780.4 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -7.68 | 353.09 | -12.68 | 92.92 | 0.2189 | -1003.0 | -844.0 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -8.74 | 352.75 | -13.03 | 97.61 | 0.2258 | -881.0 | -762.4 | |
| 0.00 | 2.08 | 0.00 | 1.06 | -8.54 | 352.75 | -13.02 | 96.69 | 0.2254 | -904.0 | -670.6 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -13.75 | 352.29 | -13.49 | 117.32 | 0.2562 | -779.0 | -747.1 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -14.28 | 352.19 | -13.58 | 119.04 | 0.2615 | -806.0 | -665.6 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -12.59 | 351.54 | -14.24 | 112.06 | 0.2602 | -899.0 | -740.2 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -17.83 | 350.84 | -14.94 | 127.49 | 0.3106 | -127.0 | -87.9 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -12.37 | 350.38 | -15.39 | 109.96 | 0.2771 | -715.0 | -560.5 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -16.89 | 349.95 | -15.82 | 123.48 | 0.3142 | -769.0 | -709.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -9.50 | 350.19 | -15.58 | 99.49 | 0.2698 | -1039.0 | -840.6 | |
| 0.00 | 2.95 | 0.00 | 1.53 | -13.40 | 349.74 | -16.03 | 112.69 | 0.2925 | -759.0 | -737.7 | |
| 0.00 | 2.17 | 0.00 | 1.12 | -12.97 | 349.52 | -16.26 | 111.06 | 0.2936 | -885.0 | -757.4 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -9.65 | 349.50 | -16.28 | 99.73 | 0.2816 | -753.0 | -556.9 | |
| 0.00 | 2.17 | 0.00 | 1.12 | -10.10 | 349.41 | -16.36 | 101.25 | 0.2841 | -1033.0 | -844.6 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -7.56 | 349.34 | -16.43 | 92.25 | 0.2819 | -842.0 | -543.9 | |
| 0.00 | 2.25 | 0.00 | 1.17 | -12.80 | 348.92 | -16.85 | 109.92 | 0.3020 | -855.0 | -718.7 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -11.69 | 349.00 | -16.77 | 106.41 | 0.2959 | -912.0 | -713.6 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -7.81 | 348.83 | -16.95 | 93.11 | 0.2905 | -648.0 | -457.2 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -10.55 | 345.78 | -19.99 | 101.02 | 0.3440 | -867.0 | -669.5 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -9.96 | 342.77 | -23.01 | 98.52 | 0.3910 | -569.0 | -478.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
