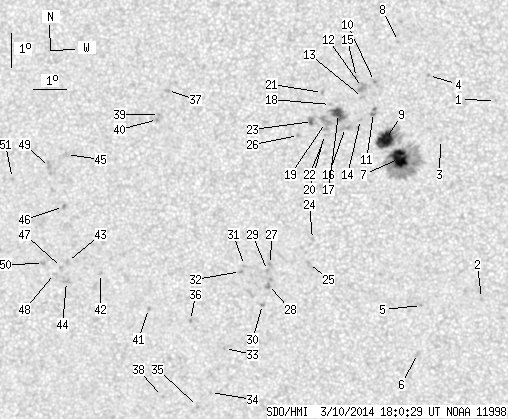

SDO HMI 2014-03-10 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.27 | 252.40 | 22.01 | 126.09 | -10.04 | 358.10 | -6.02 | 116.33 | 0.1176 | 440.0 | 294.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-10 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.52 | -8.24 | 3.01 | -1.11 | 132.64 | 0.0261 | 804.0 | 525.7 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -14.14 | 2.55 | -1.57 | 167.57 | 0.1239 | 638.0 | 519.0 | |
| 0.00 | 1.47 | 0.00 | 0.73 | -9.39 | 1.35 | -2.77 | 128.41 | 0.0612 | -845.0 | -546.8 | |
| 0.00 | 1.13 | 0.00 | 0.56 | -7.48 | 1.00 | -3.12 | 94.87 | 0.0544 | 1023.0 | 800.8 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -14.34 | 0.71 | -3.41 | 155.05 | 0.1374 | 860.0 | 781.9 | |
| 0.00 | 2.60 | 0.00 | 1.30 | -15.78 | 0.56 | -3.56 | 158.12 | 0.1613 | 967.0 | 666.4 | |
| 18.71 | 134.71 | 9.30 | 66.96 | -9.94 | 0.10 | -4.02 | 124.63 | 0.0843 | 1412.4 | 467.4 | |
| 0.00 | 1.13 | 0.00 | 0.56 | -6.46 | 0.11 | -4.01 | 79.34 | 0.0710 | 919.0 | 638.8 | |
| 18.37 | -7.00 | 9.13 | -7.00 | -9.37 | 359.69 | -4.43 | 116.36 | 0.0855 | 1239.0 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -7.64 | 359.38 | -4.74 | 95.35 | 0.0827 | 1098.0 | 912.3 | |
| 0.00 | 4.42 | 0.00 | 2.20 | -8.57 | 359.33 | -4.79 | 106.08 | 0.0863 | 860.0 | 895.0 | |
| 0.00 | 6.41 | 0.00 | 3.19 | -7.82 | 359.01 | -5.11 | 96.97 | 0.0893 | 1021.0 | 904.7 | |
| 0.00 | 1.82 | 0.00 | 0.90 | -8.12 | 359.01 | -5.11 | 100.27 | 0.0901 | 889.0 | 691.1 | |
| 0.00 | 1.39 | 0.00 | 0.69 | -8.77 | 358.94 | -5.18 | 107.07 | 0.0938 | 813.0 | 758.0 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -7.52 | 358.84 | -5.28 | 93.50 | 0.0919 | 861.0 | 673.1 | |
| 0.00 | 5.46 | 0.00 | 2.72 | -9.00 | 358.48 | -5.64 | 108.01 | 0.1025 | 785.0 | 559.8 | |
| 7.19 | 13.17 | 3.58 | 6.56 | -8.58 | 358.28 | -5.84 | 103.56 | 0.1040 | 1095.0 | 811.9 | |
| 0.00 | 1.13 | 0.00 | 0.56 | -8.31 | 358.04 | -6.08 | 100.59 | 0.1071 | 778.0 | 512.8 | |
| 0.00 | 11.61 | 0.00 | 5.79 | -8.84 | 357.88 | -6.24 | 105.08 | 0.1118 | -9.0 | 55.0 | |
| 0.00 | 0.35 | 0.00 | 0.17 | -9.20 | 357.84 | -6.28 | 108.04 | 0.1141 | 633.0 | 677.8 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -7.95 | 357.80 | -6.32 | 96.99 | 0.1103 | 930.0 | 801.5 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -9.44 | 357.78 | -6.34 | 109.84 | 0.1164 | 819.0 | 712.1 | |
| 0.00 | 5.46 | 0.00 | 2.72 | -8.81 | 357.49 | -6.63 | 103.97 | 0.1182 | -778.0 | -430.8 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -12.32 | 357.40 | -6.72 | 128.13 | 0.1459 | 774.0 | 506.4 | |
| 0.00 | 2.17 | 0.00 | 1.09 | -13.04 | 357.26 | -6.86 | 131.28 | 0.1555 | 723.0 | 646.6 | |
| 0.00 | 1.13 | 0.00 | 0.56 | -9.22 | 357.05 | -7.07 | 106.37 | 0.1272 | -951.0 | -815.7 | |
| 0.00 | 2.17 | 0.00 | 1.09 | -13.05 | 356.09 | -8.03 | 127.03 | 0.1712 | 953.0 | 751.2 | |
| 0.00 | 4.59 | 0.00 | 2.31 | -13.65 | 356.01 | -8.11 | 129.50 | 0.1785 | 1108.0 | 864.1 | |
| 0.00 | 1.65 | 0.00 | 0.83 | -13.23 | 355.99 | -8.13 | 127.54 | 0.1744 | 980.0 | 773.7 | |
| 0.00 | 2.17 | 0.00 | 1.09 | -14.24 | 355.80 | -8.32 | 131.34 | 0.1877 | 928.0 | 719.2 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -13.06 | 355.29 | -8.83 | 124.59 | 0.1825 | 726.0 | 579.1 | |
| 0.00 | 1.99 | 0.00 | 1.00 | -13.24 | 355.16 | -8.96 | 125.02 | 0.1860 | 866.0 | 714.6 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -15.54 | 354.56 | -9.56 | 132.42 | 0.2178 | -1004.0 | -816.2 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -16.85 | 354.05 | -10.07 | 135.30 | 0.2390 | -819.0 | -586.4 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -17.27 | 353.62 | -10.50 | 135.37 | 0.2489 | -831.0 | -685.2 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -14.67 | 353.54 | -10.58 | 126.54 | 0.2222 | -944.0 | -884.2 | |
| 0.00 | 2.25 | 0.00 | 1.14 | -7.80 | 353.10 | -11.02 | 93.69 | 0.1907 | -1005.0 | -791.7 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -16.94 | 352.53 | -11.59 | 131.67 | 0.2586 | -776.0 | -580.9 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -8.50 | 352.83 | -11.29 | 97.26 | 0.1961 | -967.0 | -782.9 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -8.65 | 352.76 | -11.36 | 97.98 | 0.1975 | -873.0 | -789.1 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -14.28 | 352.24 | -11.88 | 122.16 | 0.2367 | -1013.0 | -918.1 | |
| 0.00 | 1.65 | 0.00 | 0.84 | -13.19 | 350.80 | -13.32 | 115.54 | 0.2498 | -853.0 | -609.3 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -12.80 | 349.78 | -14.34 | 112.69 | 0.2630 | -1001.0 | -749.9 | |
| 0.00 | 2.77 | 0.00 | 1.42 | -13.40 | 349.71 | -14.41 | 114.70 | 0.2676 | -880.0 | -737.4 | |
| 0.00 | 3.21 | 0.00 | 1.64 | -9.61 | 349.91 | -14.21 | 100.63 | 0.2473 | -883.0 | -685.6 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -11.16 | 349.75 | -14.37 | 106.55 | 0.2552 | -919.0 | -774.7 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -12.98 | 349.58 | -14.54 | 113.05 | 0.2671 | -909.0 | -798.8 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -13.15 | 349.35 | -14.77 | 113.35 | 0.2717 | -590.0 | -403.8 | |
| 0.00 | 4.76 | 0.00 | 2.44 | -9.98 | 349.37 | -14.75 | 101.74 | 0.2573 | -850.0 | -708.7 | |
| 0.00 | 2.25 | 0.00 | 1.16 | -12.84 | 349.02 | -15.10 | 111.88 | 0.2749 | -954.0 | -784.1 | |
| 0.00 | 1.39 | 0.00 | 0.71 | -10.27 | 348.19 | -15.93 | 102.09 | 0.2774 | -667.0 | -461.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
