SDO HMI 2014-03-10 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.72 | 0.00 | 3.81 | -16.34 | 45.45 | 41.88 | 253.51 | 0.6702 | 255.7 | 263.8 | |
|
previous
or next observation for the same group /

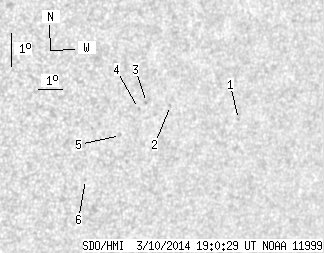

back to the solar disc SDO HMI 2014-03-10 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.61 | -15.90 | 49.05 | 45.49 | 254.75 | 0.7132 | 525.0 | 414.7 | |
| 0.00 | 1.13 | 0.00 | 0.76 | -15.73 | 46.07 | 42.50 | 254.56 | 0.6770 | 666.0 | 571.0 | |
| 0.00 | 0.95 | 0.00 | 0.63 | -15.72 | 45.07 | 41.50 | 254.40 | 0.6645 | 660.0 | 539.3 | |
| 0.00 | 1.04 | 0.00 | 0.68 | -15.93 | 44.79 | 41.22 | 254.04 | 0.6614 | 664.0 | 646.8 | |
| 0.00 | 0.78 | 0.00 | 0.51 | -16.79 | 44.27 | 40.70 | 252.64 | 0.6564 | -542.0 | -504.9 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -18.21 | 43.21 | 39.64 | 250.21 | 0.6464 | -439.0 | -331.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
