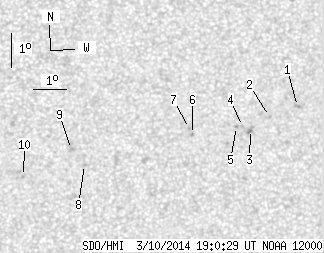

SDO HMI 2014-03-10 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.80 | 0.00 | 8.49 | -10.99 | 14.26 | 10.69 | 247.78 | 0.1972 | 375.2 | 304.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-10 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.25 | 0.00 | 1.15 | -10.07 | 17.52 | 13.95 | 257.36 | 0.2444 | 901.0 | 761.9 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -10.40 | 16.67 | 13.10 | 255.31 | 0.2315 | 804.0 | 620.7 | |
| 0.00 | 3.90 | 0.00 | 1.98 | -10.80 | 16.09 | 12.52 | 252.99 | 0.2238 | 930.0 | 818.1 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -10.72 | 15.84 | 12.27 | 253.06 | 0.2193 | 874.0 | 696.7 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -10.72 | 15.66 | 12.09 | 252.82 | 0.2163 | 966.0 | 784.3 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -10.99 | 14.31 | 10.74 | 249.68 | 0.1959 | 828.0 | 693.8 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -10.81 | 14.21 | 10.64 | 250.39 | 0.1934 | 918.0 | 662.1 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -11.95 | 11.01 | 7.44 | 236.71 | 0.1524 | -635.0 | -521.5 | |
| 0.00 | 2.60 | 0.00 | 1.30 | -11.50 | 10.60 | 7.04 | 237.85 | 0.1424 | -1023.0 | -769.9 | |
| 0.00 | 1.13 | 0.00 | 0.56 | -12.33 | 9.15 | 5.59 | 226.75 | 0.1311 | -811.0 | -650.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
