SDO HMI 2014-03-10 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 174.07 | 678.23 | 115.28 | 449.86 | -18.71 | 322.40 | -41.17 | 110.16 | 0.6652 | -107.9 | -107.7 | |
|
previous
or next observation for the same group /

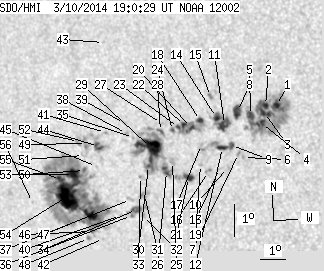

back to the solar disc SDO HMI 2014-03-10 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.21 | 123.71 | 1.96 | 75.99 | -17.39 | 328.30 | -35.26 | 109.80 | 0.5878 | 1186.5 | 530.4 | |
| 2.95 | -1.00 | 1.81 | -1.00 | -17.36 | 327.89 | -35.68 | 109.61 | 0.5932 | 940.7 | 999999 | |
| 6.41 | -1.00 | 3.94 | -1.00 | -17.56 | 327.80 | -35.77 | 109.93 | 0.5950 | 998.4 | 999999 | |
| 4.50 | -1.00 | 2.78 | -1.00 | -17.89 | 327.61 | -35.96 | 110.39 | 0.5984 | 852.8 | 999999 | |
| 4.42 | -1.00 | 2.74 | -1.00 | -17.62 | 327.25 | -36.32 | 109.83 | 0.6024 | 847.2 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.87 | -18.86 | 326.67 | -36.90 | 111.64 | 0.6135 | 648.0 | 596.4 | |
| 0.00 | 2.08 | 0.00 | 1.30 | -18.72 | 326.51 | -37.06 | 111.37 | 0.6152 | 594.0 | 443.9 | |
| 7.10 | 10.05 | 4.42 | 6.26 | -17.46 | 326.78 | -36.79 | 109.43 | 0.6080 | 785.8 | 571.7 | |
| 2.17 | 17.33 | 1.36 | 10.95 | -18.46 | 326.30 | -37.27 | 110.88 | 0.6171 | 693.5 | -168.3 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -19.11 | 325.97 | -37.60 | 111.80 | 0.6232 | 373.0 | 311.7 | |
| 8.84 | 21.74 | 5.55 | 13.67 | -17.81 | 326.18 | -37.38 | 109.81 | 0.6167 | 775.8 | 371.8 | |
| 3.38 | -9.00 | 2.13 | -9.00 | -18.50 | 325.93 | -37.64 | 110.82 | 0.6219 | 575.4 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.82 | -19.12 | 325.64 | -37.92 | 111.70 | 0.6273 | -300.0 | -214.9 | |
| 3.12 | -11.00 | 1.96 | -11.00 | -17.58 | 325.93 | -37.64 | 109.36 | 0.6194 | 658.3 | 999999 | |
| 0.00 | 2.51 | 0.00 | 1.58 | -16.93 | 325.85 | -37.72 | 108.31 | 0.6188 | 771.0 | 652.8 | |
| 0.00 | 2.51 | 0.00 | 1.60 | -19.18 | 325.19 | -38.38 | 111.64 | 0.6332 | -835.0 | -774.5 | |
| 0.00 | 1.13 | 0.00 | 0.72 | -18.34 | 325.13 | -38.44 | 110.33 | 0.6316 | -255.0 | -271.2 | |
| 2.77 | 30.93 | 1.76 | 19.77 | -17.62 | 325.28 | -38.29 | 109.24 | 0.6278 | 531.8 | -259.4 | |
| 0.00 | 1.30 | 0.00 | 0.83 | -18.94 | 324.93 | -38.64 | 111.20 | 0.6358 | -809.0 | -682.1 | |
| 1.91 | -18.00 | 1.22 | -18.00 | -17.80 | 324.87 | -38.70 | 109.41 | 0.6334 | -965.5 | 999999 | |
| 4.59 | 10.14 | 2.96 | 6.56 | -19.30 | 324.34 | -39.23 | 111.56 | 0.6441 | -940.0 | -745.0 | |
| 2.43 | -18.00 | 1.55 | -18.00 | -17.72 | 324.61 | -38.96 | 109.22 | 0.6365 | 376.2 | 999999 | |
| 1.39 | -18.00 | 0.89 | -18.00 | -17.76 | 324.36 | -39.21 | 109.21 | 0.6398 | 486.6 | 999999 | |
| 0.78 | -18.00 | 0.50 | -18.00 | -17.83 | 324.10 | -39.47 | 109.25 | 0.6433 | 703.7 | 999999 | |
| 0.00 | 4.07 | 0.00 | 2.64 | -18.76 | 323.84 | -39.73 | 110.60 | 0.6488 | -706.0 | -673.1 | |
| 4.42 | 94.08 | 2.88 | 61.64 | -19.05 | 323.51 | -40.06 | 110.93 | 0.6536 | -875.4 | -134.4 | |
| 0.00 | 1.21 | 0.00 | 0.79 | -17.59 | 323.71 | -39.85 | 108.78 | 0.6475 | 739.0 | 651.1 | |
| 1.30 | -26.00 | 0.84 | -26.00 | -17.83 | 323.61 | -39.96 | 109.11 | 0.6494 | 663.1 | 999999 | |
| 26.60 | -26.00 | 17.43 | -26.00 | -18.27 | 323.07 | -40.50 | 109.65 | 0.6571 | 705.2 | 999999 | |
| 1.04 | -26.00 | 0.68 | -26.00 | -18.81 | 322.84 | -40.73 | 110.39 | 0.6613 | 535.9 | 999999 | |
| 0.00 | 6.32 | 0.00 | 4.20 | -19.67 | 322.41 | -41.16 | 111.54 | 0.6687 | 756.0 | 579.4 | |
| 0.00 | 1.99 | 0.00 | 1.33 | -20.29 | 322.16 | -41.41 | 112.39 | 0.6733 | 617.0 | 465.7 | |
| 0.00 | 1.21 | 0.00 | 0.80 | -19.11 | 322.41 | -41.16 | 110.72 | 0.6672 | 388.0 | 372.9 | |
| 4.50 | 12.56 | 3.02 | 8.41 | -20.09 | 321.93 | -41.64 | 112.02 | 0.6755 | 717.2 | 454.7 | |
| 0.00 | 1.13 | 0.00 | 0.74 | -17.92 | 322.47 | -41.10 | 108.97 | 0.6637 | 294.0 | 140.5 | |
| 0.35 | -34.00 | 0.23 | -34.00 | -20.25 | 321.66 | -41.91 | 112.19 | 0.6791 | 557.0 | 999999 | |
| 0.00 | 2.86 | 0.00 | 1.92 | -19.77 | 321.78 | -41.79 | 111.51 | 0.6764 | 423.0 | 317.7 | |
| 0.00 | 1.13 | 0.00 | 0.75 | -17.78 | 322.22 | -41.35 | 108.70 | 0.6665 | -498.0 | -331.5 | |
| 0.00 | 0.78 | 0.00 | 0.52 | -17.47 | 322.22 | -41.35 | 108.24 | 0.6658 | 609.0 | 412.8 | |
| 0.00 | 0.87 | 0.00 | 0.59 | -20.22 | 321.20 | -42.37 | 112.00 | 0.6844 | 254.0 | 96.4 | |
| 0.00 | 1.21 | 0.00 | 0.81 | -17.67 | 321.36 | -42.20 | 108.36 | 0.6767 | 424.0 | 300.8 | |
| 0.00 | 0.61 | 0.00 | 0.42 | -20.85 | 320.24 | -43.33 | 112.64 | 0.6971 | -486.0 | -440.0 | |
| 0.00 | 1.04 | 0.00 | 0.69 | -14.99 | 321.99 | -41.57 | 104.48 | 0.6644 | 497.0 | 363.5 | |
| 4.33 | 13.77 | 2.93 | 9.30 | -18.07 | 320.95 | -42.62 | 108.84 | 0.6825 | -938.3 | -552.3 | |
| 0.00 | 0.78 | 0.00 | 0.53 | -18.66 | 320.68 | -42.89 | 109.64 | 0.6870 | 229.0 | 173.0 | |
| 0.87 | 291.77 | 0.60 | 202.78 | -20.59 | 319.80 | -43.76 | 112.17 | 0.7015 | -783.3 | -364.9 | |
| 9.36 | -46.00 | 6.46 | -46.00 | -20.11 | 319.93 | -43.63 | 111.52 | 0.6989 | -1213.2 | 999999 | |
| 0.43 | 1.73 | 0.30 | 1.20 | -20.79 | 319.60 | -43.97 | 112.40 | 0.7044 | -622.2 | -568.2 | |
| 0.00 | 5.89 | 0.00 | 4.01 | -17.94 | 320.47 | -43.09 | 108.55 | 0.6879 | -807.0 | -675.5 | |
| 1.21 | -46.00 | 0.83 | -46.00 | -18.74 | 320.14 | -43.43 | 109.62 | 0.6936 | -852.4 | 999999 | |
| 0.00 | 1.65 | 0.00 | 1.13 | -18.29 | 320.24 | -43.33 | 109.00 | 0.6914 | -691.0 | -580.7 | |
| 0.00 | 4.24 | 0.00 | 2.90 | -17.85 | 320.16 | -43.41 | 108.36 | 0.6916 | -737.0 | -639.1 | |
| 12.04 | -46.00 | 8.32 | -46.00 | -18.82 | 319.63 | -43.94 | 109.63 | 0.6997 | -1058.1 | 999999 | |
| 44.10 | -46.00 | 30.75 | -46.00 | -19.43 | 319.20 | -44.37 | 110.39 | 0.7059 | -950.3 | 999999 | |
| 3.55 | -46.00 | 2.48 | -46.00 | -18.92 | 319.02 | -44.55 | 109.64 | 0.7069 | -737.6 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.68 | -19.50 | 317.56 | -46.01 | 110.14 | 0.7247 | -299.0 | -230.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
