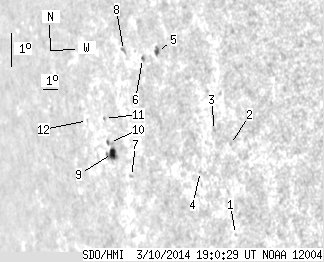

SDO HMI 2014-03-10 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.01 | 27.04 | 8.61 | 32.13 | -8.72 | 297.58 | -65.99 | 96.31 | 0.9094 | -151.9 | -45.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-10 19:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.68 | -12.60 | 303.19 | -60.38 | 100.39 | 0.8646 | 393.0 | 320.0 | |
| 0.00 | 1.13 | 0.00 | 1.09 | -9.94 | 303.82 | -59.75 | 97.28 | 0.8599 | 147.0 | 134.5 | |
| 0.00 | 1.21 | 0.00 | 1.20 | -9.43 | 302.99 | -60.58 | 96.74 | 0.8673 | 98.0 | 141.6 | |
| 0.00 | 1.04 | 0.00 | 1.07 | -10.53 | 301.75 | -61.82 | 98.07 | 0.8773 | 134.0 | 179.4 | |
| 1.47 | 3.73 | 1.61 | 4.07 | -6.72 | 300.03 | -63.54 | 93.88 | 0.8930 | 468.9 | 338.9 | |
| 0.00 | 1.65 | 0.00 | 1.86 | -6.81 | 298.97 | -64.60 | 94.08 | 0.9011 | 470.0 | 350.4 | |
| 0.00 | 1.30 | 0.00 | 1.57 | -10.15 | 297.05 | -66.52 | 97.91 | 0.9133 | -485.0 | -395.0 | |
| 0.00 | 1.65 | 0.00 | 1.96 | -6.42 | 297.70 | -65.87 | 93.77 | 0.9107 | 397.0 | 286.4 | |
| 5.54 | 10.22 | 7.00 | 12.94 | -9.32 | 295.90 | -67.67 | 97.08 | 0.9215 | -555.8 | -251.3 | |
| 0.00 | 2.60 | 0.00 | 3.30 | -8.97 | 295.79 | -67.78 | 96.72 | 0.9224 | -278.0 | -285.7 | |
| 0.00 | 1.04 | 0.00 | 1.33 | -8.23 | 295.67 | -67.90 | 95.93 | 0.9236 | -261.0 | -375.4 | |
| 0.00 | 0.78 | 0.00 | 1.06 | -8.13 | 294.29 | -69.28 | 95.93 | 0.9325 | -305.0 | -273.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
