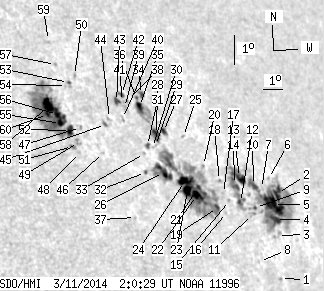

SDO HMI 2014-03-11 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 136.18 | 551.79 | 122.52 | 489.13 | 14.08 | 51.76 | 52.05 | 292.58 | 0.8291 | -69.4 | -8.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-11 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 1.16 | 11.03 | 55.83 | 56.11 | 287.62 | 0.8570 | -447.0 | -380.6 | |
| 6.85 | 171.67 | 6.84 | 167.13 | 13.77 | 56.59 | 56.87 | 290.44 | 0.8700 | -195.8 | -274.7 | |
| 0.00 | 4.08 | 0.00 | 3.97 | 12.40 | 56.09 | 56.38 | 289.07 | 0.8626 | -400.0 | -442.0 | |
| 6.24 | -2.00 | 6.11 | -2.00 | 12.91 | 56.16 | 56.44 | 289.62 | 0.8644 | -654.2 | 999999 | |
| 21.85 | -2.00 | 21.50 | -2.00 | 13.39 | 56.22 | 56.50 | 290.13 | 0.8661 | -597.4 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.77 | 14.21 | 56.25 | 56.53 | 291.03 | 0.8684 | -236.0 | -219.2 | |
| 0.00 | 1.39 | 0.00 | 1.35 | 13.84 | 55.72 | 56.00 | 290.79 | 0.8631 | -284.0 | -240.5 | |
| 0.00 | 0.61 | 0.00 | 0.57 | 11.45 | 54.81 | 55.10 | 288.42 | 0.8493 | -389.0 | -364.3 | |
| 0.95 | -2.00 | 0.91 | -2.00 | 13.18 | 55.15 | 55.44 | 290.25 | 0.8567 | -592.5 | 999999 | |
| 5.72 | -2.00 | 5.51 | -2.00 | 13.89 | 55.29 | 55.58 | 290.99 | 0.8598 | -524.7 | 999999 | |
| 0.00 | 3.21 | 0.00 | 3.03 | 12.93 | 54.91 | 55.19 | 290.05 | 0.8540 | -717.0 | -666.9 | |
| 2.17 | -2.00 | 2.03 | -2.00 | 13.25 | 54.37 | 54.66 | 290.60 | 0.8503 | -731.8 | 999999 | |
| 8.84 | -2.00 | 8.37 | -2.00 | 14.06 | 54.60 | 54.89 | 291.43 | 0.8545 | -554.0 | 999999 | |
| 4.86 | -2.00 | 4.55 | -2.00 | 13.80 | 54.24 | 54.53 | 291.26 | 0.8507 | -674.4 | 999999 | |
| 0.00 | 1.13 | 0.00 | 1.04 | 13.25 | 53.79 | 54.07 | 290.80 | 0.8453 | -479.0 | -435.5 | |
| 0.00 | 0.52 | 0.00 | 0.47 | 12.85 | 53.50 | 53.79 | 290.44 | 0.8416 | -514.0 | -424.7 | |
| 0.00 | 1.39 | 0.00 | 1.27 | 13.45 | 53.54 | 53.82 | 291.11 | 0.8437 | -368.0 | -394.1 | |
| 0.00 | 1.13 | 0.00 | 1.04 | 13.85 | 53.47 | 53.75 | 291.59 | 0.8442 | -541.0 | -412.6 | |
| 2.34 | 167.08 | 2.11 | 147.03 | 12.96 | 53.07 | 53.36 | 290.72 | 0.8381 | -368.1 | -19.6 | |
| 0.00 | 0.95 | 0.00 | 0.86 | 14.25 | 52.78 | 53.06 | 292.29 | 0.8394 | -493.0 | -436.5 | |
| 1.82 | -19.00 | 1.62 | -19.00 | 13.50 | 52.27 | 52.56 | 291.63 | 0.8327 | -377.9 | 999999 | |
| 6.76 | -19.00 | 5.98 | -19.00 | 13.23 | 52.09 | 52.37 | 291.39 | 0.8302 | 474.6 | 999999 | |
| 6.59 | -19.00 | 5.77 | -19.00 | 13.35 | 51.67 | 51.96 | 291.68 | 0.8268 | 686.2 | 999999 | |
| 8.24 | -19.00 | 7.22 | -19.00 | 13.63 | 51.61 | 51.89 | 292.02 | 0.8271 | 528.7 | 999999 | |
| 0.00 | 1.13 | 0.00 | 1.01 | 15.10 | 52.05 | 52.33 | 293.53 | 0.8357 | -556.0 | -478.6 | |
| 10.06 | -19.00 | 8.63 | -19.00 | 13.81 | 50.63 | 50.91 | 292.61 | 0.8187 | -75.2 | 999999 | |
| 2.34 | 39.62 | 2.05 | 34.37 | 15.15 | 51.06 | 51.35 | 293.98 | 0.8272 | -350.7 | -205.5 | |
| 5.72 | -27.00 | 4.96 | -27.00 | 15.02 | 50.67 | 50.96 | 293.99 | 0.8232 | -588.7 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.60 | 14.65 | 50.50 | 50.79 | 293.63 | 0.8204 | -590.0 | -593.8 | |
| 0.00 | 1.56 | 0.00 | 1.34 | 14.57 | 50.33 | 50.61 | 293.61 | 0.8186 | -586.0 | -574.8 | |
| 1.21 | 2.60 | 1.04 | 2.22 | 14.61 | 50.10 | 50.38 | 293.75 | 0.8166 | -657.6 | -590.8 | |
| 0.52 | 1.56 | 0.44 | 1.31 | 13.72 | 49.73 | 50.01 | 292.87 | 0.8101 | 126.8 | 40.0 | |
| 0.00 | 0.69 | 0.00 | 0.59 | 14.33 | 49.87 | 50.15 | 293.53 | 0.8135 | -584.0 | -539.8 | |
| 1.91 | -27.00 | 1.66 | -27.00 | 16.27 | 50.37 | 50.65 | 295.53 | 0.8249 | 329.0 | 999999 | |
| 4.51 | -27.00 | 3.89 | -27.00 | 15.86 | 50.12 | 50.41 | 295.17 | 0.8213 | 152.7 | 999999 | |
| 0.52 | -27.00 | 0.45 | -27.00 | 16.14 | 50.08 | 50.36 | 295.51 | 0.8219 | 519.7 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.49 | 12.22 | 48.84 | 49.13 | 291.46 | 0.7963 | 431.0 | 352.3 | |
| 0.00 | 1.30 | 0.00 | 1.11 | 16.00 | 49.59 | 49.88 | 295.55 | 0.8169 | 346.0 | 268.1 | |
| 0.00 | 1.56 | 0.00 | 1.32 | 15.75 | 49.36 | 49.65 | 295.37 | 0.8140 | -133.0 | -73.4 | |
| 0.00 | 1.82 | 0.00 | 1.53 | 15.38 | 49.14 | 49.43 | 295.04 | 0.8106 | 300.0 | 253.5 | |
| 0.00 | 0.61 | 0.00 | 0.52 | 15.94 | 49.33 | 49.61 | 295.60 | 0.8144 | 250.0 | 253.0 | |
| 1.21 | 7.20 | 1.03 | 6.10 | 16.17 | 49.36 | 49.64 | 295.85 | 0.8155 | 424.1 | 425.1 | |
| 2.51 | -42.00 | 2.12 | -42.00 | 15.91 | 49.03 | 49.32 | 295.70 | 0.8115 | 552.7 | 999999 | |
| 0.00 | 1.65 | 0.00 | 1.37 | 15.31 | 48.51 | 48.79 | 295.24 | 0.8044 | 355.0 | 287.3 | |
| 0.52 | 2.17 | 0.43 | 1.78 | 15.10 | 48.25 | 48.53 | 295.10 | 0.8012 | 495.2 | 486.4 | |
| 0.00 | 1.04 | 0.00 | 0.84 | 14.17 | 47.88 | 48.17 | 294.18 | 0.7941 | 467.0 | 367.8 | |
| 0.00 | 1.30 | 0.00 | 1.04 | 14.88 | 47.03 | 47.31 | 295.40 | 0.7887 | 427.0 | 388.1 | |
| 0.00 | 1.13 | 0.00 | 0.89 | 14.06 | 46.75 | 47.04 | 294.56 | 0.7827 | 486.0 | 424.2 | |
| 0.00 | 3.12 | 0.00 | 2.48 | 14.38 | 46.80 | 47.08 | 294.92 | 0.7845 | 571.0 | 536.8 | |
| 0.00 | 1.56 | 0.00 | 1.28 | 16.57 | 47.28 | 47.56 | 297.26 | 0.7980 | 395.0 | 341.3 | |
| 0.00 | 2.60 | 0.00 | 2.05 | 14.23 | 46.48 | 46.77 | 294.88 | 0.7807 | 633.0 | 573.9 | |
| 5.20 | 115.49 | 4.12 | 90.64 | 14.74 | 46.53 | 46.82 | 295.46 | 0.7834 | 567.4 | 471.9 | |
| 0.69 | 2.34 | 0.56 | 1.90 | 16.31 | 46.92 | 47.20 | 297.13 | 0.7935 | 454.5 | 455.4 | |
| 0.00 | 1.30 | 0.00 | 1.05 | 16.20 | 46.79 | 47.08 | 297.06 | 0.7919 | 498.0 | 389.1 | |
| 2.77 | -52.00 | 2.19 | -52.00 | 14.93 | 46.14 | 46.42 | 295.87 | 0.7802 | 795.5 | 999999 | |
| 3.29 | -52.00 | 2.60 | -52.00 | 15.21 | 46.08 | 46.37 | 296.23 | 0.7809 | 714.9 | 999999 | |
| 0.00 | 1.30 | 0.00 | 1.05 | 16.85 | 46.50 | 46.78 | 297.96 | 0.7919 | 398.0 | 309.4 | |
| 9.19 | -52.00 | 7.22 | -52.00 | 15.46 | 45.75 | 46.04 | 296.69 | 0.7788 | 837.5 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.56 | 17.62 | 46.44 | 46.72 | 298.88 | 0.7947 | 322.0 | 277.8 | |
| 0.78 | -52.00 | 0.61 | -52.00 | 15.16 | 45.62 | 45.91 | 296.40 | 0.7762 | 922.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
