SDO HMI 2014-03-11 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 210.42 | 860.90 | 131.07 | 539.87 | -18.77 | 322.76 | -36.96 | 111.53 | 0.6128 | -35.7 | -131.6 | |
|
previous
or next observation for the same group /

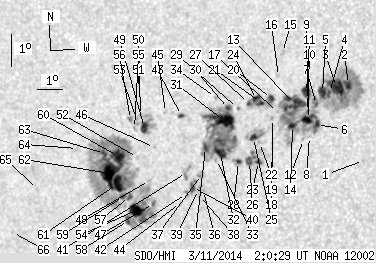

back to the solar disc SDO HMI 2014-03-11 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.51 | -19.68 | 328.70 | -31.01 | 115.59 | 0.5400 | 664.0 | 594.3 | |
| 5.38 | 255.43 | 3.14 | 151.16 | -17.35 | 328.63 | -31.09 | 111.36 | 0.5313 | 1246.5 | 307.2 | |
| 17.34 | -2.00 | 10.17 | -2.00 | -17.41 | 328.18 | -31.54 | 111.28 | 0.5377 | 1023.5 | 999999 | |
| 0.87 | -2.00 | 0.51 | -2.00 | -17.54 | 327.89 | -31.82 | 111.39 | 0.5421 | 992.6 | 999999 | |
| 6.33 | -2.00 | 3.73 | -2.00 | -17.53 | 327.64 | -32.08 | 111.25 | 0.5455 | 866.8 | 999999 | |
| 3.55 | -2.00 | 2.11 | -2.00 | -18.48 | 327.22 | -32.50 | 112.74 | 0.5547 | 693.5 | 999999 | |
| 1.04 | -2.00 | 0.62 | -2.00 | -17.87 | 327.35 | -32.37 | 111.74 | 0.5507 | 825.2 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -18.82 | 326.88 | -32.83 | 113.19 | 0.5605 | 142.0 | 105.3 | |
| 8.50 | -2.00 | 5.06 | -2.00 | -18.31 | 326.96 | -32.76 | 112.33 | 0.5575 | 794.1 | 999999 | |
| 0.61 | -2.00 | 0.36 | -2.00 | -18.06 | 326.97 | -32.74 | 111.91 | 0.5564 | 641.3 | 999999 | |
| 6.24 | -2.00 | 3.71 | -2.00 | -17.49 | 327.05 | -32.66 | 110.94 | 0.5533 | 901.0 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -18.90 | 326.64 | -33.08 | 113.21 | 0.5640 | 159.0 | 174.5 | |
| 17.17 | -2.00 | 10.26 | -2.00 | -17.79 | 326.54 | -33.17 | 111.26 | 0.5612 | 794.0 | 999999 | |
| 3.64 | -2.00 | 2.19 | -2.00 | -18.45 | 326.33 | -33.39 | 112.30 | 0.5664 | 735.9 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.24 | -16.23 | 326.41 | -33.30 | 108.47 | 0.5580 | 614.0 | 529.8 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -16.94 | 326.12 | -33.59 | 109.61 | 0.5641 | 585.0 | 450.2 | |
| 0.00 | 0.52 | 0.00 | 0.31 | -18.02 | 325.85 | -33.86 | 111.37 | 0.5712 | -284.0 | -278.8 | |
| 0.00 | 1.21 | 0.00 | 0.73 | -18.19 | 325.63 | -34.09 | 111.57 | 0.5747 | 11.0 | 36.6 | |
| 0.00 | 1.04 | 0.00 | 0.63 | -18.94 | 325.45 | -34.26 | 112.76 | 0.5797 | -388.0 | -253.0 | |
| 2.43 | 22.98 | 1.46 | 13.91 | -17.58 | 325.72 | -33.99 | 110.57 | 0.5715 | 431.1 | -69.5 | |
| 3.29 | -20.00 | 2.00 | -20.00 | -17.67 | 325.29 | -34.43 | 110.57 | 0.5776 | -807.8 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.85 | -18.87 | 324.97 | -34.74 | 112.46 | 0.5857 | -764.0 | -605.6 | |
| 2.34 | 14.39 | 1.43 | 8.83 | -19.45 | 324.79 | -34.92 | 113.33 | 0.5901 | -944.8 | -857.4 | |
| 4.08 | -20.00 | 2.47 | -20.00 | -17.57 | 325.16 | -34.56 | 110.35 | 0.5790 | 103.2 | 999999 | |
| 3.55 | 16.13 | 2.17 | 9.84 | -18.71 | 324.78 | -34.93 | 112.11 | 0.5876 | -955.2 | -569.7 | |
| 3.55 | -23.00 | 2.19 | -23.00 | -19.42 | 324.45 | -35.26 | 113.15 | 0.5944 | -852.6 | 999999 | |
| 1.47 | -20.00 | 0.90 | -20.00 | -17.67 | 324.83 | -34.89 | 110.40 | 0.5836 | 671.1 | 999999 | |
| 1.99 | 4.94 | 1.23 | 3.06 | -19.39 | 324.03 | -35.68 | 112.93 | 0.5997 | -872.9 | -650.6 | |
| 0.00 | 1.13 | 0.00 | 0.69 | -17.79 | 324.38 | -35.33 | 110.44 | 0.5899 | 739.0 | 652.8 | |
| 2.43 | 134.13 | 1.49 | 83.15 | -17.77 | 324.04 | -35.67 | 110.28 | 0.5943 | 748.6 | -212.0 | |
| 22.89 | -30.00 | 14.13 | -30.00 | -18.11 | 323.76 | -35.95 | 110.76 | 0.5990 | 831.5 | 999999 | |
| 8.50 | -30.00 | 5.28 | -30.00 | -19.07 | 323.41 | -36.30 | 112.18 | 0.6066 | -1032.4 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.19 | -19.27 | 323.20 | -36.51 | 112.42 | 0.6099 | -430.0 | -401.8 | |
| 0.00 | 1.30 | 0.00 | 0.80 | -17.40 | 323.62 | -36.09 | 109.54 | 0.5987 | 654.0 | 515.7 | |
| 3.47 | -30.00 | 2.17 | -30.00 | -18.88 | 322.87 | -36.84 | 111.68 | 0.6128 | 260.5 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.77 | -20.17 | 322.44 | -37.27 | 113.56 | 0.6225 | 725.0 | 635.2 | |
| 0.00 | 4.68 | 0.00 | 2.95 | -19.68 | 322.50 | -37.22 | 112.81 | 0.6201 | 742.0 | 547.2 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -20.31 | 322.24 | -37.47 | 113.70 | 0.6254 | 386.0 | 380.4 | |
| 0.00 | 3.47 | 0.00 | 2.19 | -20.12 | 322.25 | -37.46 | 113.42 | 0.6246 | 758.0 | 603.9 | |
| 2.95 | 6.50 | 1.87 | 4.12 | -20.04 | 322.04 | -37.68 | 113.22 | 0.6271 | 842.8 | 672.5 | |
| 0.00 | 6.68 | 0.00 | 4.23 | -19.57 | 321.93 | -37.79 | 112.45 | 0.6269 | 447.0 | 286.9 | |
| 0.00 | 1.91 | 0.00 | 1.22 | -20.21 | 321.75 | -37.97 | 113.37 | 0.6312 | 524.0 | 455.5 | |
| 1.56 | 3.21 | 0.98 | 2.02 | -17.85 | 322.19 | -37.53 | 109.81 | 0.6186 | -755.9 | -552.4 | |
| 0.00 | 1.13 | 0.00 | 0.72 | -20.46 | 321.43 | -38.28 | 113.64 | 0.6360 | 346.0 | 247.1 | |
| 0.00 | 1.39 | 0.00 | 0.88 | -17.71 | 321.58 | -38.13 | 109.41 | 0.6259 | -547.0 | -479.2 | |
| 0.00 | 1.04 | 0.00 | 0.67 | -18.73 | 320.87 | -38.84 | 110.79 | 0.6376 | 378.0 | 187.3 | |
| 1.21 | 330.52 | 0.79 | 217.65 | -20.41 | 320.34 | -39.37 | 113.18 | 0.6491 | -933.8 | -364.7 | |
| 0.00 | 1.04 | 0.00 | 0.67 | -19.70 | 320.39 | -39.32 | 112.13 | 0.6464 | -441.0 | -429.6 | |
| 6.16 | 20.55 | 3.95 | 13.18 | -18.09 | 320.64 | -39.07 | 109.75 | 0.6389 | -971.6 | -547.9 | |
| 0.00 | 1.13 | 0.00 | 0.72 | -17.72 | 320.58 | -39.14 | 109.16 | 0.6388 | -795.0 | -727.1 | |
| 0.00 | 0.87 | 0.00 | 0.56 | -17.18 | 320.68 | -39.04 | 108.34 | 0.6362 | 456.0 | 323.4 | |
| 0.00 | 1.56 | 0.00 | 1.01 | -18.97 | 320.11 | -39.60 | 110.94 | 0.6478 | -280.0 | -279.8 | |
| 0.00 | 1.04 | 0.00 | 0.67 | -17.80 | 320.40 | -39.32 | 109.23 | 0.6413 | -774.0 | -625.2 | |
| 12.40 | -47.00 | 8.14 | -47.00 | -20.56 | 319.55 | -40.17 | 113.15 | 0.6592 | -1075.5 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.12 | -18.09 | 320.24 | -39.48 | 109.63 | 0.6440 | -595.0 | -504.5 | |
| 0.78 | 2.95 | 0.50 | 1.90 | -17.81 | 320.15 | -39.57 | 109.18 | 0.6444 | -733.8 | -605.8 | |
| 2.17 | -47.00 | 1.42 | -47.00 | -20.12 | 319.44 | -40.28 | 112.46 | 0.6592 | -955.5 | 999999 | |
| 3.29 | -47.00 | 2.18 | -47.00 | -20.84 | 319.16 | -40.55 | 113.44 | 0.6646 | -661.2 | 999999 | |
| 2.60 | -47.00 | 1.71 | -47.00 | -20.10 | 319.19 | -40.52 | 112.36 | 0.6621 | -734.2 | 999999 | |
| 10.32 | -47.00 | 6.76 | -47.00 | -18.88 | 319.36 | -40.36 | 110.59 | 0.6569 | -1139.2 | 999999 | |
| 10.75 | -47.00 | 7.09 | -47.00 | -19.69 | 319.07 | -40.65 | 111.71 | 0.6625 | -1056.2 | 999999 | |
| 23.32 | -47.00 | 15.41 | -47.00 | -19.36 | 318.84 | -40.88 | 111.16 | 0.6644 | -899.4 | 999999 | |
| 2.25 | -47.00 | 1.49 | -47.00 | -18.75 | 318.81 | -40.90 | 110.24 | 0.6632 | -788.4 | 999999 | |
| 0.00 | 2.86 | 0.00 | 1.92 | -18.51 | 317.75 | -41.97 | 109.62 | 0.6755 | -251.0 | -42.6 | |
| 0.00 | 0.95 | 0.00 | 0.66 | -19.59 | 315.67 | -44.05 | 110.69 | 0.7025 | -493.0 | -434.3 | |
| 0.00 | 1.04 | 0.00 | 0.74 | -20.79 | 314.10 | -45.61 | 111.98 | 0.7228 | -449.0 | -341.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
