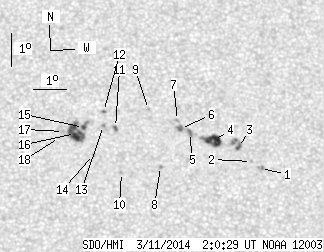

SDO HMI 2014-03-11 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.17 | 73.34 | 15.72 | 38.25 | 6.36 | 11.62 | 11.90 | 318.97 | 0.3126 | 104.1 | -144.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-11 02:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.47 | 0.00 | 1.83 | 5.54 | 14.81 | 15.10 | 309.92 | 0.3395 | -734.0 | -708.7 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 5.74 | 14.54 | 14.82 | 310.90 | 0.3383 | -766.0 | -590.2 | |
| 1.21 | 8.67 | 0.64 | 4.56 | 6.16 | 14.15 | 14.43 | 312.59 | 0.3381 | -908.5 | -746.3 | |
| 11.18 | 16.82 | 5.87 | 8.82 | 6.35 | 13.38 | 13.67 | 314.59 | 0.3312 | -979.4 | -668.5 | |
| 0.00 | 3.21 | 0.00 | 1.68 | 6.57 | 12.65 | 12.93 | 316.66 | 0.3254 | -751.0 | -697.4 | |
| 1.39 | 3.81 | 0.73 | 2.00 | 6.69 | 12.37 | 12.66 | 317.52 | 0.3237 | -1048.6 | -756.1 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 6.93 | 12.29 | 12.57 | 318.22 | 0.3258 | -634.0 | -414.8 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 5.51 | 11.73 | 12.02 | 316.44 | 0.3021 | 859.0 | 717.6 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 7.25 | 11.41 | 11.69 | 320.92 | 0.3204 | -744.0 | -573.9 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 5.30 | 10.54 | 10.82 | 318.97 | 0.2861 | 649.0 | 512.2 | |
| 0.69 | 2.34 | 0.36 | 1.22 | 6.67 | 10.38 | 10.67 | 322.34 | 0.3023 | 882.9 | 714.7 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 7.15 | 10.03 | 10.31 | 324.23 | 0.3053 | -624.0 | -576.8 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 6.72 | 10.02 | 10.30 | 323.41 | 0.2994 | 896.0 | 717.2 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 5.83 | 9.70 | 9.98 | 322.44 | 0.2841 | 815.0 | 693.3 | |
| 1.39 | 24.62 | 0.72 | 12.73 | 6.65 | 9.41 | 9.69 | 324.93 | 0.2924 | 886.7 | 757.0 | |
| 14.31 | -15.00 | 7.40 | -15.00 | 6.46 | 9.16 | 9.45 | 325.26 | 0.2875 | 1042.3 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 6.51 | 8.80 | 9.08 | 326.41 | 0.2848 | 858.0 | 698.7 | |
| 0.00 | 0.61 | 0.00 | 0.31 | 6.33 | 8.67 | 8.96 | 326.41 | 0.2810 | 709.0 | 584.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
