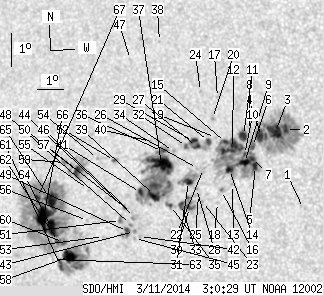

SDO HMI 2014-03-11 03:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 210.63 | 858.05 | 130.33 | 533.43 | -18.72 | 322.95 | -36.22 | 111.71 | 0.6032 | 13.2 | -131.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-11 03:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.35 | 0.00 | 0.20 | -19.81 | 328.83 | -30.34 | 116.21 | 0.5317 | 526.0 | 591.8 | |
| 4.08 | 127.65 | 2.37 | 74.33 | -17.39 | 328.66 | -30.51 | 111.70 | 0.5235 | 1258.7 | 518.2 | |
| 14.74 | -2.00 | 8.59 | -2.00 | -17.42 | 328.29 | -30.88 | 111.60 | 0.5288 | 1088.8 | 999999 | |
| 9.80 | -2.00 | 5.74 | -2.00 | -17.54 | 327.75 | -31.41 | 111.57 | 0.5365 | 902.5 | 999999 | |
| 3.30 | 133.46 | 1.94 | 79.20 | -18.43 | 327.35 | -31.81 | 112.98 | 0.5454 | 796.0 | 139.3 | |
| 2.86 | -5.00 | 1.69 | -5.00 | -17.82 | 327.37 | -31.80 | 111.90 | 0.5428 | 950.0 | 999999 | |
| 2.08 | -5.00 | 1.23 | -5.00 | -18.18 | 327.26 | -31.91 | 112.49 | 0.5457 | 1079.6 | 999999 | |
| 0.00 | 2.51 | 0.00 | 1.48 | -17.33 | 327.35 | -31.81 | 111.02 | 0.5412 | 409.0 | 431.1 | |
| 5.38 | -5.00 | 3.18 | -5.00 | -18.28 | 326.98 | -32.19 | 112.54 | 0.5499 | 856.2 | 999999 | |
| 1.13 | -5.00 | 0.67 | -5.00 | -18.04 | 327.03 | -32.14 | 112.14 | 0.5483 | 686.2 | 999999 | |
| 5.81 | -5.00 | 3.43 | -5.00 | -17.47 | 327.11 | -32.06 | 111.15 | 0.5451 | 914.1 | 999999 | |
| 14.40 | -5.00 | 8.54 | -5.00 | -17.83 | 326.62 | -32.54 | 111.59 | 0.5529 | 812.3 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.93 | -18.92 | 326.39 | -32.78 | 113.38 | 0.5601 | -196.0 | -203.2 | |
| 4.16 | -5.00 | 2.48 | -5.00 | -18.46 | 326.38 | -32.79 | 112.58 | 0.5585 | 751.9 | 999999 | |
| 2.08 | -5.00 | 1.24 | -5.00 | -17.64 | 326.40 | -32.76 | 111.15 | 0.5552 | 796.4 | 999999 | |
| 0.43 | 1.99 | 0.26 | 1.20 | -19.07 | 325.94 | -33.23 | 113.44 | 0.5666 | -753.2 | -515.4 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -16.26 | 326.38 | -32.79 | 108.72 | 0.5510 | 688.0 | 470.0 | |
| 0.00 | 1.30 | 0.00 | 0.78 | -19.42 | 325.71 | -33.46 | 113.93 | 0.5711 | 101.0 | 123.3 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -17.46 | 326.07 | -33.10 | 110.71 | 0.5591 | 434.0 | 348.2 | |
| 0.00 | 1.39 | 0.00 | 0.83 | -16.88 | 326.07 | -33.09 | 109.70 | 0.5571 | 735.0 | 595.9 | |
| 2.17 | 22.55 | 1.30 | 13.56 | -17.56 | 325.78 | -33.38 | 110.78 | 0.5633 | 611.4 | -72.4 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -18.36 | 325.42 | -33.74 | 112.01 | 0.5708 | -216.0 | -228.2 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -19.36 | 325.15 | -34.01 | 113.57 | 0.5780 | -721.0 | -606.1 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -16.04 | 325.79 | -33.38 | 108.12 | 0.5585 | 611.0 | 462.1 | |
| 0.00 | 1.47 | 0.00 | 0.89 | -19.13 | 325.05 | -34.11 | 113.16 | 0.5785 | -332.0 | -311.9 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -18.35 | 325.20 | -33.97 | 111.89 | 0.5737 | 261.0 | 173.8 | |
| 3.30 | -21.00 | 1.98 | -21.00 | -17.68 | 325.31 | -33.86 | 110.80 | 0.5700 | -895.9 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.63 | -18.95 | 325.02 | -34.14 | 112.83 | 0.5782 | -895.0 | -720.2 | |
| 4.34 | -21.00 | 2.61 | -21.00 | -17.52 | 325.23 | -33.94 | 110.50 | 0.5706 | 169.9 | 999999 | |
| 3.12 | 17.69 | 1.90 | 10.79 | -19.50 | 324.62 | -34.55 | 113.58 | 0.5855 | -855.0 | -802.5 | |
| 4.42 | 17.86 | 2.69 | 10.84 | -18.72 | 324.77 | -34.40 | 112.34 | 0.5807 | -996.1 | -583.1 | |
| 1.30 | -21.00 | 0.79 | -21.00 | -17.66 | 324.93 | -34.23 | 110.61 | 0.5749 | 646.8 | 999999 | |
| 1.82 | -30.00 | 1.11 | -30.00 | -19.39 | 324.34 | -34.83 | 113.28 | 0.5887 | -871.4 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.79 | -17.77 | 324.42 | -34.75 | 110.62 | 0.5822 | 859.0 | 620.3 | |
| 0.95 | 138.23 | 0.59 | 85.07 | -19.39 | 323.91 | -35.25 | 113.11 | 0.5942 | -866.4 | -281.5 | |
| 2.86 | -35.00 | 1.75 | -35.00 | -17.74 | 324.00 | -35.17 | 110.42 | 0.5876 | 571.9 | 999999 | |
| 25.76 | -35.00 | 15.77 | -35.00 | -18.13 | 323.87 | -35.29 | 111.02 | 0.5905 | 810.6 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -14.44 | 324.56 | -34.61 | 104.97 | 0.5715 | 647.0 | 529.3 | |
| 8.06 | -35.00 | 4.98 | -35.00 | -19.05 | 323.38 | -35.79 | 112.34 | 0.5998 | -1052.3 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.69 | -17.41 | 323.62 | -35.55 | 109.73 | 0.5916 | 709.0 | 595.4 | |
| 3.04 | -35.00 | 1.89 | -35.00 | -18.92 | 322.87 | -36.30 | 111.94 | 0.6060 | 280.8 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.87 | -20.24 | 322.47 | -36.69 | 113.90 | 0.6155 | 711.0 | 486.1 | |
| 0.00 | 1.56 | 0.00 | 0.98 | -20.08 | 322.32 | -36.85 | 113.58 | 0.6168 | 847.0 | 763.8 | |
| 0.00 | 3.38 | 0.00 | 2.12 | -19.65 | 322.44 | -36.73 | 112.96 | 0.6139 | 856.0 | 693.2 | |
| 0.00 | 1.21 | 0.00 | 0.76 | -20.29 | 322.26 | -36.90 | 113.89 | 0.6183 | 376.0 | 319.9 | |
| 0.00 | 1.30 | 0.00 | 0.81 | -19.52 | 322.35 | -36.81 | 112.72 | 0.6145 | 552.0 | 472.7 | |
| 0.00 | 1.04 | 0.00 | 0.64 | -14.90 | 323.38 | -35.79 | 105.47 | 0.5886 | 435.0 | 297.8 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -19.85 | 322.22 | -36.94 | 113.19 | 0.6173 | 832.0 | 728.2 | |
| 3.12 | 5.98 | 1.97 | 3.77 | -20.06 | 322.05 | -37.12 | 113.44 | 0.6202 | 813.7 | 559.4 | |
| 0.43 | 1.91 | 0.27 | 1.20 | -19.32 | 322.13 | -37.04 | 112.32 | 0.6167 | 501.2 | 347.9 | |
| 0.87 | 3.56 | 0.55 | 2.24 | -19.70 | 321.87 | -37.30 | 112.82 | 0.6213 | 599.2 | 413.3 | |
| 0.95 | 2.17 | 0.60 | 1.36 | -17.88 | 322.11 | -37.06 | 110.01 | 0.6127 | -853.2 | -699.4 | |
| 0.00 | 0.69 | 0.00 | 0.44 | -20.14 | 321.06 | -38.10 | 113.21 | 0.6327 | 277.0 | 215.9 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -17.77 | 321.46 | -37.71 | 109.64 | 0.6207 | -711.0 | -631.0 | |
| 0.00 | 1.21 | 0.00 | 0.77 | -18.68 | 320.87 | -38.30 | 110.88 | 0.6307 | 275.0 | 173.6 | |
| 0.00 | 0.69 | 0.00 | 0.44 | -19.61 | 320.57 | -38.60 | 112.22 | 0.6372 | 172.0 | 182.2 | |
| 5.72 | 29.22 | 3.65 | 18.63 | -18.10 | 320.58 | -38.59 | 109.90 | 0.6328 | -982.9 | -558.4 | |
| 13.18 | 318.52 | 8.60 | 208.34 | -20.64 | 319.52 | -39.65 | 113.43 | 0.6531 | -1066.3 | -363.8 | |
| 0.00 | 2.95 | 0.00 | 1.89 | -17.79 | 320.14 | -39.03 | 109.29 | 0.6376 | -759.0 | -648.2 | |
| 1.82 | -58.00 | 1.19 | -58.00 | -20.19 | 319.41 | -39.76 | 112.74 | 0.6531 | -922.6 | 999999 | |
| 3.47 | -58.00 | 2.28 | -58.00 | -20.88 | 319.07 | -40.10 | 113.65 | 0.6593 | -619.6 | 999999 | |
| 1.99 | -58.00 | 1.30 | -58.00 | -20.15 | 319.22 | -39.95 | 112.61 | 0.6553 | -752.0 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.51 | -20.67 | 318.80 | -40.37 | 113.25 | 0.6619 | -216.0 | -134.6 | |
| 11.27 | -58.00 | 7.38 | -58.00 | -19.70 | 319.06 | -40.10 | 111.89 | 0.6559 | -1059.5 | 999999 | |
| 11.62 | -58.00 | 7.56 | -58.00 | -18.89 | 319.30 | -39.86 | 110.74 | 0.6508 | -1153.0 | 999999 | |
| 22.37 | -58.00 | 14.67 | -58.00 | -19.38 | 318.83 | -40.34 | 111.34 | 0.6579 | -932.0 | 999999 | |
| 2.43 | -58.00 | 1.59 | -58.00 | -18.76 | 318.76 | -40.40 | 110.39 | 0.6571 | -729.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
