SDO HMI 2014-03-11 03:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.24 | 16.30 | 6.64 | 16.83 | -8.83 | 297.20 | -61.96 | 96.13 | 0.8788 | -197.1 | 18.2 | |
|
previous
or next observation for the same group /

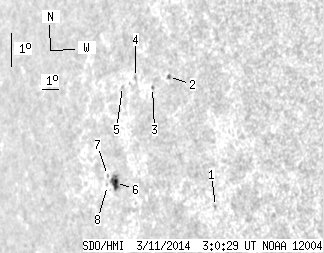

back to the solar disc SDO HMI 2014-03-11 03:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 1.01 | -10.76 | 301.94 | -57.23 | 98.15 | 0.8366 | 394.0 | 388.8 | |
| 0.00 | 1.47 | 0.00 | 1.39 | -6.67 | 300.26 | -58.91 | 93.40 | 0.8542 | 596.0 | 540.1 | |
| 0.00 | 0.95 | 0.00 | 0.93 | -6.89 | 299.26 | -59.91 | 93.75 | 0.8629 | 470.0 | 418.1 | |
| 0.00 | 0.87 | 0.00 | 0.87 | -6.48 | 298.30 | -60.86 | 93.37 | 0.8714 | 277.0 | 354.2 | |
| 0.00 | 0.78 | 0.00 | 0.80 | -6.66 | 297.45 | -61.72 | 93.65 | 0.8785 | 304.0 | 196.7 | |
| 6.24 | 9.89 | 6.64 | 10.52 | -9.42 | 296.23 | -62.93 | 96.86 | 0.8867 | -648.1 | -403.1 | |
| 0.00 | 0.95 | 0.00 | 1.03 | -9.15 | 295.78 | -63.39 | 96.60 | 0.8905 | -294.0 | -218.7 | |
| 0.00 | 0.26 | 0.00 | 0.28 | -9.44 | 295.68 | -63.48 | 96.93 | 0.8911 | -133.0 | -102.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
