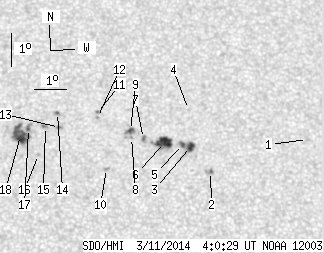

SDO HMI 2014-03-11 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.77 | 84.39 | 19.27 | 44.27 | 6.36 | 12.01 | 13.39 | 315.59 | 0.3291 | -65.1 | -66.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-11 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.66 | 6.56 | 18.05 | 19.43 | 304.99 | 0.4052 | 783.0 | 602.6 | |
| 0.52 | 3.47 | 0.28 | 1.84 | 5.46 | 14.96 | 16.34 | 307.49 | 0.3545 | -899.8 | -749.6 | |
| 4.60 | 14.57 | 2.43 | 7.71 | 6.21 | 14.36 | 15.74 | 310.19 | 0.3546 | -883.2 | -516.5 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 7.34 | 14.34 | 15.72 | 312.60 | 0.3666 | -523.0 | -458.2 | |
| 1.65 | -3.00 | 0.87 | -3.00 | 6.26 | 14.11 | 15.49 | 310.76 | 0.3521 | -994.3 | 999999 | |
| 11.45 | 18.56 | 6.04 | 9.79 | 6.30 | 13.55 | 14.94 | 311.91 | 0.3457 | -1040.4 | -651.0 | |
| 0.69 | 2.43 | 0.37 | 1.28 | 6.41 | 12.91 | 14.29 | 313.41 | 0.3391 | -944.5 | -727.2 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 6.43 | 12.54 | 13.92 | 314.21 | 0.3349 | -894.0 | -754.1 | |
| 1.99 | 4.86 | 1.05 | 2.55 | 6.64 | 12.51 | 13.89 | 314.72 | 0.3371 | -1000.8 | -774.4 | |
| 0.00 | 2.17 | 0.00 | 1.13 | 5.45 | 11.74 | 13.12 | 313.76 | 0.3143 | 889.0 | 602.1 | |
| 0.00 | 1.56 | 0.00 | 0.82 | 7.16 | 11.51 | 12.89 | 317.96 | 0.3320 | -846.0 | -724.7 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 7.01 | 11.51 | 12.89 | 317.66 | 0.3301 | -942.0 | -762.5 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 6.67 | 10.33 | 11.71 | 319.70 | 0.3131 | 1036.0 | 895.7 | |
| 0.52 | 1.47 | 0.27 | 0.77 | 7.13 | 10.28 | 11.66 | 320.76 | 0.3185 | 763.5 | 655.1 | |
| 0.00 | 2.52 | 0.00 | 1.31 | 6.69 | 9.90 | 11.28 | 320.80 | 0.3088 | 852.0 | 739.3 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 5.83 | 9.67 | 11.05 | 319.56 | 0.2953 | 996.0 | 715.5 | |
| 1.04 | 25.59 | 0.54 | 13.27 | 6.62 | 9.38 | 10.76 | 321.98 | 0.3025 | 933.1 | 753.5 | |
| 14.31 | -17.00 | 7.42 | -17.00 | 6.40 | 9.13 | 10.51 | 322.18 | 0.2970 | 1068.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
