SDO HMI 2014-03-11 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.03 | 22.03 | 5.25 | 21.61 | -9.22 | 298.43 | -60.19 | 96.52 | 0.8630 | -57.6 | 31.6 | |
|
previous
or next observation for the same group /

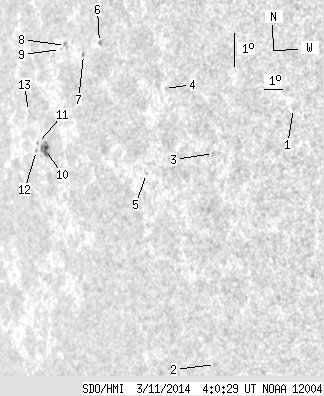

back to the solar disc SDO HMI 2014-03-11 04:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.52 | -9.57 | 309.63 | -48.98 | 96.40 | 0.7510 | 570.0 | 480.1 | |
| 0.00 | 1.65 | 0.00 | 1.41 | -16.74 | 303.55 | -55.07 | 105.43 | 0.8167 | 50.0 | 123.1 | |
| 0.00 | 1.30 | 0.00 | 1.06 | -10.52 | 305.55 | -53.07 | 97.74 | 0.7954 | 193.0 | 318.7 | |
| 0.00 | 0.43 | 0.00 | 0.37 | -8.36 | 303.52 | -55.10 | 95.14 | 0.8170 | 389.0 | 407.8 | |
| 0.00 | 0.87 | 0.00 | 0.77 | -10.76 | 301.94 | -56.68 | 98.12 | 0.8315 | 511.0 | 414.2 | |
| 0.00 | 0.87 | 0.00 | 0.81 | -6.64 | 300.28 | -58.34 | 93.31 | 0.8490 | 553.0 | 491.0 | |
| 0.00 | 1.39 | 0.00 | 1.33 | -6.89 | 299.29 | -59.32 | 93.70 | 0.8577 | 225.0 | 325.2 | |
| 0.00 | 2.69 | 0.00 | 2.65 | -6.51 | 298.29 | -60.33 | 93.35 | 0.8668 | 528.0 | 335.0 | |
| 0.00 | 0.78 | 0.00 | 0.78 | -6.59 | 297.96 | -60.65 | 93.48 | 0.8695 | 239.0 | 187.9 | |
| 5.03 | 9.02 | 5.25 | 9.42 | -9.42 | 296.27 | -62.35 | 96.83 | 0.8821 | -675.7 | -498.1 | |
| 0.00 | 0.95 | 0.00 | 1.01 | -9.19 | 295.81 | -62.81 | 96.60 | 0.8859 | -209.0 | -185.4 | |
| 0.00 | 0.78 | 0.00 | 0.83 | -9.38 | 295.68 | -62.94 | 96.83 | 0.8868 | -121.0 | -105.4 | |
| 0.00 | 0.61 | 0.00 | 0.65 | -8.19 | 295.51 | -63.11 | 95.49 | 0.8888 | -374.0 | -345.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
