SDO HMI 2014-03-11 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.11 | 0.00 | 11.50 | -10.52 | 14.92 | 17.39 | 257.05 | 0.3029 | 563.9 | 274.0 | |
|
previous
or next observation for the same group /

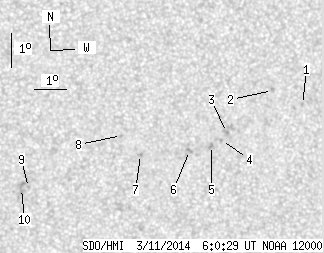

back to the solar disc SDO HMI 2014-03-11 06:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.65 | -9.00 | 19.57 | 22.05 | 263.85 | 0.3745 | 759.0 | 540.4 | |
| 0.00 | 2.34 | 0.00 | 1.24 | -8.62 | 18.58 | 21.05 | 264.75 | 0.3582 | 718.0 | 593.2 | |
| 0.00 | 2.78 | 0.00 | 1.46 | -9.94 | 17.18 | 19.65 | 260.67 | 0.3372 | 973.0 | 811.6 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -10.18 | 17.03 | 19.50 | 259.89 | 0.3353 | 886.0 | 639.1 | |
| 0.00 | 2.08 | 0.00 | 1.09 | -10.34 | 16.72 | 19.19 | 259.29 | 0.3306 | 1004.0 | 833.8 | |
| 0.00 | 2.52 | 0.00 | 1.31 | -10.52 | 16.03 | 18.50 | 258.45 | 0.3198 | 1051.0 | 756.8 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -10.69 | 14.48 | 16.95 | 257.06 | 0.2953 | 926.0 | 762.2 | |
| 0.00 | 1.13 | 0.00 | 0.58 | -10.15 | 13.85 | 16.32 | 258.57 | 0.2835 | 812.0 | 621.3 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -11.79 | 11.01 | 13.48 | 250.04 | 0.2439 | -703.0 | -559.4 | |
| 0.00 | 5.81 | 0.00 | 2.97 | -11.82 | 10.79 | 13.27 | 249.63 | 0.2407 | -787.0 | -728.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
