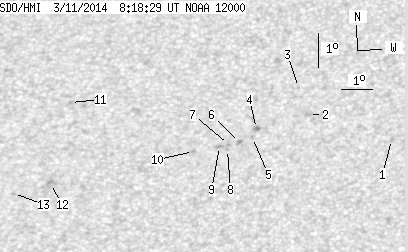

SDO HMI 2014-03-11 08:18:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 27.15 | 0.00 | 14.26 | -10.43 | 15.44 | 19.17 | 258.35 | 0.3309 | 521.8 | 333.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-11 08:18:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 0.86 | -10.01 | 21.75 | 25.48 | 261.84 | 0.4298 | 346.0 | 424.6 | |
| 0.00 | 2.86 | 0.00 | 1.54 | -9.41 | 18.95 | 22.69 | 262.85 | 0.3851 | 563.0 | 434.1 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -8.62 | 18.58 | 22.31 | 264.87 | 0.3784 | 723.0 | 561.5 | |
| 0.00 | 3.30 | 0.00 | 1.75 | -9.90 | 17.29 | 21.02 | 261.16 | 0.3592 | 986.0 | 801.7 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -10.17 | 17.18 | 20.91 | 260.37 | 0.3579 | 780.0 | 636.8 | |
| 0.00 | 2.34 | 0.00 | 1.24 | -10.34 | 16.77 | 20.50 | 259.76 | 0.3517 | 982.0 | 810.1 | |
| 0.00 | 1.39 | 0.00 | 0.73 | -10.41 | 16.42 | 20.15 | 259.43 | 0.3462 | 744.0 | 632.1 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -10.56 | 16.40 | 20.13 | 258.99 | 0.3462 | 750.0 | 644.6 | |
| 0.00 | 2.34 | 0.00 | 1.23 | -10.48 | 16.14 | 19.87 | 259.11 | 0.3418 | 921.0 | 769.9 | |
| 0.00 | 1.56 | 0.00 | 0.82 | -10.67 | 15.31 | 19.04 | 258.22 | 0.3290 | 834.0 | 629.3 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -9.34 | 11.35 | 15.08 | 260.86 | 0.2612 | 629.0 | 430.5 | |
| 0.00 | 4.86 | 0.00 | 2.49 | -11.78 | 10.84 | 14.57 | 251.29 | 0.2612 | -872.0 | -720.2 | |
| 0.00 | 1.65 | 0.00 | 0.84 | -12.11 | 9.70 | 13.43 | 248.69 | 0.2448 | -602.0 | -390.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
