SDO HMI 2014-03-11 09:01:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.16 | 545.13 | 123.86 | 538.88 | 14.14 | 52.16 | 56.28 | 291.12 | 0.8650 | -16.0 | -39.9 | |
|
previous
or next observation for the same group /

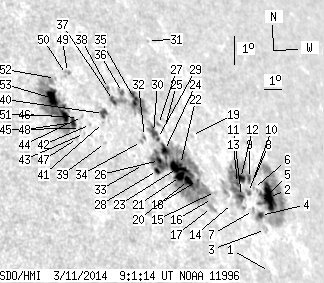

back to the solar disc SDO HMI 2014-03-11 09:01:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.47 | 11.08 | 55.92 | 60.04 | 286.52 | 0.8887 | -465.0 | -436.8 | |
| 23.68 | 106.01 | 26.71 | 120.10 | 13.49 | 56.80 | 60.92 | 288.89 | 0.9000 | -522.0 | 54.9 | |
| 0.00 | 3.56 | 0.00 | 3.89 | 12.41 | 56.16 | 60.29 | 287.91 | 0.8933 | -527.0 | -440.2 | |
| 4.16 | -2.00 | 4.54 | -2.00 | 12.83 | 56.02 | 60.14 | 288.40 | 0.8931 | -731.0 | 999999 | |
| 0.87 | -2.00 | 0.95 | -2.00 | 13.22 | 56.12 | 60.24 | 288.79 | 0.8946 | -688.3 | 999999 | |
| 0.00 | 1.04 | 0.00 | 1.14 | 13.67 | 55.94 | 60.06 | 289.33 | 0.8942 | -589.0 | -524.7 | |
| 0.00 | 1.65 | 0.00 | 1.78 | 12.95 | 55.64 | 59.76 | 288.64 | 0.8904 | -737.0 | -649.2 | |
| 0.00 | 0.78 | 0.00 | 0.86 | 13.86 | 55.96 | 60.08 | 289.53 | 0.8947 | -161.0 | -207.6 | |
| 2.34 | 73.57 | 2.57 | 78.45 | 13.97 | 55.82 | 59.94 | 289.69 | 0.8940 | -340.7 | -455.2 | |
| 1.39 | -9.00 | 1.50 | -9.00 | 13.50 | 55.56 | 59.68 | 289.26 | 0.8910 | -685.5 | 999999 | |
| 2.60 | -9.00 | 2.77 | -9.00 | 13.32 | 55.06 | 59.18 | 289.21 | 0.8869 | -854.2 | 999999 | |
| 5.73 | -9.00 | 6.16 | -9.00 | 13.91 | 55.24 | 59.36 | 289.80 | 0.8896 | -692.6 | 999999 | |
| 1.21 | -9.00 | 1.29 | -9.00 | 13.72 | 54.98 | 59.10 | 289.67 | 0.8872 | -820.2 | 999999 | |
| 0.00 | 2.26 | 0.00 | 2.34 | 13.03 | 54.41 | 58.53 | 289.09 | 0.8813 | -442.0 | -382.2 | |
| 0.00 | 1.39 | 0.00 | 1.41 | 13.31 | 53.52 | 57.64 | 289.67 | 0.8750 | -381.0 | -320.4 | |
| 0.00 | 0.95 | 0.00 | 0.96 | 13.06 | 53.26 | 57.38 | 289.48 | 0.8723 | -231.0 | -248.2 | |
| 0.00 | 4.68 | 0.00 | 4.68 | 12.76 | 53.09 | 57.21 | 289.20 | 0.8702 | -193.0 | -229.1 | |
| 0.69 | 179.23 | 0.69 | 173.51 | 13.56 | 52.59 | 56.71 | 290.24 | 0.8681 | -147.5 | -135.8 | |
| 0.00 | 1.21 | 0.00 | 1.23 | 15.00 | 52.82 | 56.94 | 291.75 | 0.8736 | -338.0 | -275.8 | |
| 8.85 | -18.00 | 8.65 | -18.00 | 13.50 | 52.07 | 56.19 | 290.34 | 0.8637 | 390.7 | 999999 | |
| 7.37 | -18.00 | 7.12 | -18.00 | 13.58 | 51.66 | 55.78 | 290.57 | 0.8605 | 848.3 | 999999 | |
| 1.21 | -18.00 | 1.18 | -18.00 | 13.97 | 51.80 | 55.92 | 290.96 | 0.8628 | 182.4 | 999999 | |
| 14.05 | -18.00 | 13.60 | -18.00 | 13.86 | 51.65 | 55.77 | 290.89 | 0.8612 | 494.7 | 999999 | |
| 6.33 | -18.00 | 6.06 | -18.00 | 14.34 | 51.06 | 55.18 | 291.62 | 0.8576 | -728.7 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.59 | 15.07 | 51.34 | 55.46 | 292.33 | 0.8620 | -316.0 | -363.3 | |
| 2.52 | -18.00 | 2.37 | -18.00 | 13.98 | 50.66 | 54.78 | 291.36 | 0.8533 | -985.0 | 999999 | |
| 0.00 | 1.56 | 0.00 | 1.50 | 15.16 | 51.05 | 55.17 | 292.53 | 0.8599 | -542.0 | -443.2 | |
| 2.34 | -18.00 | 2.19 | -18.00 | 13.64 | 50.43 | 54.55 | 291.05 | 0.8504 | -99.4 | 999999 | |
| 1.04 | -18.00 | 0.99 | -18.00 | 14.69 | 50.82 | 54.94 | 292.10 | 0.8566 | -620.4 | 999999 | |
| 4.77 | -18.00 | 4.54 | -18.00 | 14.87 | 50.67 | 54.79 | 292.34 | 0.8558 | -634.9 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.35 | 17.92 | 51.65 | 55.77 | 295.34 | 0.8725 | -342.0 | -335.8 | |
| 0.00 | 2.17 | 0.00 | 2.03 | 14.68 | 50.12 | 54.24 | 292.33 | 0.8507 | -683.0 | -584.7 | |
| 0.00 | 0.69 | 0.00 | 0.64 | 13.76 | 49.74 | 53.86 | 291.43 | 0.8448 | 276.0 | 246.6 | |
| 0.00 | 1.30 | 0.00 | 1.21 | 14.50 | 49.89 | 54.01 | 292.21 | 0.8483 | -672.0 | -611.6 | |
| 5.90 | 42.07 | 5.57 | 39.47 | 15.88 | 50.05 | 54.17 | 293.70 | 0.8537 | 373.4 | -193.4 | |
| 1.21 | -35.00 | 1.13 | -35.00 | 16.01 | 49.46 | 53.59 | 294.06 | 0.8492 | 407.1 | 999999 | |
| 3.04 | -35.00 | 2.78 | -35.00 | 15.70 | 48.87 | 52.99 | 293.93 | 0.8432 | 431.1 | 999999 | |
| 0.00 | 1.56 | 0.00 | 1.43 | 16.07 | 48.76 | 52.88 | 294.39 | 0.8434 | 643.0 | 492.7 | |
| 0.00 | 0.95 | 0.00 | 0.84 | 14.27 | 47.96 | 52.08 | 292.67 | 0.8307 | 395.0 | 345.5 | |
| 3.56 | 6.42 | 3.19 | 5.76 | 15.21 | 48.18 | 52.30 | 293.65 | 0.8357 | 523.2 | 349.3 | |
| 0.00 | 0.95 | 0.00 | 0.85 | 14.91 | 48.08 | 52.20 | 293.36 | 0.8338 | 486.0 | 369.4 | |
| 0.00 | 1.04 | 0.00 | 0.91 | 14.78 | 47.38 | 51.50 | 293.48 | 0.8272 | 377.0 | 261.9 | |
| 0.00 | 0.78 | 0.00 | 0.68 | 14.45 | 46.97 | 51.09 | 293.27 | 0.8225 | 456.0 | 411.2 | |
| 0.00 | 0.95 | 0.00 | 0.83 | 15.00 | 47.06 | 51.18 | 293.86 | 0.8251 | 465.0 | 410.2 | |
| 0.00 | 1.30 | 0.00 | 1.12 | 14.60 | 46.82 | 50.94 | 293.49 | 0.8216 | 545.0 | 448.7 | |
| 0.00 | 0.35 | 0.00 | 0.30 | 14.95 | 46.84 | 50.96 | 293.89 | 0.8229 | 202.0 | 218.2 | |
| 0.00 | 0.61 | 0.00 | 0.52 | 14.25 | 46.57 | 50.69 | 293.20 | 0.8181 | 653.0 | 616.1 | |
| 3.47 | 99.50 | 2.98 | 84.48 | 14.76 | 46.53 | 50.65 | 293.79 | 0.8195 | 562.7 | 508.8 | |
| 0.00 | 2.08 | 0.00 | 1.83 | 16.38 | 46.80 | 50.92 | 295.53 | 0.8276 | 637.0 | 537.8 | |
| 0.00 | 2.52 | 0.00 | 2.20 | 16.31 | 46.72 | 50.85 | 295.49 | 0.8266 | 583.0 | 514.8 | |
| 5.64 | -48.00 | 4.82 | -48.00 | 14.91 | 46.19 | 50.31 | 294.11 | 0.8170 | 841.0 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.52 | 16.12 | 46.12 | 50.24 | 295.53 | 0.8206 | 290.0 | 252.9 | |
| 11.19 | -48.00 | 9.51 | -48.00 | 15.44 | 45.74 | 49.86 | 294.91 | 0.8147 | 920.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
