SDO HMI 2014-03-11 09:01:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.77 | 162.89 | 19.27 | 81.12 | -10.39 | 358.03 | 2.15 | 222.80 | 0.0939 | 506.7 | 346.6 | |
|
previous
or next observation for the same group /

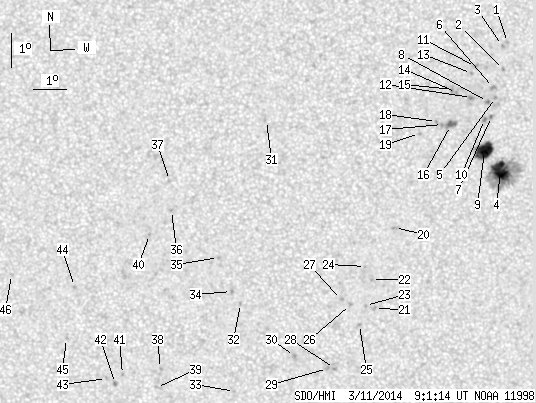

back to the solar disc SDO HMI 2014-03-11 09:01:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.65 | -6.10 | 0.30 | 4.42 | 284.03 | 0.0794 | 918.0 | 715.3 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -6.90 | 0.19 | 4.31 | 273.94 | 0.0751 | 1025.0 | 788.7 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -6.19 | 0.15 | 4.27 | 283.37 | 0.0765 | 1011.0 | 844.5 | |
| 20.73 | 68.45 | 10.31 | 34.04 | -9.94 | 0.13 | 4.25 | 236.74 | 0.0877 | 1374.9 | 451.7 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -7.74 | 359.95 | 4.08 | 262.39 | 0.0714 | 928.0 | 826.9 | |
| 0.00 | 3.12 | 0.00 | 1.55 | -7.44 | 359.89 | 4.01 | 266.53 | 0.0698 | 967.0 | 781.8 | |
| 0.00 | 1.47 | 0.00 | 0.73 | -8.31 | 359.84 | 3.96 | 254.25 | 0.0713 | 1099.0 | 875.7 | |
| 0.00 | 1.91 | 0.00 | 0.95 | -7.86 | 359.71 | 3.84 | 260.17 | 0.0676 | 1236.0 | 1030.0 | |
| 18.04 | 22.90 | 8.96 | 11.38 | -9.32 | 359.64 | 3.76 | 240.27 | 0.0748 | 1214.4 | 771.8 | |
| 0.00 | 1.39 | 0.00 | 0.69 | -8.40 | 359.63 | 3.75 | 252.15 | 0.0683 | 1193.0 | 1066.7 | |
| 0.00 | 2.69 | 0.00 | 1.33 | -6.82 | 359.35 | 3.47 | 276.38 | 0.0607 | 908.0 | 706.3 | |
| 0.00 | 2.43 | 0.00 | 1.21 | -7.74 | 359.23 | 3.35 | 260.80 | 0.0590 | 1212.0 | 969.4 | |
| 0.00 | 0.87 | 0.00 | 0.43 | -7.03 | 359.23 | 3.35 | 273.05 | 0.0583 | 972.0 | 781.6 | |
| 0.00 | 1.47 | 0.00 | 0.73 | -7.60 | 358.78 | 2.90 | 262.30 | 0.0508 | 1031.0 | 885.5 | |
| 0.00 | 2.26 | 0.00 | 1.12 | -7.51 | 358.66 | 2.78 | 263.81 | 0.0486 | 903.0 | 732.2 | |
| 0.00 | 7.11 | 0.00 | 3.53 | -8.58 | 358.60 | 2.73 | 243.03 | 0.0530 | 1145.0 | 931.1 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -8.55 | 358.36 | 2.48 | 241.37 | 0.0491 | 906.0 | 807.5 | |
| 0.00 | 0.87 | 0.00 | 0.43 | -8.46 | 358.18 | 2.30 | 241.22 | 0.0456 | 1021.0 | 808.4 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -8.82 | 357.67 | 1.79 | 227.76 | 0.0419 | -838.0 | -643.5 | |
| 0.00 | 2.60 | 0.00 | 1.29 | -11.63 | 356.92 | 1.04 | 193.07 | 0.0793 | 962.0 | 723.8 | |
| 0.00 | 1.65 | 0.00 | 0.82 | -14.05 | 356.32 | 0.44 | 183.56 | 0.1198 | 1022.0 | 817.8 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -13.18 | 356.22 | 0.35 | 183.23 | 0.1045 | 923.0 | 741.0 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -13.96 | 356.04 | 0.16 | 181.33 | 0.1180 | 885.0 | 733.5 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -12.79 | 356.04 | 0.16 | 181.63 | 0.0976 | 875.0 | 699.7 | |
| 0.00 | 1.39 | 0.00 | 0.69 | -14.53 | 355.86 | -0.02 | 179.82 | 0.1279 | 935.0 | 729.9 | |
| 0.00 | 1.65 | 0.00 | 0.82 | -13.93 | 355.58 | -0.30 | 177.52 | 0.1175 | 1058.0 | 812.1 | |
| 0.00 | 1.39 | 0.00 | 0.69 | -13.78 | 355.31 | -0.57 | 175.13 | 0.1152 | 913.0 | 835.6 | |
| 0.00 | 1.74 | 0.00 | 0.87 | -15.85 | 355.08 | -0.80 | 174.89 | 0.1514 | -877.0 | -732.5 | |
| 0.00 | 1.74 | 0.00 | 0.87 | -15.85 | 354.86 | -1.02 | 173.52 | 0.1518 | -835.0 | -762.9 | |
| 0.00 | 2.86 | 0.00 | 1.43 | -15.49 | 353.85 | -2.03 | 166.63 | 0.1486 | -998.0 | -727.4 | |
| 0.00 | 0.61 | 0.00 | 0.30 | -8.43 | 353.06 | -2.82 | 113.58 | 0.0533 | -687.0 | -695.6 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -13.88 | 352.20 | -3.67 | 151.85 | 0.1325 | -991.0 | -811.0 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -16.53 | 351.97 | -3.91 | 158.02 | 0.1755 | -908.0 | -668.1 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -13.52 | 351.93 | -3.94 | 148.71 | 0.1294 | -973.0 | -814.3 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -12.50 | 351.55 | -4.32 | 141.44 | 0.1187 | -954.0 | -745.9 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -11.08 | 350.15 | -5.73 | 124.72 | 0.1198 | -1107.0 | -848.2 | |
| 0.00 | 1.65 | 0.00 | 0.82 | -10.18 | 350.10 | -5.77 | 117.85 | 0.1125 | -36.0 | -84.3 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -15.81 | 349.68 | -6.20 | 145.31 | 0.1833 | -954.0 | -835.1 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -16.38 | 349.54 | -6.34 | 146.48 | 0.1927 | -874.0 | -595.7 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -11.78 | 349.46 | -6.42 | 126.29 | 0.1364 | -881.0 | -722.2 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -15.97 | 348.49 | -7.39 | 141.09 | 0.1977 | -883.0 | -679.9 | |
| 0.00 | 2.08 | 0.00 | 1.05 | -16.23 | 348.26 | -7.61 | 141.12 | 0.2036 | -1001.0 | -786.8 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -16.08 | 347.99 | -7.89 | 139.64 | 0.2046 | -730.0 | -568.2 | |
| 0.00 | 1.39 | 0.00 | 0.70 | -13.30 | 347.10 | -8.78 | 125.87 | 0.1841 | -1069.0 | -838.3 | |
| 0.00 | 1.39 | 0.00 | 0.70 | -14.85 | 346.79 | -9.09 | 131.35 | 0.2043 | -827.0 | -647.8 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -12.90 | 345.17 | -10.71 | 119.15 | 0.2084 | -620.0 | -526.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
