SDO HMI 2014-03-11 09:01:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.33 | 32.07 | 6.04 | 28.80 | -8.96 | 298.90 | -56.98 | 96.03 | 0.8337 | 48.9 | 105.0 | |
|
previous
or next observation for the same group /

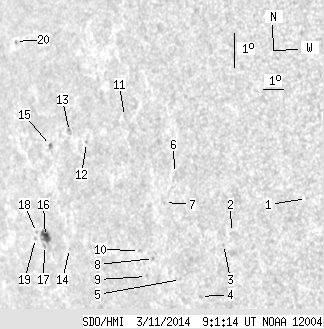

back to the solar disc SDO HMI 2014-03-11 09:01:14 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.49 | -9.60 | 309.59 | -46.29 | 96.38 | 0.7195 | 599.0 | 472.8 | |
| 0.00 | 1.21 | 0.00 | 0.92 | -10.29 | 306.04 | -49.84 | 97.38 | 0.7605 | 487.0 | 425.0 | |
| 0.00 | 0.87 | 0.00 | 0.67 | -10.60 | 305.59 | -50.29 | 97.81 | 0.7655 | 521.0 | 478.4 | |
| 0.00 | 1.39 | 0.00 | 1.10 | -12.03 | 304.12 | -51.76 | 99.66 | 0.7815 | 465.0 | 396.1 | |
| 0.00 | 0.69 | 0.00 | 0.56 | -11.43 | 303.28 | -52.60 | 98.90 | 0.7904 | 498.0 | 487.9 | |
| 0.00 | 0.69 | 0.00 | 0.55 | -8.28 | 303.70 | -52.18 | 94.88 | 0.7868 | 535.0 | 515.5 | |
| 0.00 | 0.87 | 0.00 | 0.70 | -9.09 | 303.04 | -52.84 | 95.93 | 0.7934 | 333.0 | 333.1 | |
| 0.00 | 1.30 | 0.00 | 1.08 | -10.68 | 302.11 | -53.77 | 97.97 | 0.8027 | 494.0 | 431.4 | |
| 0.00 | 1.21 | 0.00 | 1.01 | -11.18 | 301.61 | -54.27 | 98.59 | 0.8077 | 235.0 | 213.6 | |
| 0.00 | 0.87 | 0.00 | 0.73 | -10.37 | 301.46 | -54.42 | 97.60 | 0.8094 | 440.0 | 407.3 | |
| 0.00 | 1.30 | 0.00 | 1.10 | -6.35 | 301.51 | -54.37 | 92.62 | 0.8108 | 150.0 | 111.3 | |
| 0.00 | 0.95 | 0.00 | 0.85 | -6.91 | 299.39 | -56.48 | 93.49 | 0.8314 | 314.0 | 398.7 | |
| 0.00 | 2.78 | 0.00 | 2.52 | -6.49 | 298.53 | -57.35 | 93.06 | 0.8399 | 634.0 | 472.2 | |
| 0.00 | 0.52 | 0.00 | 0.48 | -9.93 | 297.73 | -58.15 | 97.20 | 0.8455 | -434.0 | -385.8 | |
| 0.52 | 1.39 | 0.49 | 1.30 | -6.79 | 297.39 | -58.49 | 93.52 | 0.8502 | 270.7 | 160.7 | |
| 5.81 | 10.84 | 5.55 | 10.36 | -9.43 | 296.46 | -59.42 | 96.68 | 0.8571 | -670.5 | -366.6 | |
| 0.00 | 1.30 | 0.00 | 1.25 | -9.68 | 296.33 | -59.55 | 96.99 | 0.8582 | -382.0 | -289.2 | |
| 0.00 | 0.95 | 0.00 | 0.92 | -9.25 | 295.97 | -59.91 | 96.50 | 0.8616 | -307.0 | -241.6 | |
| 0.00 | 1.21 | 0.00 | 1.18 | -9.42 | 295.86 | -60.02 | 96.71 | 0.8624 | -288.0 | -191.2 | |
| 0.00 | 1.04 | 0.00 | 1.03 | -3.50 | 295.83 | -60.05 | 89.86 | 0.8669 | 249.0 | 216.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
