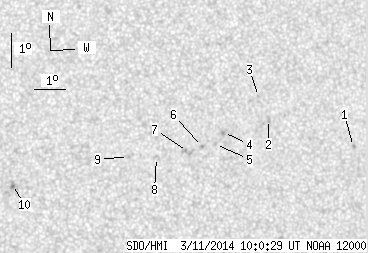

SDO HMI 2014-03-11 10:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 23.17 | 0.00 | 12.30 | -10.36 | 16.24 | 20.90 | 259.45 | 0.3583 | 641.9 | 487.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-11 10:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.77 | -10.03 | 21.81 | 26.47 | 261.94 | 0.4452 | 757.0 | 614.4 | |
| 0.00 | 2.95 | 0.00 | 1.59 | -9.37 | 18.92 | 23.58 | 263.06 | 0.3993 | 660.0 | 562.0 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -8.71 | 18.55 | 23.21 | 264.71 | 0.3929 | 841.0 | 607.6 | |
| 0.00 | 1.56 | 0.00 | 0.83 | -9.83 | 17.48 | 22.14 | 261.61 | 0.3769 | 1006.0 | 886.2 | |
| 0.00 | 1.39 | 0.00 | 0.74 | -10.20 | 17.24 | 21.90 | 260.57 | 0.3738 | 831.0 | 635.7 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -10.28 | 16.82 | 21.48 | 260.24 | 0.3673 | 927.0 | 762.0 | |
| 0.00 | 5.73 | 0.00 | 3.04 | -10.45 | 16.35 | 21.01 | 259.62 | 0.3600 | 737.0 | 747.1 | |
| 0.00 | 3.04 | 0.00 | 1.60 | -10.67 | 15.36 | 20.02 | 258.62 | 0.3447 | 605.0 | 620.4 | |
| 0.00 | 2.00 | 0.00 | 1.05 | -10.68 | 14.46 | 19.12 | 258.21 | 0.3303 | 900.0 | 630.7 | |
| 0.00 | 3.12 | 0.00 | 1.61 | -11.64 | 10.83 | 15.49 | 252.67 | 0.2752 | -845.0 | -776.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
