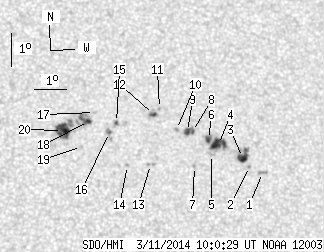

SDO HMI 2014-03-11 10:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.39 | 100.45 | 20.95 | 53.44 | 6.16 | 11.89 | 16.55 | 308.92 | 0.3648 | -116.5 | 27.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-11 10:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.38 | 0.00 | 1.83 | 5.25 | 15.27 | 19.93 | 301.54 | 0.3999 | -826.0 | -724.2 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 5.41 | 14.86 | 19.52 | 302.44 | 0.3959 | -791.0 | -664.9 | |
| 5.55 | 13.27 | 2.99 | 7.15 | 5.68 | 14.65 | 19.31 | 303.30 | 0.3953 | -1143.7 | -791.1 | |
| 9.98 | 17.78 | 5.36 | 9.55 | 6.04 | 13.90 | 18.56 | 305.15 | 0.3888 | -1071.9 | -709.0 | |
| 0.00 | 2.52 | 0.00 | 1.35 | 5.73 | 13.67 | 18.33 | 304.83 | 0.3828 | -830.0 | -383.4 | |
| 2.43 | -4.00 | 1.30 | -4.00 | 6.19 | 13.59 | 18.25 | 305.91 | 0.3861 | -968.6 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 5.34 | 13.12 | 17.78 | 304.82 | 0.3720 | 887.0 | 672.7 | |
| 0.78 | 6.85 | 0.42 | 3.67 | 6.41 | 13.09 | 17.75 | 307.16 | 0.3819 | -961.3 | -777.8 | |
| 2.52 | -8.00 | 1.35 | -8.00 | 6.41 | 12.94 | 17.60 | 307.39 | 0.3798 | -1057.7 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.97 | 6.45 | 12.59 | 17.25 | 308.05 | 0.3759 | -1037.0 | -849.8 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 7.08 | 12.08 | 16.74 | 310.20 | 0.3760 | -764.0 | -594.9 | |
| 1.65 | 3.99 | 0.88 | 2.13 | 6.89 | 11.89 | 16.55 | 310.15 | 0.3715 | -983.4 | -756.8 | |
| 0.00 | 2.43 | 0.00 | 1.29 | 5.35 | 11.74 | 16.40 | 307.08 | 0.3540 | 559.0 | 566.2 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 5.30 | 11.03 | 15.69 | 308.22 | 0.3442 | 806.0 | 615.1 | |
| 0.69 | 1.82 | 0.37 | 0.96 | 6.60 | 10.72 | 15.38 | 311.65 | 0.3542 | 795.0 | 643.2 | |
| 0.52 | 4.51 | 0.27 | 2.38 | 6.29 | 10.50 | 15.16 | 311.41 | 0.3480 | 910.5 | 800.4 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 6.89 | 10.05 | 14.71 | 313.54 | 0.3493 | 106.0 | 73.7 | |
| 1.82 | 13.36 | 0.96 | 7.04 | 6.60 | 9.85 | 14.51 | 313.33 | 0.3438 | 933.0 | 738.7 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 5.83 | 9.61 | 14.28 | 312.13 | 0.3323 | 899.0 | 624.0 | |
| 13.45 | 21.86 | 7.05 | 11.47 | 6.30 | 9.04 | 13.70 | 314.36 | 0.3308 | 1131.4 | 808.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
