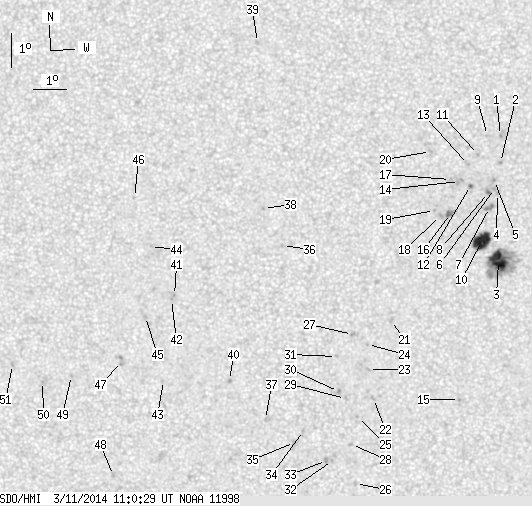

SDO HMI 2014-03-11 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.51 | 165.88 | 20.16 | 82.70 | -10.26 | 357.93 | 3.14 | 224.22 | 0.1033 | 445.2 | 334.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-11 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.60 | -6.19 | 0.15 | 5.36 | 280.53 | 0.0948 | 932.0 | 840.6 | |
| 0.00 | 1.65 | 0.00 | 0.82 | -7.00 | 0.15 | 5.36 | 271.99 | 0.0933 | 963.0 | 735.9 | |
| 20.38 | 64.19 | 10.15 | 31.97 | -9.92 | 0.13 | 5.34 | 242.51 | 0.1038 | 1347.4 | 493.2 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -7.92 | 0.07 | 5.28 | 261.96 | 0.0925 | 750.0 | 659.1 | |
| 0.00 | 1.47 | 0.00 | 0.73 | -7.54 | 359.98 | 5.19 | 266.09 | 0.0903 | 963.0 | 819.6 | |
| 0.00 | 1.73 | 0.00 | 0.86 | -7.77 | 359.98 | 5.19 | 263.45 | 0.0906 | 816.0 | 757.0 | |
| 0.00 | 4.42 | 0.00 | 2.20 | -8.34 | 359.84 | 5.05 | 256.96 | 0.0897 | 1043.0 | 999.1 | |
| 0.35 | 1.99 | 0.17 | 0.99 | -7.89 | 359.80 | 5.01 | 261.87 | 0.0878 | 1160.0 | 1018.0 | |
| 0.00 | 1.39 | 0.00 | 0.69 | -6.20 | 359.76 | 4.96 | 281.34 | 0.0882 | 637.0 | 584.8 | |
| 19.26 | 23.42 | 9.58 | 11.65 | -9.36 | 359.61 | 4.82 | 245.46 | 0.0915 | 1193.3 | 674.6 | |
| 0.00 | 0.95 | 0.00 | 0.47 | -6.77 | 359.49 | 4.70 | 275.19 | 0.0821 | 794.0 | 698.5 | |
| 0.52 | 1.82 | 0.26 | 0.90 | -7.69 | 359.26 | 4.47 | 263.56 | 0.0780 | 1147.8 | 998.3 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -7.07 | 359.19 | 4.40 | 271.65 | 0.0765 | 996.0 | 780.4 | |
| 0.00 | 2.69 | 0.00 | 1.34 | -7.57 | 358.93 | 4.13 | 264.70 | 0.0721 | 836.0 | 832.3 | |
| 0.00 | 0.87 | 0.00 | 0.43 | -14.08 | 359.01 | 4.22 | 210.74 | 0.1402 | 915.0 | 802.6 | |
| 0.00 | 5.81 | 0.00 | 2.89 | -8.53 | 358.66 | 3.87 | 250.80 | 0.0710 | 1230.0 | 970.9 | |
| 0.00 | 1.65 | 0.00 | 0.82 | -7.52 | 358.65 | 3.86 | 265.22 | 0.0673 | 917.0 | 735.1 | |
| 0.00 | 1.91 | 0.00 | 0.95 | -8.59 | 358.36 | 3.57 | 248.47 | 0.0665 | 864.0 | 693.5 | |
| 0.00 | 0.87 | 0.00 | 0.43 | -8.44 | 358.18 | 3.39 | 249.65 | 0.0626 | 926.0 | 754.6 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -6.69 | 358.05 | 3.26 | 279.04 | 0.0574 | 1042.0 | 864.5 | |
| 0.00 | 2.17 | 0.00 | 1.08 | -11.73 | 356.90 | 2.11 | 204.57 | 0.0871 | 895.0 | 715.0 | |
| 0.00 | 2.08 | 0.00 | 1.04 | -14.06 | 356.37 | 1.57 | 192.58 | 0.1228 | 850.0 | 723.7 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -13.19 | 356.21 | 1.42 | 192.99 | 0.1075 | 951.0 | 795.2 | |
| 0.00 | 1.13 | 0.00 | 0.56 | -12.45 | 356.17 | 1.38 | 194.47 | 0.0947 | 964.0 | 718.5 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -14.60 | 355.88 | 1.08 | 188.10 | 0.1306 | 852.0 | 759.4 | |
| 0.00 | 1.91 | 0.00 | 0.96 | -16.62 | 355.82 | 1.03 | 186.01 | 0.1651 | -639.0 | -403.3 | |
| 0.00 | 2.08 | 0.00 | 1.04 | -12.15 | 355.72 | 0.92 | 190.38 | 0.0879 | 940.0 | 765.3 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -15.45 | 355.69 | 0.90 | 186.05 | 0.1447 | -937.0 | -666.5 | |
| 0.00 | 1.82 | 0.00 | 0.91 | -14.06 | 355.51 | 0.71 | 185.78 | 0.1205 | 789.0 | 686.5 | |
| 0.00 | 1.82 | 0.00 | 0.91 | -13.85 | 355.29 | 0.50 | 184.18 | 0.1165 | 978.0 | 832.6 | |
| 0.00 | 0.95 | 0.00 | 0.47 | -12.81 | 355.23 | 0.44 | 184.36 | 0.0982 | 785.0 | 639.5 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -15.93 | 355.11 | 0.32 | 182.00 | 0.1523 | -962.0 | -771.7 | |
| 0.00 | 1.91 | 0.00 | 0.96 | -15.93 | 354.92 | 0.13 | 180.82 | 0.1522 | -871.0 | -768.2 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -15.02 | 354.21 | -0.58 | 175.89 | 0.1369 | -938.0 | -717.9 | |
| 0.00 | 1.99 | 0.00 | 1.00 | -15.38 | 353.93 | -0.86 | 174.20 | 0.1435 | -970.0 | -820.3 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -9.49 | 353.60 | -1.19 | 152.67 | 0.0450 | -929.0 | -647.5 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -14.69 | 353.04 | -1.75 | 167.23 | 0.1341 | -940.0 | -605.0 | |
| 0.00 | 0.95 | 0.00 | 0.47 | -8.39 | 353.03 | -1.76 | 124.03 | 0.0369 | -1027.0 | -834.1 | |
| 0.00 | 1.73 | 0.00 | 0.86 | -3.44 | 352.87 | -1.92 | 26.95 | 0.0741 | -783.0 | -548.6 | |
| 0.00 | 1.39 | 0.00 | 0.69 | -13.51 | 351.95 | -2.84 | 156.32 | 0.1205 | -1072.0 | -938.6 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -10.96 | 350.31 | -4.48 | 130.57 | 0.1015 | -1078.0 | -803.1 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -11.08 | 350.22 | -4.57 | 130.88 | 0.1040 | -1040.0 | -860.8 | |
| 0.00 | 0.52 | 0.00 | 0.26 | -13.49 | 349.93 | -4.87 | 143.10 | 0.1380 | -756.0 | -669.2 | |
| 0.00 | 0.35 | 0.00 | 0.17 | -9.49 | 349.61 | -5.19 | 114.28 | 0.0982 | -868.0 | -694.5 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -11.57 | 349.42 | -5.38 | 129.84 | 0.1201 | -796.0 | -551.3 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -8.02 | 349.15 | -5.65 | 98.60 | 0.0990 | -851.0 | -603.3 | |
| 0.00 | 3.73 | 0.00 | 1.87 | -12.91 | 348.65 | -6.14 | 133.78 | 0.1451 | -788.0 | -778.4 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -16.33 | 348.30 | -6.49 | 145.72 | 0.1935 | -847.0 | -637.8 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -13.30 | 347.10 | -7.69 | 129.45 | 0.1695 | -930.0 | -744.0 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -13.47 | 346.20 | -8.60 | 127.19 | 0.1833 | -949.0 | -721.2 | |
| 0.00 | 1.91 | 0.00 | 0.96 | -12.94 | 345.29 | -9.50 | 122.22 | 0.1911 | -780.0 | -604.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
