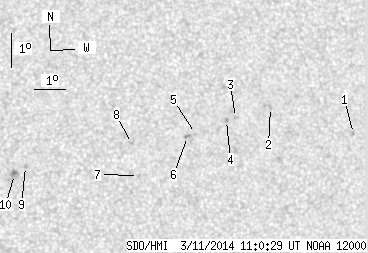

SDO HMI 2014-03-11 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.99 | 0.00 | 9.00 | -10.73 | 15.06 | 20.26 | 257.88 | 0.3491 | 433.1 | 139.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-11 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.63 | -10.03 | 21.81 | 27.01 | 262.02 | 0.4535 | 749.0 | 672.3 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -9.41 | 18.97 | 24.18 | 263.07 | 0.4088 | 710.0 | 564.4 | |
| 0.00 | 1.65 | 0.00 | 0.89 | -9.76 | 17.84 | 23.05 | 261.99 | 0.3914 | 740.0 | 591.4 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -9.86 | 17.55 | 22.76 | 261.66 | 0.3869 | 966.0 | 855.0 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -10.30 | 16.57 | 21.78 | 260.27 | 0.3720 | 686.0 | 523.6 | |
| 0.00 | 2.17 | 0.00 | 1.15 | -10.40 | 16.32 | 21.53 | 259.92 | 0.3682 | 940.0 | 764.2 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -11.63 | 14.82 | 20.02 | 255.88 | 0.3474 | 520.0 | 454.2 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -10.68 | 14.52 | 19.73 | 258.46 | 0.3401 | 909.0 | 783.2 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -11.49 | 11.19 | 16.40 | 253.94 | 0.2892 | -936.0 | -788.6 | |
| 0.00 | 5.46 | 0.00 | 2.82 | -11.74 | 10.86 | 16.06 | 252.82 | 0.2849 | -953.0 | -758.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
