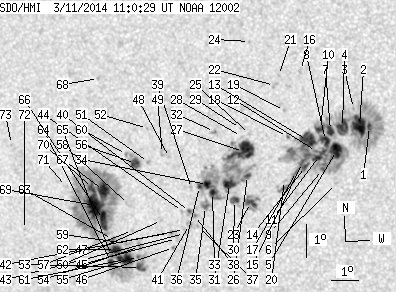

SDO HMI 2014-03-11 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 244.52 | 902.34 | 144.11 | 532.70 | -18.74 | 323.25 | -31.55 | 113.81 | 0.5420 | -8.8 | -72.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-11 11:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.60 | 333.59 | 1.45 | 187.86 | -17.51 | 329.08 | -25.71 | 114.73 | 0.4574 | 1132.1 | 289.2 | |
| 17.52 | -1.00 | 9.77 | -1.00 | -17.46 | 328.74 | -26.05 | 114.40 | 0.4620 | 1123.0 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -16.94 | 328.61 | -26.18 | 113.24 | 0.4612 | 510.0 | 465.1 | |
| 12.06 | -1.00 | 6.76 | -1.00 | -17.49 | 328.14 | -26.65 | 114.07 | 0.4705 | 972.6 | 999999 | |
| 13.10 | -1.00 | 7.38 | -1.00 | -18.17 | 327.82 | -26.97 | 115.23 | 0.4783 | 1089.1 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -19.17 | 327.65 | -27.15 | 117.06 | 0.4860 | -653.0 | -399.2 | |
| 5.46 | -1.00 | 3.08 | -1.00 | -17.55 | 327.71 | -27.08 | 113.93 | 0.4768 | 990.0 | 999999 | |
| 6.94 | -1.00 | 3.92 | -1.00 | -17.85 | 327.49 | -27.31 | 114.37 | 0.4814 | 964.8 | 999999 | |
| 1.30 | -1.00 | 0.74 | -1.00 | -18.72 | 327.23 | -27.56 | 115.91 | 0.4892 | 537.0 | 999999 | |
| 4.68 | -1.00 | 2.64 | -1.00 | -17.47 | 327.37 | -27.42 | 113.57 | 0.4812 | 905.1 | 999999 | |
| 7.03 | -1.00 | 3.98 | -1.00 | -18.29 | 327.20 | -27.59 | 115.06 | 0.4875 | 788.3 | 999999 | |
| 0.69 | -1.00 | 0.39 | -1.00 | -18.16 | 327.12 | -27.68 | 114.76 | 0.4880 | 620.2 | 999999 | |
| 15.61 | -1.00 | 8.86 | -1.00 | -17.81 | 326.86 | -27.94 | 113.92 | 0.4899 | 847.6 | 999999 | |
| 2.52 | -1.00 | 1.43 | -1.00 | -18.59 | 326.65 | -28.14 | 115.30 | 0.4965 | 726.0 | 999999 | |
| 2.78 | -1.00 | 1.58 | -1.00 | -18.46 | 326.56 | -28.23 | 115.01 | 0.4971 | 325.6 | 999999 | |
| 0.00 | 2.26 | 0.00 | 1.27 | -15.69 | 326.95 | -27.84 | 109.75 | 0.4797 | 526.0 | 529.7 | |
| 0.87 | -1.00 | 0.50 | -1.00 | -18.72 | 326.30 | -28.49 | 115.34 | 0.5019 | 327.9 | 999999 | |
| 0.35 | 1.13 | 0.20 | 0.64 | -17.65 | 326.17 | -28.62 | 113.21 | 0.4987 | 726.0 | 642.4 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -16.86 | 326.20 | -28.59 | 111.70 | 0.4949 | 802.0 | 621.9 | |
| 0.00 | 1.39 | 0.00 | 0.80 | -18.97 | 325.82 | -28.97 | 115.52 | 0.5096 | -271.0 | -246.2 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -15.80 | 326.16 | -28.63 | 109.58 | 0.4914 | 604.0 | 531.4 | |
| 0.00 | 3.12 | 0.00 | 1.78 | -16.09 | 325.97 | -28.82 | 110.07 | 0.4951 | 495.0 | 537.3 | |
| 5.72 | 17.52 | 3.34 | 10.22 | -19.56 | 324.47 | -30.32 | 115.81 | 0.5306 | -866.2 | -636.5 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -14.72 | 325.30 | -29.49 | 107.08 | 0.5001 | 691.0 | 578.6 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -17.51 | 324.84 | -29.96 | 112.24 | 0.5165 | 704.0 | 502.6 | |
| 2.43 | 98.45 | 1.41 | 57.36 | -18.74 | 324.53 | -30.26 | 114.35 | 0.5260 | -1032.6 | -205.3 | |
| 24.55 | -26.00 | 14.24 | -26.00 | -18.01 | 324.53 | -30.27 | 113.01 | 0.5229 | 870.4 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -17.55 | 324.54 | -30.25 | 112.17 | 0.5208 | 523.0 | 428.7 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -17.31 | 324.55 | -30.24 | 111.72 | 0.5197 | 631.0 | 493.2 | |
| 4.25 | 6.59 | 2.49 | 3.87 | -19.47 | 323.90 | -30.89 | 115.32 | 0.5376 | -774.3 | -512.4 | |
| 8.93 | -26.00 | 5.23 | -26.00 | -18.94 | 323.83 | -30.97 | 114.34 | 0.5363 | -1088.8 | 999999 | |
| 0.35 | 2.43 | 0.20 | 1.42 | -17.34 | 323.60 | -31.20 | 111.34 | 0.5329 | 768.0 | 612.5 | |
| 3.04 | 48.05 | 1.79 | 28.35 | -19.17 | 323.15 | -31.64 | 114.41 | 0.5463 | -824.6 | -497.6 | |
| 4.25 | -33.00 | 2.51 | -33.00 | -18.92 | 323.02 | -31.77 | 113.89 | 0.5470 | -1068.0 | 999999 | |
| 1.91 | 8.50 | 1.13 | 5.04 | -19.58 | 322.80 | -31.99 | 114.94 | 0.5527 | -69.1 | -112.3 | |
| 2.17 | -33.00 | 1.29 | -33.00 | -18.96 | 322.71 | -32.08 | 113.82 | 0.5512 | 426.0 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -20.17 | 322.36 | -32.43 | 115.72 | 0.5609 | 741.0 | 592.8 | |
| 0.00 | 1.91 | 0.00 | 1.14 | -19.82 | 322.33 | -32.46 | 115.13 | 0.5599 | 887.0 | 740.6 | |
| 0.00 | 2.34 | 0.00 | 1.39 | -19.00 | 322.40 | -32.39 | 113.74 | 0.5554 | 571.0 | 458.8 | |
| 0.87 | 2.26 | 0.52 | 1.35 | -19.69 | 322.17 | -32.62 | 114.82 | 0.5613 | 840.4 | 683.6 | |
| 0.00 | 2.95 | 0.00 | 1.77 | -20.09 | 322.08 | -32.71 | 115.44 | 0.5642 | 847.0 | 751.7 | |
| 0.00 | 1.21 | 0.00 | 0.73 | -20.22 | 321.86 | -32.93 | 115.57 | 0.5677 | 586.0 | 528.9 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -20.35 | 321.83 | -32.96 | 115.76 | 0.5686 | 584.0 | 550.3 | |
| 0.00 | 1.39 | 0.00 | 0.83 | -19.67 | 321.91 | -32.88 | 114.66 | 0.5647 | 468.0 | 419.7 | |
| 0.00 | 2.95 | 0.00 | 1.78 | -20.48 | 321.49 | -33.30 | 115.81 | 0.5735 | 436.0 | 383.2 | |
| 0.00 | 1.21 | 0.00 | 0.74 | -20.74 | 321.31 | -33.48 | 116.16 | 0.5770 | 567.0 | 483.8 | |
| 0.00 | 1.21 | 0.00 | 0.73 | -20.28 | 321.35 | -33.44 | 115.42 | 0.5745 | 603.0 | 466.9 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -18.01 | 321.80 | -33.00 | 111.75 | 0.5598 | -546.0 | -480.8 | |
| 0.00 | 3.47 | 0.00 | 2.07 | -17.87 | 321.56 | -33.23 | 111.42 | 0.5624 | -619.0 | -704.3 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -19.89 | 321.06 | -33.73 | 114.63 | 0.5766 | 546.0 | 353.8 | |
| 0.00 | 1.56 | 0.00 | 0.94 | -18.11 | 320.99 | -33.81 | 111.59 | 0.5709 | -874.0 | -813.1 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -17.09 | 321.17 | -33.62 | 109.89 | 0.5651 | 571.0 | 523.5 | |
| 4.77 | 80.49 | 2.94 | 49.89 | -21.26 | 319.90 | -34.89 | 116.33 | 0.5971 | -1047.5 | -415.9 | |
| 0.00 | 2.78 | 0.00 | 1.70 | -20.62 | 320.03 | -34.76 | 115.36 | 0.5927 | -871.0 | -701.8 | |
| 0.78 | -53.00 | 0.48 | -53.00 | -20.93 | 319.91 | -34.88 | 115.79 | 0.5955 | -964.3 | 999999 | |
| 6.33 | 11.88 | 3.83 | 7.20 | -18.11 | 320.49 | -34.30 | 111.38 | 0.5774 | -944.7 | -704.8 | |
| 0.00 | 1.39 | 0.00 | 0.85 | -20.12 | 319.89 | -34.90 | 114.48 | 0.5925 | -710.0 | -575.4 | |
| 0.00 | 2.60 | 0.00 | 1.59 | -19.32 | 319.94 | -34.85 | 113.19 | 0.5889 | -503.0 | -465.0 | |
| 0.00 | 3.56 | 0.00 | 2.19 | -20.50 | 319.60 | -35.19 | 114.97 | 0.5977 | -858.0 | -647.1 | |
| 0.00 | 1.65 | 0.00 | 1.00 | -17.81 | 320.22 | -34.57 | 110.78 | 0.5801 | -667.0 | -606.3 | |
| 12.58 | -53.00 | 7.79 | -53.00 | -20.98 | 319.39 | -35.40 | 115.64 | 0.6023 | -1005.8 | 999999 | |
| 7.37 | -53.00 | 4.58 | -53.00 | -20.65 | 319.09 | -35.70 | 114.98 | 0.6047 | -858.7 | 999999 | |
| 0.87 | 2.78 | 0.54 | 1.72 | -20.34 | 319.05 | -35.74 | 114.47 | 0.6040 | -829.4 | -539.3 | |
| 3.73 | -53.00 | 2.33 | -53.00 | -21.03 | 318.82 | -35.97 | 115.48 | 0.6095 | -511.3 | 999999 | |
| 1.13 | -53.00 | 0.70 | -53.00 | -20.82 | 318.88 | -35.91 | 115.17 | 0.6080 | -439.3 | 999999 | |
| 11.10 | 233.07 | 6.89 | 144.59 | -19.71 | 318.87 | -35.92 | 113.39 | 0.6040 | -1016.8 | -274.1 | |
| 12.92 | -66.00 | 7.97 | -66.00 | -18.83 | 319.09 | -35.70 | 112.06 | 0.5981 | -1161.2 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.69 | -15.46 | 319.65 | -35.14 | 106.61 | 0.5812 | 759.0 | 637.2 | |
| 25.24 | -66.00 | 15.68 | -66.00 | -19.26 | 318.63 | -36.16 | 112.58 | 0.6055 | -996.1 | 999999 | |
| 5.72 | -66.00 | 3.55 | -66.00 | -18.74 | 318.69 | -36.11 | 111.76 | 0.6031 | -785.5 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.82 | -18.61 | 317.70 | -37.09 | 111.20 | 0.6153 | -415.0 | -269.8 | |
| 0.00 | 1.13 | 0.00 | 0.73 | -19.78 | 315.69 | -39.10 | 112.35 | 0.6440 | -525.0 | -433.8 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -17.19 | 315.87 | -38.92 | 108.41 | 0.6349 | -623.0 | -521.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
