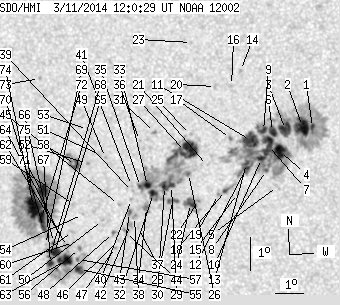

SDO HMI 2014-03-11 12:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 242.06 | 896.22 | 141.81 | 526.12 | -18.72 | 323.29 | -30.95 | 114.09 | 0.5340 | -3.7 | -63.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-11 12:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.52 | 326.18 | 1.39 | 182.65 | -17.51 | 329.12 | -25.12 | 115.15 | 0.4491 | 1145.7 | 323.8 | |
| 18.47 | -1.00 | 10.26 | -1.00 | -17.46 | 328.78 | -25.46 | 114.81 | 0.4536 | 1107.4 | 999999 | |
| 11.45 | -1.00 | 6.39 | -1.00 | -17.52 | 328.19 | -26.06 | 114.52 | 0.4624 | 962.8 | 999999 | |
| 12.14 | -1.00 | 6.81 | -1.00 | -18.17 | 327.87 | -26.37 | 115.63 | 0.4701 | 1047.0 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.27 | -19.23 | 327.62 | -26.62 | 117.55 | 0.4792 | 8.0 | -155.7 | |
| 5.55 | -1.00 | 3.11 | -1.00 | -17.55 | 327.73 | -26.52 | 114.29 | 0.4690 | 994.7 | 999999 | |
| 13.79 | -1.00 | 7.75 | -1.00 | -17.97 | 327.52 | -26.72 | 114.99 | 0.4739 | 916.1 | 999999 | |
| 0.95 | -1.00 | 0.54 | -1.00 | -18.72 | 327.32 | -26.92 | 116.35 | 0.4805 | 621.1 | 999999 | |
| 4.25 | -1.00 | 2.39 | -1.00 | -17.51 | 327.42 | -26.82 | 114.00 | 0.4730 | 884.8 | 999999 | |
| 3.30 | -1.00 | 1.86 | -1.00 | -18.35 | 327.21 | -27.03 | 115.54 | 0.4801 | 752.2 | 999999 | |
| 15.96 | -1.00 | 9.01 | -1.00 | -17.78 | 326.92 | -27.33 | 114.24 | 0.4814 | 852.7 | 999999 | |
| 2.69 | -1.00 | 1.53 | -1.00 | -18.59 | 326.64 | -27.61 | 115.64 | 0.4892 | 588.1 | 999999 | |
| 1.91 | -1.00 | 1.08 | -1.00 | -18.47 | 326.66 | -27.59 | 115.42 | 0.4883 | 411.0 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.83 | -15.66 | 326.90 | -27.34 | 109.93 | 0.4724 | 843.0 | 654.2 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -19.36 | 326.17 | -28.07 | 116.81 | 0.4994 | 258.0 | 249.2 | |
| 0.00 | 1.56 | 0.00 | 0.88 | -16.09 | 326.52 | -27.72 | 110.62 | 0.4795 | 573.0 | 510.1 | |
| 0.61 | 1.73 | 0.34 | 0.98 | -17.68 | 326.23 | -28.02 | 113.62 | 0.4905 | 766.4 | 616.0 | |
| 1.56 | 5.64 | 0.89 | 3.22 | -19.24 | 325.77 | -28.48 | 116.33 | 0.5043 | -877.2 | -562.9 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -19.35 | 325.49 | -28.75 | 116.36 | 0.5085 | -866.0 | -717.0 | |
| 0.00 | 2.08 | 0.00 | 1.18 | -16.09 | 325.96 | -28.29 | 110.33 | 0.4875 | 605.0 | 556.5 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -18.45 | 325.27 | -28.98 | 114.54 | 0.5072 | -771.0 | -549.7 | |
| 0.00 | 1.30 | 0.00 | 0.75 | -19.49 | 324.74 | -29.50 | 116.15 | 0.5193 | -727.0 | -674.6 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -14.72 | 325.32 | -28.92 | 107.31 | 0.4920 | 641.0 | 523.9 | |
| 6.76 | 14.05 | 3.93 | 8.16 | -19.56 | 324.43 | -29.81 | 116.10 | 0.5237 | -960.1 | -540.8 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -17.48 | 324.84 | -29.41 | 112.46 | 0.5089 | 629.0 | 529.0 | |
| 1.13 | 155.24 | 0.65 | 90.35 | -18.65 | 324.54 | -29.70 | 114.50 | 0.5180 | -963.8 | -366.4 | |
| 28.10 | -26.00 | 16.21 | -26.00 | -17.98 | 324.56 | -29.68 | 113.26 | 0.5147 | 801.4 | 999999 | |
| 2.95 | -26.00 | 1.72 | -26.00 | -19.43 | 323.80 | -30.44 | 115.51 | 0.5315 | -792.0 | 999999 | |
| 2.52 | -26.00 | 1.47 | -26.00 | -18.97 | 323.86 | -30.38 | 114.72 | 0.5286 | -994.6 | 999999 | |
| 2.95 | -26.00 | 1.72 | -26.00 | -18.99 | 323.60 | -30.64 | 114.60 | 0.5322 | -1034.1 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.11 | -17.34 | 323.56 | -30.68 | 111.57 | 0.5259 | 795.0 | 647.1 | |
| 4.16 | -26.00 | 2.44 | -26.00 | -19.17 | 323.16 | -31.09 | 114.70 | 0.5389 | -823.5 | 999999 | |
| 3.82 | -26.00 | 2.24 | -26.00 | -18.92 | 322.99 | -31.25 | 114.16 | 0.5400 | -1119.2 | 999999 | |
| 0.00 | 6.07 | 0.00 | 3.58 | -19.58 | 322.81 | -31.43 | 115.24 | 0.5453 | -203.0 | -37.1 | |
| 1.56 | -26.00 | 0.92 | -26.00 | -18.93 | 322.73 | -31.51 | 114.05 | 0.5436 | 365.5 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -17.54 | 322.98 | -31.27 | 111.68 | 0.5347 | 621.0 | 444.1 | |
| 0.00 | 0.52 | 0.00 | 0.31 | -20.17 | 322.38 | -31.86 | 116.03 | 0.5536 | 640.0 | 524.2 | |
| 0.00 | 1.56 | 0.00 | 0.93 | -19.83 | 322.31 | -31.93 | 115.40 | 0.5530 | 845.0 | 806.7 | |
| 0.00 | 1.39 | 0.00 | 0.82 | -19.07 | 322.40 | -31.84 | 114.12 | 0.5485 | 595.0 | 422.2 | |
| 0.00 | 1.47 | 0.00 | 0.87 | -19.30 | 322.31 | -31.93 | 114.50 | 0.5507 | 692.0 | 569.6 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -18.88 | 322.41 | -31.84 | 113.80 | 0.5477 | 671.0 | 473.5 | |
| 0.00 | 3.12 | 0.00 | 1.86 | -20.06 | 322.11 | -32.14 | 115.70 | 0.5567 | 917.0 | 694.9 | |
| 1.13 | 2.60 | 0.67 | 1.55 | -19.69 | 322.15 | -32.09 | 115.09 | 0.5545 | 882.8 | 737.4 | |
| 0.00 | 2.69 | 0.00 | 1.61 | -20.29 | 321.86 | -32.38 | 115.96 | 0.5609 | 611.0 | 548.9 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -19.42 | 321.80 | -32.44 | 114.45 | 0.5579 | 582.0 | 478.2 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -20.52 | 321.55 | -32.70 | 116.18 | 0.5660 | 509.0 | 453.9 | |
| 0.00 | 1.30 | 0.00 | 0.78 | -20.72 | 321.38 | -32.86 | 116.44 | 0.5690 | 534.0 | 461.5 | |
| 0.52 | 2.43 | 0.31 | 1.46 | -20.26 | 321.42 | -32.83 | 115.69 | 0.5665 | 593.8 | 465.1 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -17.97 | 321.63 | -32.61 | 111.85 | 0.5545 | -942.0 | -740.8 | |
| 0.00 | 1.39 | 0.00 | 0.83 | -19.87 | 321.10 | -33.15 | 114.87 | 0.5690 | 570.0 | 377.0 | |
| 0.00 | 2.52 | 0.00 | 1.50 | -17.87 | 321.43 | -32.81 | 111.58 | 0.5568 | -823.0 | -683.4 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -18.11 | 320.93 | -33.31 | 111.79 | 0.5644 | -898.0 | -807.4 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -17.09 | 321.15 | -33.10 | 110.10 | 0.5580 | 586.0 | 451.9 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -19.64 | 320.39 | -33.85 | 114.15 | 0.5772 | 590.0 | 485.6 | |
| 5.29 | 70.08 | 3.24 | 43.23 | -21.30 | 319.85 | -34.39 | 116.62 | 0.5909 | -964.9 | -319.0 | |
| 0.52 | 1.91 | 0.32 | 1.16 | -20.66 | 320.02 | -34.22 | 115.67 | 0.5861 | -868.0 | -711.7 | |
| 0.78 | 8.15 | 0.48 | 4.98 | -20.99 | 319.86 | -34.39 | 116.13 | 0.5896 | -890.9 | -657.4 | |
| 5.12 | 13.96 | 3.08 | 8.41 | -18.11 | 320.48 | -33.77 | 111.61 | 0.5704 | -916.2 | -708.7 | |
| 0.00 | 2.34 | 0.00 | 1.42 | -19.31 | 320.13 | -34.12 | 113.49 | 0.5794 | -324.0 | -229.4 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -20.46 | 319.84 | -34.40 | 115.26 | 0.5876 | -786.0 | -703.6 | |
| 0.00 | 1.99 | 0.00 | 1.22 | -20.13 | 319.89 | -34.36 | 114.73 | 0.5856 | -868.0 | -620.7 | |
| 0.00 | 1.65 | 0.00 | 1.01 | -20.57 | 319.58 | -34.66 | 115.31 | 0.5913 | -711.0 | -696.0 | |
| 11.27 | -55.00 | 6.94 | -55.00 | -20.99 | 319.39 | -34.85 | 115.90 | 0.5954 | -1019.6 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -20.44 | 319.50 | -34.75 | 115.06 | 0.5918 | -603.0 | -599.2 | |
| 7.46 | -55.00 | 4.60 | -55.00 | -20.71 | 319.04 | -35.21 | 115.30 | 0.5988 | -839.2 | 999999 | |
| 0.78 | 1.47 | 0.48 | 0.91 | -20.41 | 319.08 | -35.17 | 114.83 | 0.5970 | -803.1 | -654.9 | |
| 3.47 | -55.00 | 2.15 | -55.00 | -21.04 | 318.79 | -35.45 | 115.71 | 0.6031 | -542.2 | 999999 | |
| 1.21 | -55.00 | 0.75 | -55.00 | -20.85 | 318.80 | -35.44 | 115.42 | 0.6023 | -436.6 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.70 | -20.45 | 318.76 | -35.49 | 114.75 | 0.6013 | -355.0 | -213.2 | |
| 3.38 | 238.33 | 2.09 | 146.92 | -19.93 | 318.81 | -35.43 | 113.94 | 0.5985 | -849.9 | -261.5 | |
| 14.57 | -70.00 | 8.93 | -70.00 | -18.87 | 319.04 | -35.20 | 112.30 | 0.5918 | -1146.4 | 999999 | |
| 7.46 | -70.00 | 4.60 | -70.00 | -19.62 | 318.82 | -35.43 | 113.44 | 0.5974 | -1068.8 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.63 | -15.44 | 319.67 | -34.57 | 106.74 | 0.5733 | 808.0 | 691.1 | |
| 24.54 | -70.00 | 15.15 | -70.00 | -19.27 | 318.60 | -35.65 | 112.78 | 0.5990 | -983.3 | 999999 | |
| 5.46 | -70.00 | 3.37 | -70.00 | -18.78 | 318.64 | -35.60 | 112.00 | 0.5967 | -829.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
