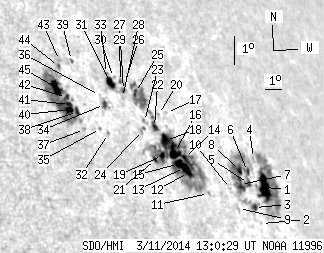

SDO HMI 2014-03-11 13:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 102.67 | 494.08 | 108.72 | 522.41 | 14.15 | 52.27 | 58.58 | 290.38 | 0.8830 | -21.2 | 0.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-11 13:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.33 | 87.15 | 26.17 | 108.00 | 13.54 | 57.00 | 63.31 | 288.29 | 0.9165 | -431.0 | 144.9 | |
| 0.00 | 0.78 | 0.00 | 0.92 | 12.33 | 56.24 | 62.55 | 287.20 | 0.9093 | -458.0 | -409.1 | |
| 2.69 | 74.58 | 3.16 | 86.99 | 12.80 | 55.98 | 62.29 | 287.77 | 0.9083 | -696.6 | -378.7 | |
| 0.00 | 1.56 | 0.00 | 1.91 | 14.42 | 56.68 | 62.99 | 289.31 | 0.9160 | -176.0 | -113.8 | |
| 2.08 | -3.00 | 2.45 | -3.00 | 13.55 | 55.92 | 62.22 | 288.58 | 0.9093 | -633.0 | 999999 | |
| 1.56 | -3.00 | 1.86 | -3.00 | 13.94 | 56.04 | 62.34 | 288.97 | 0.9108 | -423.1 | 999999 | |
| 5.81 | -3.00 | 6.72 | -3.00 | 13.45 | 55.35 | 61.65 | 288.64 | 0.9052 | -789.4 | 999999 | |
| 2.86 | -3.00 | 3.34 | -3.00 | 13.91 | 55.49 | 61.80 | 289.09 | 0.9070 | -637.5 | 999999 | |
| 0.00 | 2.51 | 0.00 | 2.84 | 12.64 | 54.87 | 61.18 | 287.90 | 0.9002 | -621.0 | -521.4 | |
| 0.00 | 0.95 | 0.00 | 1.07 | 13.24 | 54.62 | 60.92 | 288.62 | 0.8995 | -671.0 | -598.3 | |
| 0.00 | 1.82 | 0.00 | 1.95 | 12.92 | 53.12 | 59.42 | 288.70 | 0.8878 | -216.0 | -261.6 | |
| 1.91 | 195.03 | 1.99 | 200.04 | 13.47 | 52.14 | 58.44 | 289.59 | 0.8816 | 584.5 | -85.6 | |
| 2.43 | -12.00 | 2.52 | -12.00 | 13.60 | 51.96 | 58.26 | 289.80 | 0.8805 | 582.5 | 999999 | |
| 1.56 | -12.00 | 1.63 | -12.00 | 13.93 | 52.09 | 58.40 | 290.11 | 0.8823 | 8.5 | 999999 | |
| 3.99 | -12.00 | 4.11 | -12.00 | 13.70 | 51.71 | 58.01 | 289.98 | 0.8788 | 849.0 | 999999 | |
| 11.19 | -12.00 | 11.52 | -12.00 | 14.03 | 51.55 | 57.85 | 290.39 | 0.8783 | 560.9 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.72 | 15.31 | 51.62 | 57.92 | 291.76 | 0.8819 | -550.0 | -544.2 | |
| 8.76 | -12.00 | 8.93 | -12.00 | 14.37 | 51.16 | 57.47 | 290.88 | 0.8761 | -594.8 | 999999 | |
| 2.25 | -12.00 | 2.26 | -12.00 | 13.85 | 50.79 | 57.09 | 290.44 | 0.8719 | -587.5 | 999999 | |
| 0.00 | 1.04 | 0.00 | 1.07 | 15.19 | 51.10 | 57.41 | 291.79 | 0.8777 | -398.0 | -353.2 | |
| 1.39 | -12.00 | 1.37 | -12.00 | 13.68 | 50.32 | 56.63 | 290.39 | 0.8677 | 104.5 | 999999 | |
| 3.30 | -12.00 | 3.33 | -12.00 | 14.76 | 50.69 | 57.00 | 291.46 | 0.8734 | -567.9 | 999999 | |
| 0.00 | 2.86 | 0.00 | 2.85 | 14.86 | 50.17 | 56.47 | 291.75 | 0.8695 | -620.0 | -532.8 | |
| 0.00 | 3.30 | 0.00 | 3.25 | 14.55 | 49.93 | 56.24 | 291.49 | 0.8668 | -663.0 | -568.5 | |
| 1.91 | -12.00 | 1.91 | -12.00 | 15.77 | 50.04 | 56.35 | 292.79 | 0.8709 | 241.0 | 999999 | |
| 0.00 | 1.13 | 0.00 | 1.12 | 16.00 | 49.53 | 55.83 | 293.22 | 0.8675 | 262.0 | 165.2 | |
| 0.69 | 13.09 | 0.68 | 12.70 | 15.76 | 49.37 | 55.68 | 293.01 | 0.8656 | -312.6 | -14.6 | |
| 0.00 | 1.30 | 0.00 | 1.27 | 15.52 | 49.22 | 55.52 | 292.81 | 0.8637 | -357.0 | -343.5 | |
| 0.43 | 1.99 | 0.43 | 1.96 | 16.05 | 49.32 | 55.63 | 293.34 | 0.8660 | 315.4 | 188.2 | |
| 0.00 | 1.82 | 0.00 | 1.78 | 16.14 | 48.98 | 55.28 | 293.56 | 0.8635 | 260.0 | 323.9 | |
| 6.50 | -27.00 | 6.29 | -27.00 | 15.95 | 48.74 | 55.04 | 293.45 | 0.8610 | 491.3 | 999999 | |
| 0.00 | 1.21 | 0.00 | 1.13 | 14.25 | 47.97 | 54.28 | 291.83 | 0.8498 | 321.0 | 283.6 | |
| 0.00 | 0.69 | 0.00 | 0.67 | 16.23 | 48.63 | 54.94 | 293.79 | 0.8610 | 567.0 | 481.4 | |
| 1.82 | 4.42 | 1.72 | 4.18 | 15.18 | 48.11 | 54.41 | 292.82 | 0.8536 | 539.8 | 312.1 | |
| 0.00 | 1.04 | 0.00 | 0.96 | 14.37 | 47.59 | 53.90 | 292.10 | 0.8469 | 431.0 | 393.3 | |
| 0.00 | 1.04 | 0.00 | 0.98 | 15.45 | 47.94 | 54.25 | 293.18 | 0.8530 | 347.0 | 222.2 | |
| 0.00 | 1.47 | 0.00 | 1.33 | 14.24 | 46.72 | 53.02 | 292.28 | 0.8389 | 533.0 | 418.1 | |
| 2.43 | 88.10 | 2.20 | 78.59 | 14.80 | 46.55 | 52.86 | 292.97 | 0.8392 | 524.8 | 513.6 | |
| 0.00 | 1.39 | 0.00 | 1.29 | 16.46 | 46.87 | 53.17 | 294.71 | 0.8471 | 463.0 | 449.8 | |
| 3.82 | -38.00 | 3.42 | -38.00 | 14.82 | 46.15 | 52.45 | 293.15 | 0.8358 | 913.7 | 999999 | |
| 1.47 | -38.00 | 1.33 | -38.00 | 14.98 | 46.21 | 52.51 | 293.31 | 0.8368 | 847.5 | 999999 | |
| 1.99 | -38.00 | 1.79 | -38.00 | 15.20 | 46.13 | 52.44 | 293.58 | 0.8368 | 670.7 | 999999 | |
| 0.00 | 1.13 | 0.00 | 1.03 | 16.39 | 46.22 | 52.52 | 294.89 | 0.8414 | -339.0 | -271.2 | |
| 0.52 | 1.99 | 0.47 | 1.81 | 16.18 | 46.09 | 52.39 | 294.71 | 0.8396 | 166.3 | 106.9 | |
| 7.98 | -38.00 | 7.12 | -38.00 | 15.47 | 45.67 | 51.98 | 294.07 | 0.8337 | 928.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
