SDO HMI 2014-03-11 14:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.11 | 483.33 | 112.74 | 521.12 | 14.09 | 52.39 | 59.24 | 290.11 | 0.8878 | -17.2 | 3.1 | |
|
previous
or next observation for the same group /

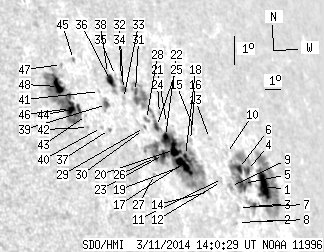

back to the solar disc SDO HMI 2014-03-11 14:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.68 | 87.92 | 24.68 | 111.47 | 13.54 | 57.00 | 63.85 | 288.15 | 0.9201 | -446.3 | 140.0 | |
| 0.00 | 1.39 | 0.00 | 1.67 | 12.35 | 56.16 | 63.02 | 287.10 | 0.9125 | -458.0 | -426.8 | |
| 1.73 | 10.06 | 2.08 | 11.99 | 12.84 | 56.04 | 62.89 | 287.65 | 0.9126 | -697.3 | -584.0 | |
| 3.47 | 58.79 | 4.21 | 70.18 | 13.94 | 56.09 | 62.94 | 288.81 | 0.9148 | -433.2 | -293.7 | |
| 11.10 | -4.00 | 13.18 | -4.00 | 13.47 | 55.59 | 62.45 | 288.45 | 0.9107 | -742.9 | 999999 | |
| 3.90 | -4.00 | 4.64 | -4.00 | 13.93 | 55.48 | 62.33 | 288.97 | 0.9107 | -608.4 | 999999 | |
| 0.00 | 1.47 | 0.00 | 1.69 | 12.64 | 54.89 | 61.75 | 287.75 | 0.9043 | -667.0 | -547.4 | |
| 0.00 | 0.61 | 0.00 | 0.69 | 12.14 | 54.62 | 61.48 | 287.28 | 0.9014 | -528.0 | -526.7 | |
| 0.00 | 3.29 | 0.00 | 3.78 | 13.27 | 54.65 | 61.50 | 288.49 | 0.9037 | -691.0 | -557.5 | |
| 0.00 | 1.04 | 0.00 | 1.22 | 14.34 | 54.88 | 61.73 | 289.56 | 0.9074 | -401.0 | -410.9 | |
| 0.00 | 0.52 | 0.00 | 0.59 | 13.48 | 54.22 | 61.08 | 288.83 | 0.9011 | -398.0 | -472.8 | |
| 0.00 | 1.04 | 0.00 | 1.17 | 13.37 | 54.11 | 60.97 | 288.74 | 0.9001 | -494.0 | -460.0 | |
| 0.00 | 1.21 | 0.00 | 1.38 | 14.71 | 53.96 | 60.81 | 290.22 | 0.9017 | -242.0 | -190.1 | |
| 0.00 | 0.69 | 0.00 | 0.76 | 12.95 | 53.18 | 60.04 | 288.56 | 0.8925 | -288.0 | -266.2 | |
| 0.00 | 0.43 | 0.00 | 0.48 | 14.89 | 53.10 | 59.96 | 290.68 | 0.8960 | -362.0 | -333.4 | |
| 0.00 | 1.91 | 0.00 | 2.07 | 14.50 | 52.68 | 59.53 | 290.38 | 0.8921 | -292.0 | -299.5 | |
| 1.39 | 186.50 | 1.48 | 194.48 | 13.81 | 52.20 | 59.05 | 289.78 | 0.8870 | -195.9 | -114.1 | |
| 1.56 | -17.00 | 1.66 | -17.00 | 13.97 | 52.14 | 59.00 | 289.96 | 0.8869 | -20.2 | 999999 | |
| 12.40 | -17.00 | 13.05 | -17.00 | 13.62 | 51.88 | 58.74 | 289.67 | 0.8842 | 718.4 | 999999 | |
| 10.23 | -17.00 | 10.70 | -17.00 | 14.09 | 51.54 | 58.39 | 290.28 | 0.8826 | 553.3 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.73 | 14.90 | 51.41 | 58.27 | 291.20 | 0.8835 | 56.0 | 14.0 | |
| 2.17 | -17.00 | 2.25 | -17.00 | 14.46 | 51.16 | 58.02 | 290.80 | 0.8806 | -705.5 | 999999 | |
| 3.29 | -17.00 | 3.36 | -17.00 | 13.85 | 50.80 | 57.65 | 290.25 | 0.8763 | -468.4 | 999999 | |
| 0.00 | 1.47 | 0.00 | 1.54 | 15.18 | 51.12 | 57.98 | 291.60 | 0.8820 | -390.0 | -390.8 | |
| 2.77 | -17.00 | 2.85 | -17.00 | 14.73 | 50.75 | 57.61 | 291.23 | 0.8781 | -571.7 | 999999 | |
| 1.99 | -17.00 | 2.00 | -17.00 | 13.70 | 50.28 | 57.14 | 290.25 | 0.8719 | 64.1 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.95 | 13.13 | 50.02 | 56.87 | 289.72 | 0.8683 | 379.0 | 285.0 | |
| 0.00 | 2.77 | 0.00 | 2.81 | 14.90 | 50.25 | 57.10 | 291.58 | 0.8746 | -590.0 | -537.5 | |
| 0.00 | 1.13 | 0.00 | 1.13 | 14.62 | 50.02 | 56.87 | 291.35 | 0.8721 | -606.0 | -544.8 | |
| 0.00 | 0.61 | 0.00 | 0.61 | 14.54 | 49.93 | 56.79 | 291.30 | 0.8712 | -679.0 | -634.0 | |
| 1.21 | -17.00 | 1.23 | -17.00 | 15.76 | 49.99 | 56.84 | 292.61 | 0.8748 | 358.9 | 999999 | |
| 1.21 | 2.86 | 1.21 | 2.85 | 15.75 | 49.31 | 56.16 | 292.83 | 0.8694 | -328.6 | -204.5 | |
| 0.00 | 1.73 | 0.00 | 1.72 | 15.45 | 49.18 | 56.04 | 292.54 | 0.8676 | -440.0 | -450.4 | |
| 0.00 | 1.99 | 0.00 | 1.99 | 16.04 | 49.32 | 56.17 | 293.14 | 0.8703 | 341.0 | 239.4 | |
| 0.00 | 1.47 | 0.00 | 1.46 | 16.17 | 49.04 | 55.90 | 293.38 | 0.8684 | 247.0 | 154.6 | |
| 5.98 | 11.62 | 5.87 | 11.39 | 15.97 | 48.68 | 55.53 | 293.29 | 0.8650 | 492.3 | -9.4 | |
| 0.00 | 1.30 | 0.00 | 1.23 | 14.34 | 47.98 | 54.83 | 291.73 | 0.8547 | 415.0 | 335.1 | |
| 0.00 | 1.73 | 0.00 | 1.70 | 16.18 | 48.61 | 55.46 | 293.55 | 0.8650 | 470.0 | 452.2 | |
| 2.17 | 6.24 | 2.08 | 5.98 | 15.14 | 48.13 | 54.98 | 292.58 | 0.8582 | 534.3 | 395.4 | |
| 0.00 | 1.21 | 0.00 | 1.14 | 14.35 | 47.56 | 54.41 | 291.90 | 0.8512 | 448.0 | 398.4 | |
| 0.00 | 0.52 | 0.00 | 0.50 | 15.53 | 47.90 | 54.76 | 293.09 | 0.8575 | 317.0 | 258.8 | |
| 0.00 | 0.78 | 0.00 | 0.72 | 14.28 | 46.85 | 53.70 | 292.07 | 0.8449 | 474.0 | 401.3 | |
| 0.00 | 0.61 | 0.00 | 0.56 | 14.66 | 46.88 | 53.73 | 292.49 | 0.8464 | 453.0 | 383.7 | |
| 2.25 | 84.36 | 2.07 | 76.23 | 14.85 | 46.53 | 53.38 | 292.83 | 0.8439 | 474.2 | 537.3 | |
| 0.00 | 1.21 | 0.00 | 1.14 | 16.45 | 46.88 | 53.74 | 294.48 | 0.8518 | 527.0 | 475.0 | |
| 7.46 | -44.00 | 6.77 | -44.00 | 14.80 | 46.10 | 52.95 | 292.94 | 0.8401 | 867.7 | 999999 | |
| 0.00 | 1.21 | 0.00 | 1.12 | 16.21 | 46.16 | 53.02 | 294.50 | 0.8450 | 266.0 | 177.5 | |
| 8.15 | -44.00 | 7.37 | -44.00 | 15.47 | 45.72 | 52.58 | 293.83 | 0.8389 | 868.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
