SDO HMI 2014-03-11 15:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.98 | 468.15 | 108.73 | 514.49 | 14.09 | 52.45 | 59.86 | 289.93 | 0.8922 | -25.7 | 18.0 | |
|
previous
or next observation for the same group /

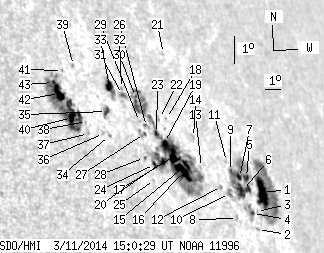

back to the solar disc SDO HMI 2014-03-11 15:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.24 | 88.69 | 27.24 | 115.15 | 13.58 | 57.10 | 64.50 | 288.02 | 0.9243 | -481.8 | 154.4 | |
| 0.00 | 1.30 | 0.00 | 1.59 | 12.31 | 56.14 | 63.54 | 286.93 | 0.9160 | -427.0 | -431.0 | |
| 0.00 | 1.82 | 0.00 | 2.26 | 12.90 | 56.34 | 63.74 | 287.50 | 0.9183 | -457.0 | -479.8 | |
| 1.04 | 9.28 | 1.27 | 11.29 | 12.80 | 56.01 | 63.42 | 287.47 | 0.9160 | -701.6 | -577.8 | |
| 3.38 | 54.70 | 4.20 | 66.93 | 13.94 | 56.15 | 63.56 | 288.65 | 0.9189 | -424.8 | -301.8 | |
| 10.84 | -5.00 | 13.17 | -5.00 | 13.48 | 55.65 | 63.05 | 288.29 | 0.9147 | -742.7 | 999999 | |
| 2.43 | -5.00 | 2.96 | -5.00 | 13.88 | 55.64 | 63.05 | 288.72 | 0.9154 | -639.8 | 999999 | |
| 0.00 | 1.21 | 0.00 | 1.42 | 12.51 | 54.87 | 62.28 | 287.47 | 0.9077 | -421.0 | -457.5 | |
| 0.87 | -5.00 | 1.04 | -5.00 | 14.01 | 55.09 | 62.50 | 289.00 | 0.9120 | -428.5 | 999999 | |
| 0.00 | 3.90 | 0.00 | 4.57 | 13.27 | 54.68 | 62.08 | 288.33 | 0.9078 | -443.0 | -446.5 | |
| 0.00 | 1.04 | 0.00 | 1.24 | 14.31 | 54.97 | 62.38 | 289.36 | 0.9117 | -529.0 | -497.3 | |
| 0.00 | 0.95 | 0.00 | 1.10 | 13.44 | 54.23 | 61.64 | 288.63 | 0.9050 | -446.0 | -385.2 | |
| 0.00 | 0.61 | 0.00 | 0.68 | 13.92 | 53.17 | 60.57 | 289.45 | 0.8984 | -224.0 | -189.4 | |
| 0.00 | 1.73 | 0.00 | 1.95 | 14.86 | 53.09 | 60.50 | 290.47 | 0.8998 | -250.0 | -274.0 | |
| 3.99 | 178.33 | 4.32 | 189.08 | 13.91 | 52.23 | 59.63 | 289.71 | 0.8915 | -112.0 | -89.4 | |
| 11.36 | -15.00 | 12.17 | -15.00 | 13.65 | 51.94 | 59.34 | 289.52 | 0.8888 | 790.8 | 999999 | |
| 8.50 | -15.00 | 9.03 | -15.00 | 14.08 | 51.52 | 58.92 | 290.11 | 0.8866 | 641.5 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.56 | 15.29 | 51.63 | 59.04 | 291.39 | 0.8902 | -399.0 | -489.2 | |
| 2.60 | -15.00 | 2.74 | -15.00 | 14.48 | 51.15 | 58.55 | 290.66 | 0.8847 | -737.2 | 999999 | |
| 2.60 | -15.00 | 2.70 | -15.00 | 13.84 | 50.83 | 58.23 | 290.07 | 0.8808 | -504.5 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.30 | 17.48 | 52.55 | 59.96 | 293.43 | 0.9018 | -218.0 | -269.7 | |
| 0.00 | 0.52 | 0.00 | 0.55 | 15.25 | 51.19 | 58.59 | 291.48 | 0.8868 | -393.0 | -414.3 | |
| 2.08 | -15.00 | 2.17 | -15.00 | 14.72 | 50.78 | 58.19 | 291.04 | 0.8825 | -486.7 | 999999 | |
| 1.82 | -15.00 | 1.86 | -15.00 | 13.69 | 50.24 | 57.64 | 290.08 | 0.8758 | 108.1 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.52 | 13.19 | 50.05 | 57.46 | 289.60 | 0.8732 | 360.0 | 242.8 | |
| 0.00 | 2.08 | 0.00 | 2.15 | 14.89 | 50.27 | 57.67 | 291.39 | 0.8790 | -628.0 | -548.4 | |
| 0.43 | 4.94 | 0.44 | 5.03 | 14.64 | 50.05 | 57.45 | 291.19 | 0.8767 | -512.2 | -513.3 | |
| 0.35 | 1.39 | 0.35 | 1.40 | 13.85 | 49.73 | 57.13 | 290.42 | 0.8722 | 334.8 | 274.8 | |
| 0.00 | 0.87 | 0.00 | 0.89 | 15.01 | 49.91 | 57.32 | 291.63 | 0.8765 | -334.0 | -384.8 | |
| 0.61 | -15.00 | 0.63 | -15.00 | 15.82 | 50.04 | 57.44 | 292.47 | 0.8795 | 476.7 | 999999 | |
| 0.69 | 2.86 | 0.70 | 2.90 | 15.80 | 49.28 | 56.69 | 292.71 | 0.8737 | -297.8 | -308.7 | |
| 0.00 | 0.78 | 0.00 | 0.79 | 15.99 | 49.31 | 56.72 | 292.91 | 0.8744 | 199.0 | 185.4 | |
| 5.12 | 12.83 | 5.08 | 12.75 | 15.99 | 48.63 | 56.04 | 293.13 | 0.8691 | 536.9 | 138.9 | |
| 0.00 | 1.39 | 0.00 | 1.33 | 14.36 | 47.97 | 55.38 | 291.57 | 0.8593 | 191.0 | 243.0 | |
| 2.25 | 5.72 | 2.19 | 5.56 | 15.13 | 48.11 | 55.52 | 292.38 | 0.8626 | 535.3 | 395.7 | |
| 0.00 | 1.13 | 0.00 | 1.08 | 14.39 | 47.66 | 55.06 | 291.71 | 0.8568 | 483.0 | 446.0 | |
| 0.00 | 1.04 | 0.00 | 0.97 | 14.30 | 46.83 | 54.23 | 291.90 | 0.8495 | 256.0 | 273.2 | |
| 0.00 | 0.43 | 0.00 | 0.41 | 14.68 | 46.86 | 54.26 | 292.32 | 0.8509 | 302.0 | 364.0 | |
| 0.00 | 0.87 | 0.00 | 0.83 | 16.47 | 46.87 | 54.27 | 294.30 | 0.8563 | 558.0 | 520.3 | |
| 5.81 | 85.57 | 5.34 | 78.40 | 14.73 | 46.14 | 53.55 | 292.64 | 0.8450 | 885.2 | 526.5 | |
| 0.00 | 0.87 | 0.00 | 0.81 | 16.24 | 46.19 | 53.60 | 294.30 | 0.8500 | 25.0 | 39.7 | |
| 9.19 | -40.00 | 8.42 | -40.00 | 15.45 | 45.73 | 53.14 | 293.60 | 0.8437 | 917.3 | 999999 | |
| 0.78 | -40.00 | 0.71 | -40.00 | 15.79 | 45.55 | 52.95 | 294.05 | 0.8431 | 673.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
