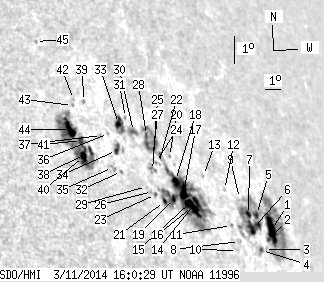

SDO HMI 2014-03-11 16:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.34 | 461.50 | 103.40 | 514.45 | 14.15 | 52.32 | 60.27 | 289.87 | 0.8953 | 6.0 | 18.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-11 16:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.21 | 147.45 | 21.31 | 190.80 | 13.59 | 57.13 | 65.08 | 287.88 | 0.9279 | -463.5 | -52.8 | |
| 0.87 | -1.00 | 1.12 | -1.00 | 13.22 | 56.72 | 64.68 | 287.61 | 0.9249 | -426.9 | 999999 | |
| 0.00 | 1.73 | 0.00 | 2.19 | 12.86 | 56.26 | 64.21 | 287.34 | 0.9213 | -528.0 | -547.8 | |
| 1.13 | 3.73 | 1.41 | 4.65 | 12.80 | 56.02 | 63.97 | 287.33 | 0.9196 | -684.2 | -591.4 | |
| 3.21 | -1.00 | 4.08 | -1.00 | 13.95 | 56.24 | 64.19 | 288.50 | 0.9230 | -400.7 | 999999 | |
| 11.44 | -1.00 | 14.28 | -1.00 | 13.49 | 55.79 | 63.75 | 288.13 | 0.9193 | -699.1 | 999999 | |
| 2.69 | -1.00 | 3.34 | -1.00 | 13.88 | 55.64 | 63.59 | 288.58 | 0.9190 | -620.2 | 999999 | |
| 0.00 | 2.34 | 0.00 | 2.77 | 12.91 | 54.56 | 62.52 | 287.83 | 0.9101 | -626.0 | -487.4 | |
| 0.00 | 0.43 | 0.00 | 0.53 | 14.34 | 55.25 | 63.20 | 289.17 | 0.9173 | -356.0 | -367.8 | |
| 0.00 | 1.21 | 0.00 | 1.42 | 12.60 | 54.29 | 62.25 | 287.57 | 0.9077 | -288.0 | -282.8 | |
| 0.00 | 1.21 | 0.00 | 1.43 | 13.38 | 54.24 | 62.20 | 288.41 | 0.9088 | -294.0 | -414.6 | |
| 0.00 | 0.95 | 0.00 | 1.14 | 14.52 | 54.32 | 62.28 | 289.61 | 0.9115 | -295.0 | -261.1 | |
| 0.00 | 1.21 | 0.00 | 1.39 | 14.82 | 53.10 | 61.05 | 290.28 | 0.9037 | -313.0 | -242.9 | |
| 2.69 | 164.53 | 2.96 | 177.38 | 13.90 | 52.23 | 60.19 | 289.54 | 0.8956 | -60.9 | -76.8 | |
| 0.78 | -14.00 | 0.86 | -14.00 | 13.99 | 52.14 | 60.10 | 289.66 | 0.8951 | 26.1 | 999999 | |
| 9.62 | -14.00 | 10.48 | -14.00 | 13.71 | 51.90 | 59.85 | 289.43 | 0.8927 | 850.4 | 999999 | |
| 7.63 | -14.00 | 8.26 | -14.00 | 14.11 | 51.52 | 59.47 | 289.98 | 0.8908 | 634.6 | 999999 | |
| 3.21 | -14.00 | 3.44 | -14.00 | 14.45 | 51.18 | 59.14 | 290.45 | 0.8891 | -745.8 | 999999 | |
| 2.08 | -14.00 | 2.20 | -14.00 | 13.84 | 50.80 | 58.76 | 289.90 | 0.8848 | -489.9 | 999999 | |
| 0.00 | 0.95 | 0.00 | 1.03 | 15.21 | 51.16 | 59.12 | 291.27 | 0.8906 | -178.0 | -215.1 | |
| 1.65 | -14.00 | 1.71 | -14.00 | 13.68 | 50.21 | 58.16 | 289.91 | 0.8799 | 72.2 | 999999 | |
| 0.00 | 1.39 | 0.00 | 1.46 | 14.90 | 50.36 | 58.32 | 291.19 | 0.8839 | -613.0 | -520.5 | |
| 0.00 | 1.47 | 0.00 | 1.51 | 13.85 | 49.75 | 57.71 | 290.24 | 0.8767 | 348.0 | 231.8 | |
| 0.00 | 0.78 | 0.00 | 0.82 | 14.91 | 50.19 | 58.15 | 291.26 | 0.8827 | -487.0 | -518.8 | |
| 0.00 | 4.51 | 0.00 | 4.66 | 14.62 | 49.89 | 57.85 | 291.04 | 0.8797 | -613.0 | -495.2 | |
| 0.00 | 1.65 | 0.00 | 1.68 | 13.93 | 49.61 | 57.56 | 290.37 | 0.8758 | 253.0 | 205.1 | |
| 0.00 | 0.69 | 0.00 | 0.72 | 14.99 | 50.05 | 58.00 | 291.39 | 0.8818 | -580.0 | -499.0 | |
| 1.30 | -14.00 | 1.36 | -14.00 | 15.75 | 50.04 | 57.99 | 292.22 | 0.8835 | 352.5 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.35 | 14.05 | 49.31 | 57.27 | 290.60 | 0.8738 | 61.0 | 125.8 | |
| 1.56 | 7.37 | 1.60 | 7.55 | 15.80 | 49.30 | 57.26 | 292.51 | 0.8781 | -310.0 | -224.6 | |
| 0.00 | 0.87 | 0.00 | 0.89 | 16.21 | 49.03 | 56.98 | 293.06 | 0.8771 | 159.0 | 116.2 | |
| 0.00 | 1.04 | 0.00 | 1.02 | 14.39 | 48.04 | 55.99 | 291.39 | 0.8644 | 313.0 | 278.7 | |
| 5.29 | 12.48 | 5.32 | 12.57 | 15.97 | 48.52 | 56.48 | 292.96 | 0.8725 | 509.7 | 147.8 | |
| 1.99 | 5.55 | 1.96 | 5.47 | 15.05 | 48.02 | 55.98 | 292.13 | 0.8661 | 473.8 | 418.9 | |
| 0.00 | 3.21 | 0.00 | 3.10 | 14.47 | 47.57 | 55.53 | 291.64 | 0.8608 | 384.0 | 339.7 | |
| 0.00 | 0.78 | 0.00 | 0.77 | 15.57 | 47.79 | 55.75 | 292.78 | 0.8656 | 376.0 | 307.6 | |
| 0.00 | 1.56 | 0.00 | 1.51 | 15.46 | 47.36 | 55.32 | 292.81 | 0.8619 | 194.0 | 100.9 | |
| 2.69 | 87.64 | 2.54 | 81.43 | 14.86 | 46.53 | 54.49 | 292.44 | 0.8533 | 380.2 | 515.7 | |
| 0.00 | 1.13 | 0.00 | 1.09 | 16.49 | 46.87 | 54.82 | 294.13 | 0.8608 | 511.0 | 465.4 | |
| 4.42 | -38.00 | 4.12 | -38.00 | 14.66 | 46.09 | 54.04 | 292.37 | 0.8490 | 881.2 | 999999 | |
| 3.21 | -38.00 | 3.00 | -38.00 | 15.17 | 46.17 | 54.13 | 292.92 | 0.8512 | 709.0 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.99 | 16.50 | 46.27 | 54.23 | 294.35 | 0.8560 | -168.0 | -226.2 | |
| 0.00 | 1.21 | 0.00 | 1.15 | 16.29 | 46.14 | 54.09 | 294.17 | 0.8542 | -91.0 | -62.5 | |
| 8.67 | -38.00 | 8.05 | -38.00 | 15.48 | 45.71 | 53.66 | 293.43 | 0.8482 | 945.7 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.98 | 18.24 | 45.01 | 52.97 | 296.76 | 0.8512 | 167.0 | 256.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
