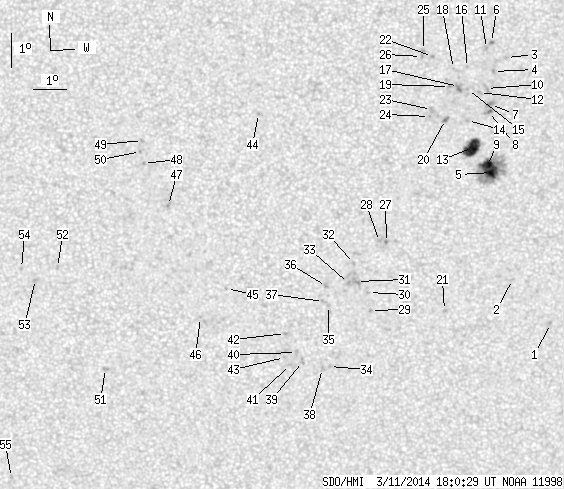

SDO HMI 2014-03-11 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.27 | 177.04 | 17.70 | 88.80 | -10.41 | 358.00 | 7.05 | 240.22 | 0.1519 | 510.6 | 378.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-11 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.47 | 0.00 | 0.75 | -14.52 | 2.22 | 11.27 | 235.61 | 0.2304 | 798.0 | 648.8 | |
| 0.00 | 1.13 | 0.00 | 0.57 | -13.23 | 0.97 | 10.03 | 237.82 | 0.2012 | 841.0 | 670.2 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -6.62 | 0.59 | 9.65 | 272.98 | 0.1675 | 785.0 | 551.0 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -7.04 | 0.21 | 9.26 | 270.51 | 0.1605 | 951.0 | 806.1 | |
| 10.05 | 60.93 | 5.05 | 30.61 | -10.05 | 0.22 | 9.27 | 252.16 | 0.1675 | 1293.4 | 494.2 | |
| 0.00 | 1.91 | 0.00 | 0.96 | -6.18 | 0.13 | 9.19 | 275.92 | 0.1603 | 1009.0 | 863.5 | |
| 0.00 | 4.25 | 0.00 | 2.13 | -8.03 | 0.14 | 9.19 | 264.32 | 0.1597 | 1060.0 | 914.7 | |
| 0.00 | 3.29 | 0.00 | 1.65 | -8.24 | 0.08 | 9.14 | 262.98 | 0.1591 | 1066.0 | 878.7 | |
| 8.23 | -5.00 | 4.13 | -5.00 | -9.85 | 0.09 | 9.15 | 253.16 | 0.1644 | 1387.6 | 999999 | |
| 0.00 | 3.55 | 0.00 | 1.78 | -7.55 | 0.00 | 9.06 | 267.28 | 0.1570 | 811.0 | 771.8 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -6.36 | 359.98 | 9.04 | 274.89 | 0.1574 | 949.0 | 786.8 | |
| 0.00 | 1.65 | 0.00 | 0.83 | -7.68 | 359.79 | 8.85 | 266.44 | 0.1535 | 999.0 | 843.4 | |
| 16.99 | 22.02 | 8.52 | 11.04 | -9.32 | 359.62 | 8.67 | 255.66 | 0.1543 | 1192.3 | 690.2 | |
| 0.00 | 1.65 | 0.00 | 0.82 | -8.52 | 359.45 | 8.50 | 260.67 | 0.1489 | 739.0 | 609.1 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -7.59 | 359.43 | 8.48 | 266.90 | 0.1471 | 966.0 | 744.0 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -6.94 | 359.42 | 8.47 | 271.37 | 0.1470 | 720.0 | 560.4 | |
| 0.00 | 4.77 | 0.00 | 2.39 | -7.51 | 359.15 | 8.21 | 267.43 | 0.1424 | 1076.0 | 902.6 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -6.98 | 358.99 | 8.05 | 271.23 | 0.1397 | 703.0 | 557.8 | |
| 0.00 | 1.39 | 0.00 | 0.69 | -7.51 | 358.88 | 7.94 | 267.34 | 0.1377 | 928.0 | 751.6 | |
| 0.00 | 3.03 | 0.00 | 1.52 | -8.50 | 358.78 | 7.83 | 260.11 | 0.1375 | 1191.0 | 960.3 | |
| 0.00 | 1.65 | 0.00 | 0.83 | -14.20 | 358.90 | 7.96 | 227.56 | 0.1827 | 794.0 | 661.0 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -6.63 | 358.35 | 7.41 | 274.13 | 0.1290 | 1026.0 | 838.2 | |
| 0.00 | 2.95 | 0.00 | 1.47 | -8.21 | 358.35 | 7.40 | 261.84 | 0.1294 | 803.0 | 720.7 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -8.42 | 358.29 | 7.35 | 260.17 | 0.1290 | 946.0 | 800.1 | |
| 0.00 | 1.91 | 0.00 | 0.95 | -6.45 | 358.08 | 7.14 | 275.72 | 0.1246 | 985.0 | 815.1 | |
| 0.00 | 1.39 | 0.00 | 0.69 | -6.63 | 358.02 | 7.08 | 274.32 | 0.1233 | 765.0 | 752.9 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -12.19 | 357.06 | 6.11 | 230.00 | 0.1365 | 948.0 | 795.7 | |
| 0.00 | 1.13 | 0.00 | 0.56 | -12.16 | 356.84 | 5.90 | 229.16 | 0.1334 | 891.0 | 784.7 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -14.23 | 356.61 | 5.67 | 217.97 | 0.1563 | 1018.0 | 793.0 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -13.69 | 356.54 | 5.59 | 219.89 | 0.1484 | 864.0 | 709.2 | |
| 0.00 | 4.33 | 0.00 | 2.17 | -13.36 | 356.16 | 5.22 | 219.43 | 0.1399 | 907.0 | 794.8 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -12.83 | 356.09 | 5.15 | 221.68 | 0.1321 | 762.0 | 570.3 | |
| 0.00 | 2.08 | 0.00 | 1.04 | -13.43 | 355.92 | 4.97 | 217.82 | 0.1381 | 968.0 | 861.7 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -15.92 | 355.38 | 4.44 | 206.12 | 0.1698 | -884.0 | -693.1 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -14.09 | 355.31 | 4.37 | 211.63 | 0.1416 | 809.0 | 538.2 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -13.52 | 355.24 | 4.30 | 213.49 | 0.1327 | 973.0 | 772.5 | |
| 0.00 | 1.99 | 0.00 | 1.00 | -13.97 | 355.16 | 4.21 | 211.16 | 0.1385 | 895.0 | 635.9 | |
| 0.00 | 2.08 | 0.00 | 1.05 | -15.99 | 355.16 | 4.22 | 204.86 | 0.1691 | -834.0 | -630.2 | |
| 0.00 | 2.77 | 0.00 | 1.39 | -15.78 | 354.54 | 3.60 | 202.05 | 0.1616 | -960.0 | -756.8 | |
| 0.00 | 2.60 | 0.00 | 1.30 | -15.51 | 354.35 | 3.41 | 201.63 | 0.1561 | -823.0 | -712.5 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -15.87 | 354.17 | 3.23 | 199.77 | 0.1608 | -906.0 | -609.7 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -14.94 | 354.00 | 3.06 | 200.97 | 0.1448 | -877.0 | -638.1 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -15.66 | 353.98 | 3.04 | 199.14 | 0.1563 | -834.0 | -555.4 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -8.37 | 353.13 | 2.18 | 241.74 | 0.0430 | -1041.0 | -832.5 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -13.60 | 352.18 | 1.23 | 190.67 | 0.1136 | -891.0 | -707.8 | |
| 0.00 | 0.87 | 0.00 | 0.43 | -14.47 | 351.38 | 0.44 | 183.37 | 0.1270 | -785.0 | -606.2 | |
| 0.00 | 2.25 | 0.00 | 1.12 | -11.12 | 350.41 | -0.53 | 172.36 | 0.0689 | -980.0 | -741.4 | |
| 0.00 | 1.21 | 0.00 | 0.60 | -9.86 | 349.66 | -1.28 | 154.43 | 0.0514 | -1014.0 | -804.6 | |
| 0.00 | 1.65 | 0.00 | 0.82 | -9.18 | 349.63 | -1.31 | 146.56 | 0.0412 | -909.0 | -733.1 | |
| 0.00 | 1.13 | 0.00 | 0.56 | -9.50 | 349.57 | -1.37 | 149.37 | 0.0466 | -975.0 | -819.6 | |
| 0.00 | 2.51 | 0.00 | 1.26 | -15.99 | 348.44 | -2.50 | 164.63 | 0.1590 | -734.0 | -688.9 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -12.95 | 347.01 | -3.93 | 146.28 | 0.1209 | -878.0 | -638.8 | |
| 0.00 | 2.25 | 0.00 | 1.13 | -13.30 | 346.33 | -4.61 | 143.65 | 0.1326 | -859.0 | -705.6 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -12.97 | 345.91 | -5.03 | 139.64 | 0.1327 | -810.0 | -621.4 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -19.26 | 345.42 | -5.52 | 156.52 | 0.2291 | -785.0 | -702.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
