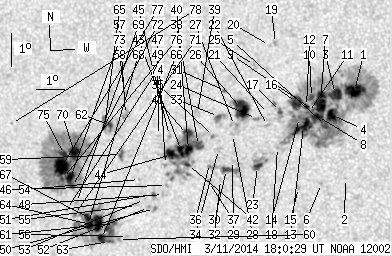

SDO HMI 2014-03-11 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 256.87 | 998.95 | 145.50 | 566.61 | -18.77 | 323.64 | -27.31 | 116.41 | 0.4850 | 63.2 | -40.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-11 18:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.98 | 406.43 | 10.26 | 221.43 | -17.47 | 329.11 | -21.84 | 117.74 | 0.4026 | 1294.6 | 349.4 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -20.12 | 328.43 | -22.51 | 122.87 | 0.4299 | 557.0 | 444.9 | |
| 10.83 | -1.00 | 5.89 | -1.00 | -17.56 | 328.45 | -22.49 | 117.35 | 0.4123 | 1139.5 | 999999 | |
| 10.49 | -1.00 | 5.72 | -1.00 | -18.19 | 328.27 | -22.68 | 118.58 | 0.4189 | 1192.3 | 999999 | |
| 4.42 | -1.00 | 2.42 | -1.00 | -18.48 | 327.99 | -22.96 | 118.97 | 0.4246 | 838.9 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -20.23 | 327.58 | -23.36 | 122.27 | 0.4418 | 735.0 | 570.6 | |
| 17.42 | -1.00 | 9.51 | -1.00 | -17.78 | 327.92 | -23.03 | 117.37 | 0.4212 | 1136.4 | 999999 | |
| 6.93 | -1.00 | 3.79 | -1.00 | -18.20 | 327.75 | -23.19 | 118.14 | 0.4260 | 917.5 | 999999 | |
| 1.04 | -1.00 | 0.57 | -1.00 | -18.01 | 327.64 | -23.30 | 117.64 | 0.4264 | 751.1 | 999999 | |
| 2.77 | -1.00 | 1.52 | -1.00 | -17.61 | 327.63 | -23.31 | 116.76 | 0.4242 | 959.5 | 999999 | |
| 0.95 | -1.00 | 0.52 | -1.00 | -18.06 | 327.47 | -23.48 | 117.60 | 0.4292 | 598.0 | 999999 | |
| 2.17 | -1.00 | 1.19 | -1.00 | -17.87 | 327.42 | -23.52 | 117.16 | 0.4287 | 927.2 | 999999 | |
| 15.34 | -1.00 | 8.43 | -1.00 | -18.47 | 327.24 | -23.71 | 118.29 | 0.4349 | 815.7 | 999999 | |
| 0.52 | -1.00 | 0.29 | -1.00 | -18.20 | 327.14 | -23.80 | 117.62 | 0.4346 | 470.5 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.11 | -20.32 | 326.77 | -24.17 | 121.68 | 0.4531 | 728.0 | 612.0 | |
| 11.70 | -1.00 | 6.42 | -1.00 | -17.74 | 327.10 | -23.84 | 116.60 | 0.4324 | 885.4 | 999999 | |
| 1.21 | 9.10 | 0.67 | 5.02 | -17.98 | 326.52 | -24.42 | 116.66 | 0.4419 | 782.4 | 292.7 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -19.06 | 326.25 | -24.70 | 118.70 | 0.4521 | -189.0 | -199.7 | |
| 0.00 | 1.82 | 0.00 | 1.00 | -15.93 | 326.63 | -24.31 | 112.27 | 0.4296 | 821.0 | 731.7 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -15.98 | 326.42 | -24.52 | 112.24 | 0.4329 | 719.0 | 608.3 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -18.02 | 326.10 | -24.84 | 116.42 | 0.4480 | 334.0 | 342.7 | |
| 0.00 | 2.43 | 0.00 | 1.35 | -18.38 | 326.01 | -24.93 | 117.10 | 0.4513 | -294.0 | -244.9 | |
| 4.07 | 15.43 | 2.28 | 8.62 | -19.60 | 325.46 | -25.48 | 119.15 | 0.4660 | -1078.0 | -551.9 | |
| 0.00 | 2.60 | 0.00 | 1.44 | -18.15 | 325.66 | -25.28 | 116.36 | 0.4548 | -563.0 | -583.8 | |
| 0.00 | 2.86 | 0.00 | 1.58 | -16.55 | 325.83 | -25.11 | 113.10 | 0.4441 | 606.0 | 519.5 | |
| 20.02 | 26.61 | 11.15 | 14.83 | -17.82 | 325.19 | -25.75 | 115.34 | 0.4595 | 932.8 | 240.3 | |
| 0.00 | 4.68 | 0.00 | 2.62 | -18.32 | 324.87 | -26.07 | 116.13 | 0.4667 | 317.0 | 132.6 | |
| 0.00 | 1.47 | 0.00 | 0.83 | -18.59 | 324.76 | -26.19 | 116.59 | 0.4697 | -540.0 | -451.2 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -19.38 | 324.62 | -26.32 | 118.05 | 0.4759 | -699.0 | -588.8 | |
| 3.81 | 16.64 | 2.15 | 9.39 | -19.64 | 324.36 | -26.58 | 118.37 | 0.4809 | -1023.4 | -694.1 | |
| 0.00 | 1.30 | 0.00 | 0.73 | -17.25 | 324.69 | -26.25 | 113.82 | 0.4637 | 765.0 | 686.6 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -19.93 | 324.10 | -26.85 | 118.73 | 0.4862 | 188.0 | 109.3 | |
| 1.39 | 7.11 | 0.78 | 3.99 | -18.02 | 324.36 | -26.58 | 115.18 | 0.4722 | 784.5 | 509.7 | |
| 0.00 | 3.64 | 0.00 | 2.05 | -19.02 | 324.19 | -26.75 | 117.04 | 0.4798 | -706.0 | -513.1 | |
| 0.00 | 1.99 | 0.00 | 1.12 | -18.61 | 324.08 | -26.86 | 116.17 | 0.4790 | -879.0 | -673.0 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -19.42 | 323.80 | -27.14 | 117.55 | 0.4873 | -606.0 | -648.8 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -19.97 | 323.66 | -27.28 | 118.49 | 0.4922 | 254.0 | 177.7 | |
| 5.29 | 98.21 | 3.00 | 55.99 | -18.86 | 323.51 | -27.43 | 116.26 | 0.4881 | -1024.4 | -102.0 | |
| 0.00 | 3.38 | 0.00 | 1.91 | -17.86 | 323.65 | -27.29 | 114.39 | 0.4812 | 125.0 | 247.5 | |
| 8.23 | -38.00 | 4.68 | -38.00 | -18.96 | 323.14 | -27.81 | 116.21 | 0.4937 | -1100.6 | 999999 | |
| 7.89 | -38.00 | 4.48 | -38.00 | -18.50 | 323.18 | -27.76 | 115.36 | 0.4908 | 17.6 | 999999 | |
| 2.08 | -38.00 | 1.19 | -38.00 | -19.41 | 323.02 | -27.93 | 116.99 | 0.4977 | -486.3 | 999999 | |
| 6.59 | -38.00 | 3.76 | -38.00 | -18.97 | 322.88 | -28.06 | 116.08 | 0.4973 | -938.8 | 999999 | |
| 9.10 | -38.00 | 5.21 | -38.00 | -19.07 | 322.51 | -28.44 | 116.03 | 0.5029 | 971.4 | 999999 | |
| 0.00 | 1.65 | 0.00 | 0.94 | -18.49 | 322.54 | -28.40 | 114.95 | 0.4995 | 616.0 | 373.2 | |
| 0.00 | 1.39 | 0.00 | 0.80 | -20.00 | 322.14 | -28.80 | 117.52 | 0.5125 | 916.0 | 743.0 | |
| 0.00 | 1.99 | 0.00 | 1.14 | -19.36 | 322.24 | -28.71 | 116.40 | 0.5080 | 769.0 | 653.3 | |
| 0.00 | 1.73 | 0.00 | 1.00 | -20.27 | 321.98 | -28.96 | 117.90 | 0.5161 | 767.0 | 629.8 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -18.47 | 322.15 | -28.79 | 114.68 | 0.5047 | -165.0 | -119.3 | |
| 0.00 | 2.08 | 0.00 | 1.21 | -20.67 | 321.57 | -29.37 | 118.37 | 0.5237 | 833.0 | 772.3 | |
| 0.95 | 3.29 | 0.55 | 1.91 | -20.25 | 321.62 | -29.32 | 117.64 | 0.5207 | 838.1 | 585.0 | |
| 0.00 | 1.56 | 0.00 | 0.91 | -20.63 | 321.36 | -29.58 | 118.16 | 0.5262 | 834.0 | 614.9 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -20.38 | 321.27 | -29.68 | 117.65 | 0.5261 | 615.0 | 490.2 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -19.76 | 321.21 | -29.73 | 116.51 | 0.5236 | 520.0 | 432.4 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -20.54 | 320.94 | -30.01 | 117.74 | 0.5312 | 486.0 | 305.7 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -21.47 | 320.39 | -30.55 | 119.02 | 0.5430 | -296.0 | -294.1 | |
| 0.00 | 4.85 | 0.00 | 2.80 | -17.77 | 321.10 | -29.85 | 112.77 | 0.5161 | -879.0 | -829.2 | |
| 0.00 | 1.47 | 0.00 | 0.85 | -17.10 | 321.18 | -29.76 | 111.57 | 0.5122 | 672.0 | 590.7 | |
| 1.91 | 5.72 | 1.11 | 3.33 | -18.96 | 320.72 | -30.22 | 114.78 | 0.5264 | -1038.9 | -830.3 | |
| 0.00 | 2.25 | 0.00 | 1.33 | -21.54 | 320.04 | -30.90 | 118.92 | 0.5479 | -913.0 | -592.3 | |
| 1.73 | 98.03 | 1.02 | 58.30 | -21.04 | 320.01 | -30.93 | 118.05 | 0.5458 | -1128.4 | -525.3 | |
| 1.99 | 20.20 | 1.16 | 11.74 | -18.07 | 320.50 | -30.45 | 113.02 | 0.5255 | -1096.0 | -744.8 | |
| 0.87 | -61.00 | 0.51 | -61.00 | -21.58 | 319.70 | -31.25 | 118.78 | 0.5525 | -892.3 | 999999 | |
| 2.60 | -61.00 | 1.54 | -61.00 | -21.18 | 319.72 | -31.23 | 118.11 | 0.5502 | -1200.1 | 999999 | |
| 1.30 | -62.00 | 0.76 | -62.00 | -18.08 | 320.27 | -30.67 | 112.94 | 0.5286 | -754.9 | 999999 | |
| 5.89 | -61.00 | 3.50 | -61.00 | -21.47 | 319.42 | -31.52 | 118.43 | 0.5554 | -849.4 | 999999 | |
| 13.87 | -61.00 | 8.23 | -61.00 | -20.97 | 319.39 | -31.55 | 117.57 | 0.5533 | -1170.2 | 999999 | |
| 10.57 | -61.00 | 6.30 | -61.00 | -20.95 | 319.06 | -31.88 | 117.34 | 0.5575 | -910.5 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.78 | -20.31 | 318.76 | -32.18 | 116.10 | 0.5584 | -699.0 | -561.5 | |
| 8.84 | 227.44 | 5.23 | 135.23 | -18.80 | 319.02 | -31.92 | 113.60 | 0.5483 | -1234.2 | -356.2 | |
| 0.00 | 1.39 | 0.00 | 0.83 | -20.67 | 318.60 | -32.35 | 116.62 | 0.5621 | -519.0 | -414.3 | |
| 1.65 | -70.00 | 0.98 | -70.00 | -19.82 | 318.72 | -32.22 | 115.23 | 0.5567 | -815.5 | 999999 | |
| 7.02 | -70.00 | 4.18 | -70.00 | -19.54 | 318.71 | -32.23 | 114.75 | 0.5556 | -1040.5 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -20.50 | 318.34 | -32.61 | 116.20 | 0.5647 | -407.0 | -313.2 | |
| 3.81 | -70.00 | 2.26 | -70.00 | -18.83 | 318.64 | -32.30 | 113.48 | 0.5535 | -949.2 | 999999 | |
| 1.47 | -70.00 | 0.88 | -70.00 | -19.55 | 318.41 | -32.53 | 114.62 | 0.5596 | -608.9 | 999999 | |
| 19.16 | -70.00 | 11.41 | -70.00 | -19.19 | 318.45 | -32.49 | 114.01 | 0.5575 | -1155.9 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -17.77 | 316.89 | -34.05 | 110.90 | 0.5730 | -647.0 | -476.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
