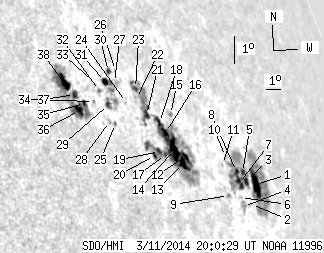

SDO HMI 2014-03-11 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.09 | 420.40 | 111.70 | 510.84 | 14.19 | 52.57 | 62.73 | 289.22 | 0.9124 | 16.7 | -14.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-11 20:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.25 | 138.17 | 25.11 | 197.89 | 13.60 | 57.24 | 67.40 | 287.35 | 0.9416 | -280.1 | -87.7 | |
| 0.00 | 1.04 | 0.00 | 1.45 | 12.89 | 56.52 | 66.68 | 286.78 | 0.9365 | -479.0 | -449.7 | |
| 2.77 | -1.00 | 3.90 | -1.00 | 13.61 | 56.53 | 66.69 | 287.53 | 0.9376 | -554.6 | 999999 | |
| 0.00 | 5.37 | 0.00 | 7.29 | 12.75 | 55.83 | 65.99 | 286.79 | 0.9322 | -507.0 | -483.5 | |
| 1.99 | -1.00 | 2.80 | -1.00 | 13.88 | 56.37 | 66.53 | 287.84 | 0.9370 | -407.8 | 999999 | |
| 0.00 | 0.87 | 0.00 | 1.17 | 13.02 | 55.74 | 65.90 | 287.09 | 0.9321 | -624.0 | -620.3 | |
| 5.29 | -1.00 | 7.25 | -1.00 | 13.51 | 55.93 | 66.09 | 287.56 | 0.9339 | -684.8 | 999999 | |
| 1.73 | -1.00 | 2.38 | -1.00 | 13.85 | 55.89 | 66.05 | 287.93 | 0.9342 | -590.5 | 999999 | |
| 0.00 | 1.56 | 0.00 | 2.03 | 12.97 | 54.83 | 64.99 | 287.27 | 0.9264 | -653.0 | -600.6 | |
| 0.00 | 0.95 | 0.00 | 1.28 | 14.25 | 55.29 | 65.45 | 288.49 | 0.9312 | -287.0 | -250.0 | |
| 0.00 | 0.95 | 0.00 | 1.26 | 13.96 | 54.90 | 65.06 | 288.28 | 0.9284 | -216.0 | -262.4 | |
| 2.86 | 160.01 | 3.42 | 185.51 | 13.90 | 52.28 | 62.44 | 288.91 | 0.9114 | -270.8 | -80.3 | |
| 5.55 | -12.00 | 6.54 | -12.00 | 13.65 | 52.03 | 62.19 | 288.72 | 0.9093 | 680.2 | 999999 | |
| 12.66 | -12.00 | 14.76 | -12.00 | 14.05 | 51.62 | 61.78 | 289.25 | 0.9072 | 563.7 | 999999 | |
| 0.00 | 1.99 | 0.00 | 2.38 | 15.19 | 51.92 | 62.09 | 290.38 | 0.9115 | -164.0 | -232.0 | |
| 4.25 | -12.00 | 4.91 | -12.00 | 14.54 | 51.27 | 61.43 | 289.88 | 0.9058 | -742.6 | 999999 | |
| 0.95 | -12.00 | 1.08 | -12.00 | 13.81 | 50.93 | 61.09 | 289.19 | 0.9019 | -422.5 | 999999 | |
| 2.86 | -12.00 | 3.29 | -12.00 | 14.83 | 51.02 | 61.18 | 290.25 | 0.9046 | -476.7 | 999999 | |
| 2.34 | -12.00 | 2.63 | -12.00 | 13.87 | 50.57 | 60.73 | 289.35 | 0.8995 | -476.9 | 999999 | |
| 1.56 | -12.00 | 1.73 | -12.00 | 13.70 | 50.18 | 60.34 | 289.28 | 0.8963 | 64.4 | 999999 | |
| 3.47 | -12.00 | 3.90 | -12.00 | 15.00 | 50.28 | 60.44 | 290.65 | 0.8997 | -584.0 | 999999 | |
| 0.00 | 1.65 | 0.00 | 1.84 | 15.46 | 49.87 | 60.03 | 291.27 | 0.8979 | -199.0 | -155.9 | |
| 2.08 | -12.00 | 2.33 | -12.00 | 15.79 | 49.97 | 60.13 | 291.59 | 0.8993 | 377.5 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.38 | 15.26 | 49.16 | 59.32 | 291.27 | 0.8922 | -472.0 | -432.2 | |
| 0.00 | 1.30 | 0.00 | 1.36 | 14.48 | 48.15 | 58.31 | 290.74 | 0.8829 | 368.0 | 311.1 | |
| 0.00 | 0.52 | 0.00 | 0.57 | 16.25 | 48.97 | 59.13 | 292.40 | 0.8931 | 176.0 | 169.2 | |
| 0.00 | 1.21 | 0.00 | 1.31 | 15.84 | 48.71 | 58.87 | 292.04 | 0.8903 | -377.0 | -345.5 | |
| 0.00 | 1.82 | 0.00 | 1.89 | 14.50 | 47.81 | 57.97 | 290.88 | 0.8804 | 443.0 | 422.0 | |
| 1.65 | 11.01 | 1.72 | 11.62 | 15.06 | 47.99 | 58.15 | 291.43 | 0.8831 | 440.4 | 103.7 | |
| 1.65 | 3.03 | 1.77 | 3.26 | 16.17 | 48.50 | 58.66 | 292.46 | 0.8896 | 415.8 | 361.4 | |
| 3.21 | 11.36 | 3.40 | 12.08 | 15.81 | 48.15 | 58.31 | 292.19 | 0.8861 | 314.9 | -75.1 | |
| 0.00 | 1.65 | 0.00 | 1.71 | 15.47 | 47.64 | 57.80 | 291.98 | 0.8815 | 573.0 | 471.7 | |
| 0.00 | 0.87 | 0.00 | 0.90 | 15.68 | 47.50 | 57.66 | 292.25 | 0.8809 | 421.0 | 356.9 | |
| 0.00 | 0.87 | 0.00 | 0.89 | 15.06 | 47.12 | 57.28 | 291.71 | 0.8764 | 431.0 | 414.3 | |
| 1.99 | 73.85 | 2.00 | 72.77 | 14.94 | 46.55 | 56.71 | 291.76 | 0.8717 | 505.3 | 437.6 | |
| 5.63 | -35.00 | 5.58 | -35.00 | 14.67 | 46.16 | 56.33 | 291.60 | 0.8679 | 794.4 | 999999 | |
| 2.60 | -35.00 | 2.58 | -35.00 | 15.17 | 46.09 | 56.25 | 292.18 | 0.8686 | 625.5 | 999999 | |
| 8.75 | -35.00 | 8.62 | -35.00 | 15.51 | 45.67 | 55.83 | 292.69 | 0.8662 | 830.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
