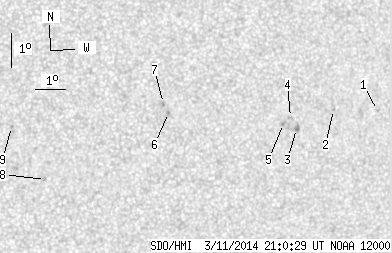

SDO HMI 2014-03-11 21:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.39 | 0.00 | 7.93 | -10.16 | 15.09 | 25.80 | 261.35 | 0.4346 | 442.3 | 508.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-11 21:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.45 | -9.56 | 19.60 | 30.31 | 263.38 | 0.5030 | 647.0 | 502.1 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -9.63 | 18.07 | 28.79 | 263.13 | 0.4802 | 645.0 | 535.1 | |
| 0.00 | 3.99 | 0.00 | 2.23 | -10.26 | 16.86 | 27.57 | 261.62 | 0.4623 | 853.0 | 722.9 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -9.95 | 16.63 | 27.34 | 262.28 | 0.4584 | 651.0 | 571.6 | |
| 0.00 | 1.99 | 0.00 | 1.11 | -10.14 | 16.41 | 27.12 | 261.83 | 0.4552 | 867.0 | 739.4 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -10.01 | 12.55 | 23.26 | 261.42 | 0.3950 | 915.0 | 696.9 | |
| 0.00 | 1.39 | 0.00 | 0.75 | -9.75 | 12.37 | 23.08 | 262.05 | 0.3918 | 877.0 | 694.7 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -12.18 | 8.70 | 19.42 | 253.97 | 0.3396 | -720.0 | -635.4 | |
| 0.00 | 1.13 | 0.00 | 0.59 | -10.64 | 7.51 | 18.22 | 257.91 | 0.3157 | -754.0 | -658.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
