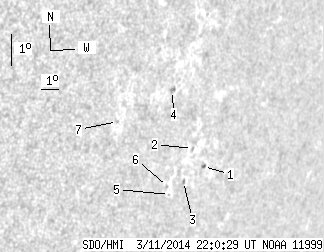

SDO HMI 2014-03-11 22:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.43 | 9.45 | 0.42 | 8.79 | -17.45 | 47.21 | 58.47 | 253.91 | 0.8482 | 56.3 | 141.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-11 22:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.43 | 1.65 | 0.42 | 1.61 | -17.97 | 49.04 | 60.31 | 253.38 | 0.8644 | 478.8 | 417.8 | |
| 0.00 | 1.39 | 0.00 | 1.32 | -17.51 | 48.10 | 59.36 | 253.87 | 0.8563 | 201.0 | 245.5 | |
| 0.00 | 1.30 | 0.00 | 1.24 | -18.53 | 48.10 | 59.37 | 252.68 | 0.8567 | 12.0 | -79.6 | |
| 0.00 | 2.86 | 0.00 | 2.58 | -15.93 | 46.13 | 57.40 | 255.66 | 0.8383 | 702.0 | 496.7 | |
| 0.00 | 0.69 | 0.00 | 0.65 | -19.00 | 47.51 | 58.77 | 252.09 | 0.8518 | -313.0 | -349.1 | |
| 0.00 | 0.69 | 0.00 | 0.65 | -18.77 | 47.26 | 58.52 | 252.34 | 0.8495 | -403.0 | -427.8 | |
| 0.00 | 0.87 | 0.00 | 0.74 | -17.14 | 43.58 | 54.85 | 254.06 | 0.8148 | -461.0 | -428.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
