SDO HMI 2014-03-11 22:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 259.11 | 1104.24 | 144.55 | 615.24 | -18.85 | 323.66 | -25.08 | 118.23 | 0.4550 | 39.2 | -19.3 | |
|
previous
or next observation for the same group /

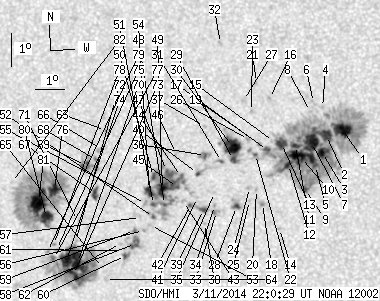

back to the solar disc SDO HMI 2014-03-11 22:00:29 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.77 | 445.19 | 9.47 | 238.93 | -17.46 | 329.24 | -19.50 | 120.10 | 0.3696 | 1315.8 | 381.4 | |
| 9.19 | -1.00 | 4.91 | -1.00 | -17.62 | 328.69 | -20.05 | 119.87 | 0.3784 | 1225.3 | 999999 | |
| 8.32 | -1.00 | 4.46 | -1.00 | -18.13 | 328.49 | -20.24 | 120.86 | 0.3847 | 1215.9 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -16.77 | 328.65 | -20.08 | 117.77 | 0.3732 | 279.0 | 354.9 | |
| 1.21 | -1.00 | 0.65 | -1.00 | -18.51 | 328.21 | -20.52 | 121.44 | 0.3914 | 887.4 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.20 | -16.61 | 328.37 | -20.36 | 117.08 | 0.3761 | 543.0 | 540.3 | |
| 18.55 | -1.00 | 9.96 | -1.00 | -17.81 | 328.17 | -20.57 | 119.76 | 0.3870 | 1191.0 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -16.87 | 328.24 | -20.49 | 117.60 | 0.3797 | 629.0 | 405.9 | |
| 1.73 | -1.00 | 0.94 | -1.00 | -19.22 | 327.78 | -20.95 | 122.57 | 0.4024 | -842.5 | 999999 | |
| 22.11 | -1.00 | 11.91 | -1.00 | -18.25 | 327.78 | -20.96 | 120.37 | 0.3955 | 1041.3 | 999999 | |
| 3.64 | -1.00 | 1.96 | -1.00 | -17.88 | 327.62 | -21.11 | 119.36 | 0.3951 | 1030.3 | 999999 | |
| 3.81 | -1.00 | 2.06 | -1.00 | -18.44 | 327.31 | -21.42 | 120.33 | 0.4032 | 498.2 | 999999 | |
| 8.50 | -1.00 | 4.59 | -1.00 | -17.80 | 327.16 | -21.57 | 118.71 | 0.4009 | 885.9 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -20.37 | 326.73 | -22.00 | 123.89 | 0.4249 | 677.0 | 534.2 | |
| 0.00 | 1.39 | 0.00 | 0.75 | -17.72 | 326.90 | -21.83 | 118.30 | 0.4041 | 478.0 | 520.5 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -16.42 | 326.93 | -21.81 | 115.29 | 0.3958 | 796.0 | 689.4 | |
| 2.77 | -1.00 | 1.50 | -1.00 | -17.99 | 326.66 | -22.07 | 118.67 | 0.4091 | 558.9 | 999999 | |
| 0.00 | 2.69 | 0.00 | 1.47 | -19.58 | 326.27 | -22.47 | 121.77 | 0.4253 | 320.0 | 221.0 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -17.79 | 326.42 | -22.32 | 118.01 | 0.4113 | 885.0 | 700.0 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -19.15 | 326.13 | -22.61 | 120.71 | 0.4242 | 186.0 | 121.9 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -15.92 | 326.55 | -22.18 | 113.79 | 0.3985 | 720.0 | 612.1 | |
| 0.78 | -1.00 | 0.42 | -1.00 | -18.09 | 326.24 | -22.49 | 118.51 | 0.4156 | 677.3 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -16.78 | 326.28 | -22.46 | 115.59 | 0.4072 | 762.0 | 632.0 | |
| 0.00 | 2.25 | 0.00 | 1.23 | -19.08 | 325.90 | -22.84 | 120.33 | 0.4268 | -488.0 | -501.2 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -19.47 | 325.84 | -22.90 | 121.11 | 0.4303 | -760.0 | -560.8 | |
| 0.00 | 2.08 | 0.00 | 1.13 | -17.62 | 326.07 | -22.67 | 117.32 | 0.4151 | 716.0 | 597.0 | |
| 0.00 | 1.56 | 0.00 | 0.85 | -16.44 | 326.05 | -22.68 | 114.61 | 0.4086 | 877.0 | 580.2 | |
| 2.34 | 7.28 | 1.29 | 4.01 | -19.63 | 325.37 | -23.37 | 121.00 | 0.4377 | -1030.8 | -665.5 | |
| 3.21 | 40.14 | 1.76 | 21.94 | -18.20 | 325.48 | -23.26 | 118.08 | 0.4269 | -975.1 | 29.1 | |
| 18.03 | -29.00 | 9.85 | -29.00 | -17.81 | 325.50 | -23.24 | 117.23 | 0.4242 | 997.2 | 999999 | |
| 0.69 | 3.47 | 0.38 | 1.90 | -18.24 | 325.06 | -23.67 | 117.81 | 0.4330 | 585.5 | 361.2 | |
| 0.00 | 1.99 | 0.00 | 1.08 | -14.69 | 325.49 | -23.25 | 110.11 | 0.4083 | 726.0 | 616.8 | |
| 0.00 | 3.21 | 0.00 | 1.78 | -19.75 | 324.66 | -24.08 | 120.60 | 0.4480 | -963.0 | -817.6 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -19.56 | 324.62 | -24.12 | 120.19 | 0.4473 | -954.0 | -806.9 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -19.17 | 324.68 | -24.05 | 119.43 | 0.4439 | -486.0 | -311.4 | |
| 1.65 | 7.02 | 0.91 | 3.87 | -18.03 | 324.54 | -24.19 | 116.94 | 0.4389 | 791.3 | 619.9 | |
| 0.00 | 1.56 | 0.00 | 0.86 | -17.16 | 324.64 | -24.10 | 115.12 | 0.4327 | 731.0 | 561.4 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -20.09 | 324.18 | -24.55 | 120.88 | 0.4566 | 433.0 | 172.8 | |
| 2.43 | 9.02 | 1.35 | 5.01 | -19.67 | 324.22 | -24.52 | 120.05 | 0.4533 | -959.2 | -648.4 | |
| 1.21 | 8.84 | 0.67 | 4.88 | -18.56 | 324.19 | -24.55 | 117.77 | 0.4470 | -756.2 | -356.9 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -19.29 | 324.07 | -24.66 | 119.17 | 0.4529 | -354.0 | -321.6 | |
| 0.95 | -39.00 | 0.53 | -39.00 | -19.52 | 323.79 | -24.94 | 119.40 | 0.4582 | -806.7 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.97 | -19.39 | 323.57 | -25.17 | 118.95 | 0.4603 | -818.0 | -683.2 | |
| 0.87 | 112.10 | 0.48 | 62.70 | -18.63 | 323.62 | -25.11 | 117.45 | 0.4551 | -1160.0 | -311.3 | |
| 0.78 | -44.00 | 0.43 | -44.00 | -18.95 | 323.43 | -25.30 | 117.96 | 0.4596 | -977.7 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.25 | -17.92 | 323.56 | -25.17 | 115.95 | 0.4520 | 543.0 | 525.9 | |
| 0.87 | -44.00 | 0.48 | -44.00 | -18.42 | 323.14 | -25.60 | 116.65 | 0.4606 | 673.6 | 999999 | |
| 1.04 | -44.00 | 0.58 | -44.00 | -19.44 | 322.89 | -25.84 | 118.53 | 0.4698 | -509.3 | 999999 | |
| 9.19 | -44.00 | 5.14 | -44.00 | -18.98 | 322.90 | -25.83 | 117.62 | 0.4670 | -999.7 | 999999 | |
| 2.51 | -44.00 | 1.41 | -44.00 | -18.57 | 322.66 | -26.08 | 116.62 | 0.4681 | 253.2 | 999999 | |
| 1.65 | -44.00 | 0.93 | -44.00 | -19.42 | 322.51 | -26.22 | 118.20 | 0.4748 | 772.3 | 999999 | |
| 0.95 | -44.00 | 0.54 | -44.00 | -19.82 | 322.44 | -26.30 | 118.91 | 0.4781 | 914.7 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.22 | -20.05 | 322.29 | -26.44 | 119.26 | 0.4815 | 769.0 | 645.5 | |
| 5.98 | -44.00 | 3.36 | -44.00 | -19.05 | 322.44 | -26.30 | 117.41 | 0.4737 | 1043.2 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.37 | -19.38 | 322.24 | -26.50 | 117.91 | 0.4783 | 890.0 | 693.2 | |
| 0.00 | 1.39 | 0.00 | 0.79 | -20.19 | 322.02 | -26.72 | 119.32 | 0.4859 | 948.0 | 746.6 | |
| 0.00 | 1.39 | 0.00 | 0.78 | -19.79 | 321.99 | -26.75 | 118.52 | 0.4840 | 459.0 | 338.2 | |
| 5.64 | 13.87 | 3.20 | 7.89 | -20.57 | 321.66 | -27.08 | 119.76 | 0.4929 | 910.7 | 664.6 | |
| 0.61 | 2.08 | 0.34 | 1.18 | -20.17 | 321.70 | -27.04 | 119.05 | 0.4900 | 963.4 | 791.7 | |
| 2.08 | 5.90 | 1.19 | 3.37 | -20.92 | 321.23 | -27.50 | 120.09 | 0.5006 | 653.5 | 238.6 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -20.76 | 321.16 | -27.58 | 119.74 | 0.5006 | 302.0 | 272.9 | |
| 0.00 | 1.56 | 0.00 | 0.89 | -20.54 | 321.13 | -27.61 | 119.32 | 0.4997 | 519.0 | 409.8 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -17.09 | 321.22 | -27.52 | 112.72 | 0.4808 | 724.0 | 602.2 | |
| 0.00 | 1.99 | 0.00 | 1.15 | -21.61 | 320.36 | -28.37 | 120.71 | 0.5159 | -823.0 | -634.4 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -21.24 | 320.34 | -28.40 | 120.02 | 0.5141 | 265.0 | 23.4 | |
| 0.00 | 3.99 | 0.00 | 2.26 | -17.63 | 320.95 | -27.79 | 113.62 | 0.4869 | -815.0 | -680.7 | |
| 4.59 | 7.28 | 2.62 | 4.16 | -18.97 | 320.53 | -28.20 | 115.97 | 0.4991 | -1012.0 | -740.7 | |
| 0.61 | 1.73 | 0.34 | 0.98 | -17.95 | 320.72 | -28.02 | 114.11 | 0.4916 | -1108.7 | -911.1 | |
| 4.68 | 18.12 | 2.67 | 10.32 | -18.11 | 320.33 | -28.40 | 114.20 | 0.4977 | -947.3 | -730.6 | |
| 19.33 | 145.13 | 11.22 | 84.47 | -21.03 | 319.47 | -29.27 | 119.06 | 0.5242 | -1302.9 | -444.5 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -19.75 | 319.73 | -29.00 | 116.92 | 0.5138 | -506.0 | -603.3 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -20.39 | 319.53 | -29.20 | 117.95 | 0.5198 | -849.0 | -677.2 | |
| 7.54 | -70.00 | 4.40 | -70.00 | -21.39 | 319.24 | -29.49 | 119.54 | 0.5290 | -877.3 | 999999 | |
| 11.88 | -70.00 | 6.92 | -70.00 | -20.95 | 319.08 | -29.65 | 118.66 | 0.5287 | -944.3 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.81 | -20.59 | 318.79 | -29.94 | 117.84 | 0.5305 | -717.0 | -668.7 | |
| 9.97 | 214.49 | 5.76 | 124.81 | -18.77 | 319.10 | -29.64 | 114.72 | 0.5176 | -1206.0 | -354.4 | |
| 1.65 | -70.00 | 0.96 | -70.00 | -20.86 | 318.62 | -30.11 | 118.21 | 0.5341 | -743.5 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.76 | -20.43 | 318.72 | -30.02 | 117.51 | 0.5307 | -810.0 | -646.5 | |
| 0.00 | 1.47 | 0.00 | 0.86 | -20.63 | 318.45 | -30.28 | 117.71 | 0.5352 | -631.0 | -406.8 | |
| 10.92 | -76.00 | 6.36 | -76.00 | -19.60 | 318.64 | -30.10 | 115.97 | 0.5276 | -943.6 | 999999 | |
| 26.88 | -76.00 | 15.65 | -76.00 | -19.09 | 318.45 | -30.29 | 114.96 | 0.5278 | -1108.2 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.46 | -18.46 | 317.59 | -31.15 | 113.36 | 0.5366 | -449.0 | -390.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
